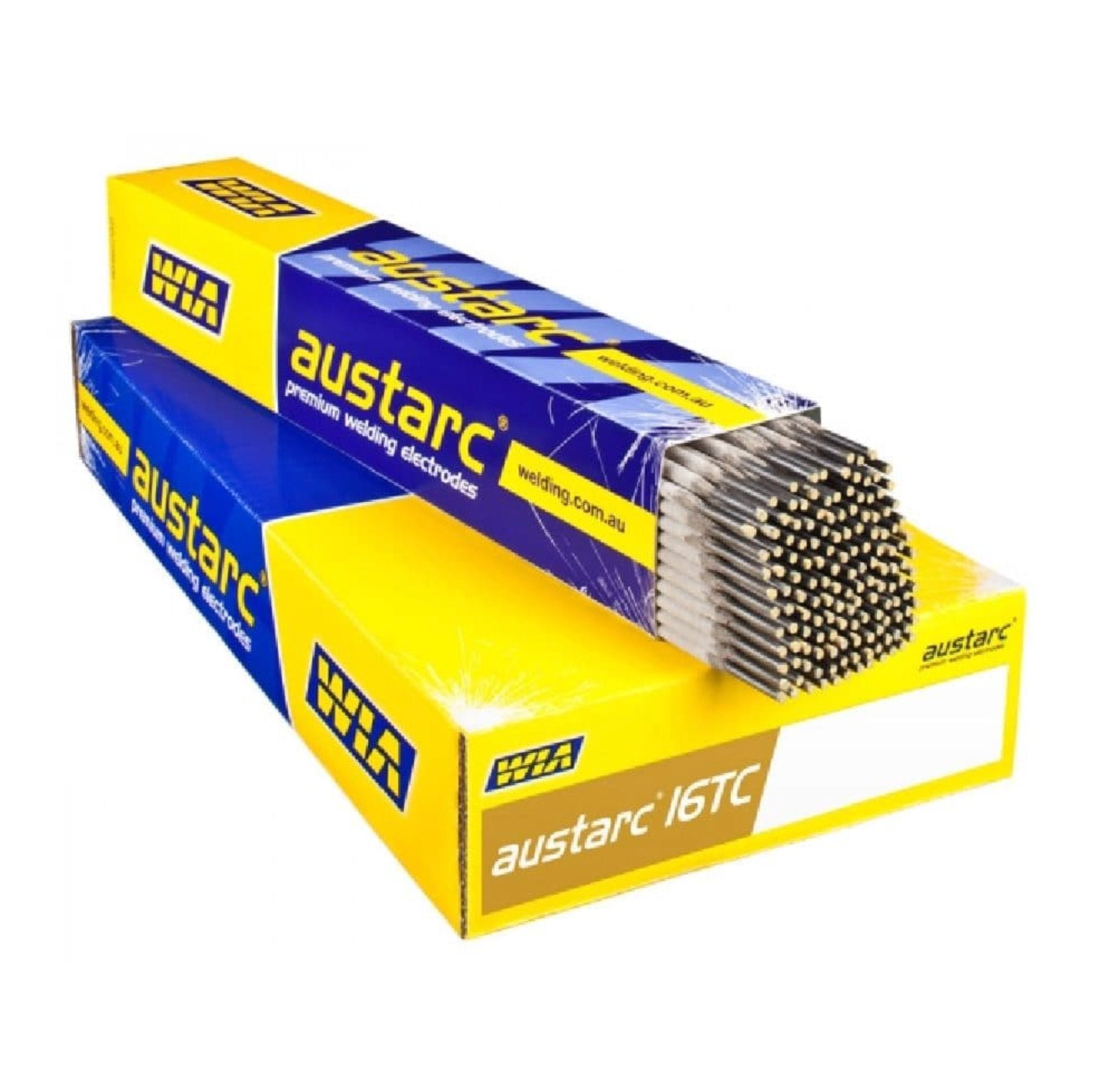

WIA - 16TC32 3.2mm x 380mm // 5kg Austarc Hydrogen Controlled Welding Electrodes

WIA  |  SKU: 16TC32
$8700

On Time, Every Time – Reliable Delivery Guaranteed

Secure Payments: Shop with Confidence

100% Happiness Guarantee

Description

WIA – 16TC32 3.2mm x 380mm – 5kg Austarc Hydrogen Controlled Welding Electrodes

Smooth running, basic low hydrogen electrode, developed for all positional (except vertical down) welding, using AC or DC power sources.

It has exceptional arc stability and weldability and delivers high quality weld deposits with reliable notch toughness to -40°C.

Austarc 16TC is manufactured using a unique twin coating extrusion process, which means all the arc stabilising elements are concentrated in the inner coating.

This delivers significantly improved arc stability and control for all applications.

Typical Applications:

The ideal hydrogen controlled electrode for welding carbon, carbon-manganese and low alloy high strength steels used in a multitude of critical and non-critical applications.

Typical applications include pipe welding, single sided weld joints, highly restrained joints, maintenance applications, buffer layer prior to hard surfacing build-up, structural steel and sub zero temperature applications.

Applications:

  • Sub Zero Temperature Applications
  • Structural Steel
  • Single Sided Weld Joints
  • Pipe Welding
  • Maintenance Applications
  • Highly Restrained Joints
  • Buffer Layer Prior to Hard Surfacing Build-Up

Specifications:

  • Electrode Size: 3.2mm
  • Electrode Length: 380mm
  • Welding Current Range: 90 - 135A
  • Yeild Stress: 460MPa
  • Tensile Strength: 560 MPa
  • Elongation: 28%
  • CVN Impact Values: 130J @ -20°C, 110J @ -40°C
  • Packet Weight: 5kg
  • Approx No. of Rods per kg: 29

Processes:

  • SMAW
  • MMAW

Classification:

  • AS/NZS 4855-B - E49 16 A U H10
  • AWS A5.1: E7016 H8

Materials to be Welded:

  • Structural Steel
    • AS 1163
      • C250, C350, C450
    • AS 1397
      • G250, G300, G350, G450
    • AS 1450
      • C/H200, C/H250, C/H350, C/H450
    • AS/NZS 3679.1
      • 250, 300, 350, 400
    • AS/NZS 3678.1 & AS/NZS3679.2
      • 200, 250, 300, 350, 400, 450, A1006, XK1016, WR350
  • Pressure Equipment Steel
    • AS 1548
      • 7-430, 7-460, 5-590, 7-490
  • Fine Grain Steel
    • AS/NZS 1594
      • HAI, HA3, HA4N, HA200, HA250, HA300, HA1006, HA1010, HA1016, HA350, HA400
  • Cast Steel
    • AS/NZS 1594
      • HAI, HA3, HA4N, HA200, HA250, HA300, HA1006, HA1010, HA1016, HA350, HA400
  • Pipe Material
    • API 5LX
      • X42, X46, X52, X60
