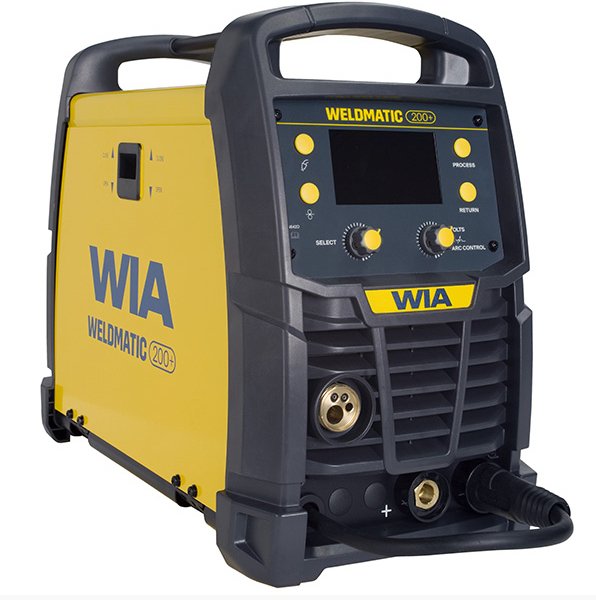

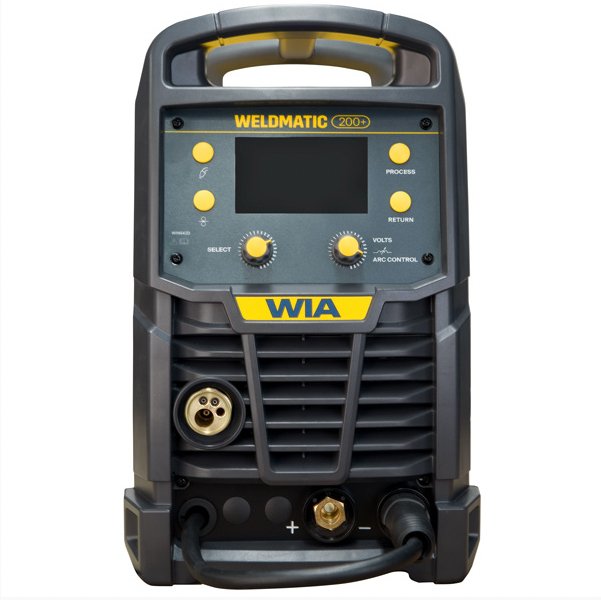

Weldmatic 200+ Multi-Process Welder, CP142-1
Weldmatic 200+ is a WIA multi-process welder designed for workshop, site & trade welding applications. Portable all-in-one welder for workshop or on-site use. Digital LCD interface supports quick setup with pre-set parameters and memory selection. ► Key Features... Read More
Vendor: WIA
SKU: CP142-1
Product type: MIG & Multifunctional Welders
$1,850.00
$0.00
$1,850.00
Subtotal: $1,850.00

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Weldmatic 200+ is a WIA multi-process welder designed for workshop, site & trade welding applications.

Portable all-in-one welder for workshop or on-site use. Digital LCD interface supports quick setup with pre-set parameters and memory selection.

► Key Features

  • Portable all-in-one welder for workshop or on-site use.

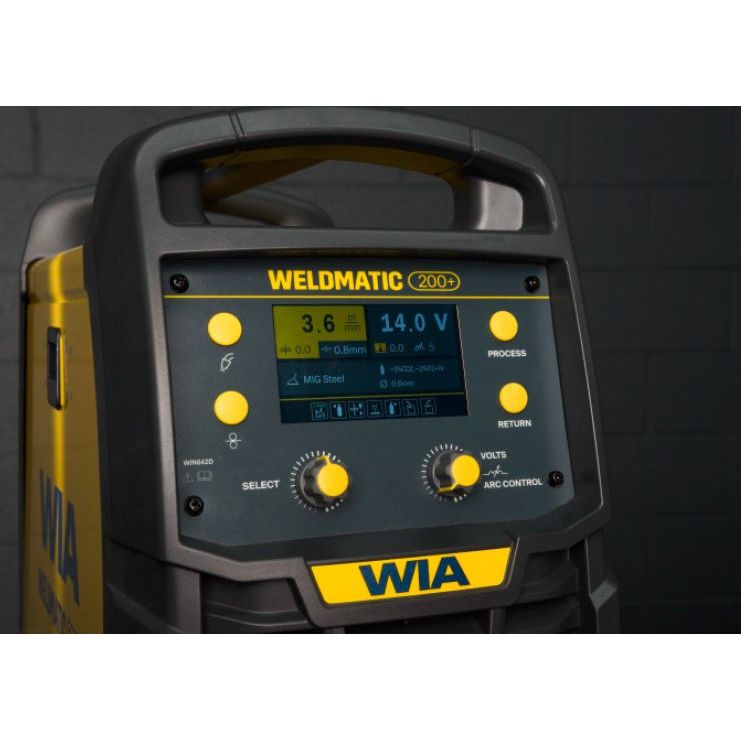

  • Digital LCD interface supports quick setup with pre-set parameters and memory selection.
  • Integrated wire feeder takes 1kg and 5kg spools for gas-shielded and gasless wires.

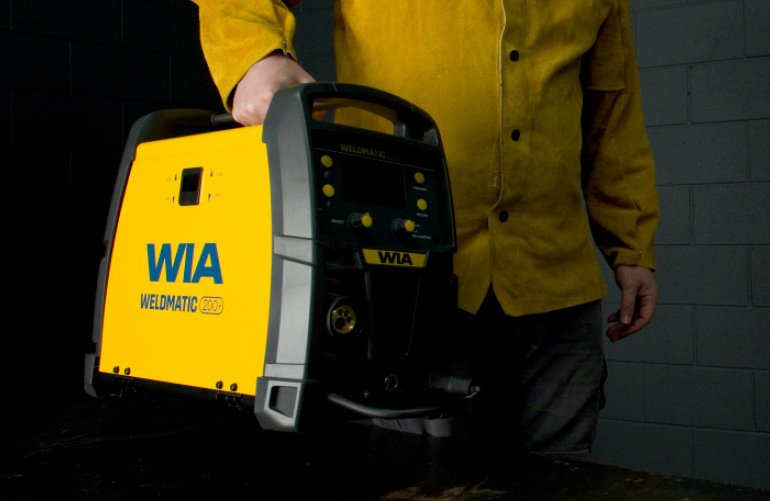

  • 17kg carry weight supports portability for intermediate and professional welders.
  • Backed by a 3 year warranty.

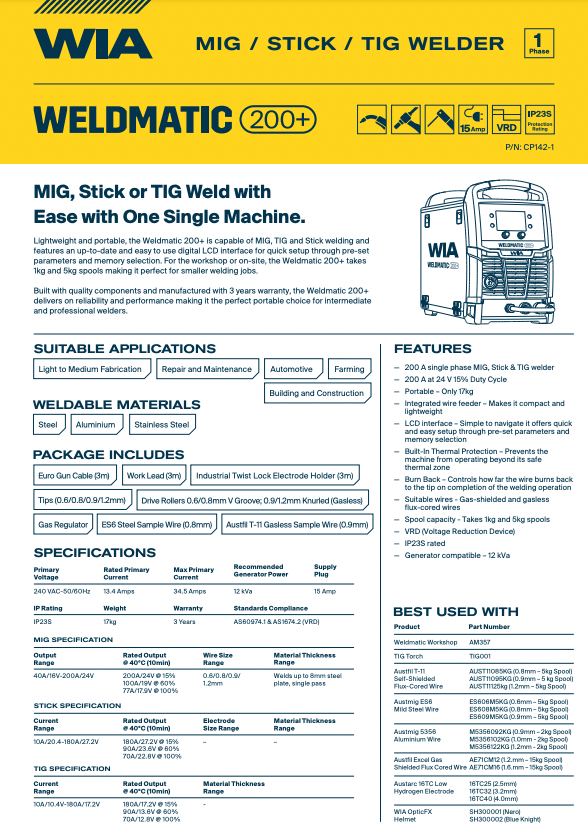

► Technical Specifications

  • SKU: CP142-1
  • Official Website Categories: Equipment | Multi-Process
  • Website Match: Exact SKU Search Match
  • Process: Multi Process
  • Supply Plug: 15 Amp
  • Power Voltage: 240V
  • Safety Rating: IP23S
  • Max Material Thickness: Up to 8mm
  • Weldable Materials: Steel, Stainless Steel, Aluminium
  • VRD: Yes
  • Warranty: 3 Years
  • Primary Voltage: 240 VAC-50/60Hz
  • Rated Primary Current: 13.4 Amps
  • Max Primary Current: 34.5 Amps
  • Recommended Generator Power: 8.3 kVa
  • Stick Current Range: 10A/20.4-180A/27.2V
  • Stick Rated Output @ 40°C (10min): 180A/27.2V @ 15%; 90A/23.6V @ 60%; 70A/22.8V @ 100%
  • MIG Output Range: 40A/16V-200A/24V
  • MIG Rated Output @ 40°C (10min): 200A/24V @ 15%; 100A/19V @ 60%; 77A/17.9V @ 100%
  • MIG Wire Size Range: 0.6/0.8/0.9/1.2mm
  • MIG Material Thickness Range: Welds up to 8mm steel plate, single pass
  • TIG Current Range: 10A/10.4V-180A/17.2V
  • TIG Rated Output @ 40°C (10min): 180A/17.2V @ 15%; 90A/13.6V @ 60%; 70A/12.8V @ 100%
  • Includes Euro Gun Cable: 3m
  • Includes Work Lead: 3m
  • Includes Industrial Twist Lock Electrode Holder: 3m
  • Includes Gas Regulator: Included
  • Includes ES6 Steel Sample Wire: 0.8mm
  • Includes Austfil T-11 Gasless Sample Wire: 0.9mm
  • Includes Drive Rollers: 0.6/0.8mm V Groove; 0.9/1.2mm Knurled (Gasless)
  • Includes Tips: 0.6/0.8/0.9/1.2mm

► Applications & Buyer Fit

This machine suits intermediate and professional buyers who need portable multi-process performance, a digital LCD interface and support for 1kg and 5kg wire spools.
