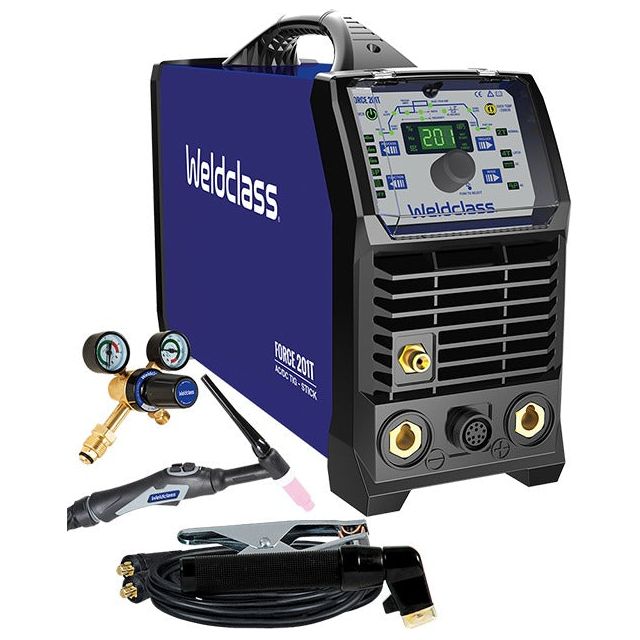

Weldclass - Welder TIG AC/DC Pulse FORCE 201T | WF-06172
- $1,898.50
$0.00- $1,898.50
- Unit price
- per
Vendor:
Weldclass
SKU:
WF-06172
Compact 8kg AC/DC pulse TIG welder for aluminium, steel and stainless, with Stick/MMA capability. Also known as Weldforce 201T. Supplied with an 8m #26 remote-control TIG torch and a 15A plug fitted. Weldclass is a 100% Australian-owned company whose products are developed...
Read moreRead less
Weldclass - Welder TIG AC/DC Pulse FORCE 201T | WF-06172
Compact 8kg AC/DC pulse TIG welder for aluminium, steel and stainless, with Stick/MMA capability. Also known as Weldforce 201T. Supplied with an 8m #26 remote-control TIG torch and a 15A plug fitted. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.
► Key Features
- 200A max output (AC) @ 30% duty cycle; TIG (AC/DC) and Stick/MMA up to 4mm electrodes
- HF or Lift-Arc ignition
- Pulse frequency 0.2-200Hz with pulse width adjustment; slope up/down and pre/post-gas controls
- AC balance -5 (25% / max penetration) to +5 (50% / max cleaning)
- LCD digital controls; remote current adjustment on the torch handle
- IP23 protection; stress-tested to 440V
- Weighs only 8kg; generator compatible, min 8kVA, ideal 10kVA+
- Fitted with 15A 240V plug; optional foot controller
- Genuine Weldclass product
► Technical Specifications
- Model / SKU: WF-06172
- Max output: 200A (AC) @ 30% duty cycle
- Max tungsten size: 3.2mm
- Stick electrodes: Up to 4mm
- Ignition: HF or Lift Arc
- Pulse frequency: 0.2-200Hz
- Slope up/down: 0-10s
- Pre-gas: 0-2s
- Post-gas: 0-10s
- AC frequency: 50Hz
- AC balance: -5 (25% / max penetration) to +5 (50% / max cleaning)
- Protection: IP23
- Input plug: 15A 240V fitted
- Generator: Min 8kva, ideal 10kva+
- Weight: 8kg
- Warranty: 2 years standard; 7 years extended with online registration
- Includes: TIG torch #26 Flexi 8m (remote control); earth lead 4m; stick lead 4m; gas regulator; shoulder strap; cable strap; power input lead 3m with 15A plug fitted; parts kit and tungstens 1.6, 2.4, 3.2mm
- Brand: Weldclass
► Why Tradies Grab This
AC/DC output lets you TIG aluminium as well as steel and stainless from an 8kg unit, and the torch-handle remote adjusts current without leaving the weld.
► Industrial Shed’s Trade Guarantee – Shop with Confidence
- Genuine Product: 100% genuine Weldclass welding gear.
- Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
- Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
- Expert Support: Real trade counter people who know welding — call 03 5978 0078.
► Stock won’t last—get yours now at Industrial Shed!
- Product weight
- 15000 g
- Warranty
- 7 years (conditional, registration required)
- Material
- Aluminium
- Category
- Welders - StickMMA & TIG
Shipping calculated at checkout
Enter your delivery address at checkout to see the cost.
Product specifications
- Category
- Welders - StickMMA & TIG
- Material
- Aluminium
- Product weight
- 15000 g
- Length
- 620 mm
- Width
- 370 mm
- Height
- 370 mm
- Warranty
- 7 years (conditional, registration required)
- Barcode
- 9341562061728
- Voltage
- 240V
-
