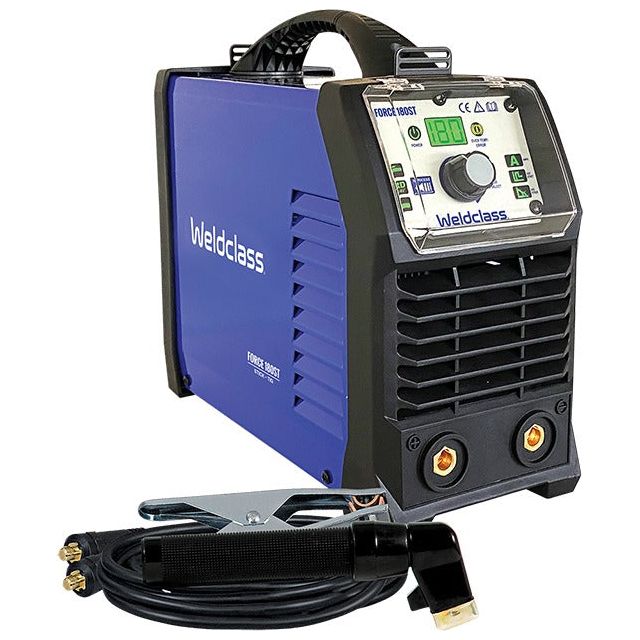

Weldclass - Stick/TIG Welder FORCE 180ST Standard Package | WF-06171
- $459.00
$0.00- $459.00
- Unit price
- per
Vendor:
Weldclass
SKU:
WF-06171
FORCE 180ST compact 180A inverter welder for Stick/MMA and DC lift-arc TIG, weighing just 4.5kg. Standard package runs electrodes up to 4.0mm off a standard 15A plug. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal...
Read moreRead less
Weldclass - Stick/TIG Welder FORCE 180ST Standard Package | WF-06171
FORCE 180ST compact 180A inverter welder for Stick/MMA and DC lift-arc TIG, weighing just 4.5kg. Standard package runs electrodes up to 4.0mm off a standard 15A plug. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.
► Key Features
- Stick/MMA and TIG (lift-arc) functions
- 180A max output @ 18% duty cycle
- Weighs only 4.5kg
- Welds with electrodes up to 4.0mm
- LCD digital meter
- Adjustable hot start and arc force
- Optional VRD (supplied with VRD not active; can be activated by an authorised agent/distributor)
- Generator compatible - min 8kVA, ideal 10+kVA
- Stress-tested to 440V with over-specified componentry
- Genuine Weldclass product
► Technical Specifications
- Model / SKU: WF-06171
- Package: Standard Package
- Output / Duty Cycle (40°C): 180A @ 18%, 99A @ 60%, 76A @ 100%
- Electrode Size Capacity: ≤ 4.0mm
- OCV: 75V (VRD on 13.5V)
- Power Supply: ~240V 1-Phase
- Plug: 15A 240V fitted
- Standard: AS 60974.5
- Dimensions: L290 x W135 x H270mm
- Weight: 4.5 kg
- Warranty: Standard 2 years; 7 years with online registration after purchase
- Includes: Earth lead 4m; stick lead 4m; shoulder strap; cable strap; power input lead 3m with 15A plug fitted
- Brand: Weldclass
► Why Tradies Grab This
Light enough to carry up a ladder or over a shoulder, and it plugs into a standard 15A power point. A solid choice for site repairs with Stick, with lift-arc TIG when you add a torch and regulator.
► Industrial Shed’s Trade Guarantee – Shop with Confidence
- Genuine Product: 100% genuine Weldclass welding gear.
- Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
- Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
- Expert Support: Real trade counter people who know welding — call 03 5978 0078.
► Stock won’t last—get yours now at Industrial Shed!
- Product weight
- 12500 g
- Warranty
- 7 years (conditional, registration required)
- Material
- Copper
- Category
- Welders - StickMMA & TIG
Shipping calculated at checkout
Enter your delivery address at checkout to see the cost.
Product specifications
- Category
- Welders - StickMMA & TIG
- Material
- Copper
- Product weight
- 12500 g
- Length
- 400 mm
- Width
- 250 mm
- Height
- 280 mm
- Warranty
- 7 years (conditional, registration required)
- Barcode
- 9341562061711
- Voltage
- 240V
-
