Weldclass - Welder MIG/Stick/TIG FORCE 205MST | WF-06166
Weldclass - Welder MIG/Stick/TIG FORCE 205MST | WF-06166

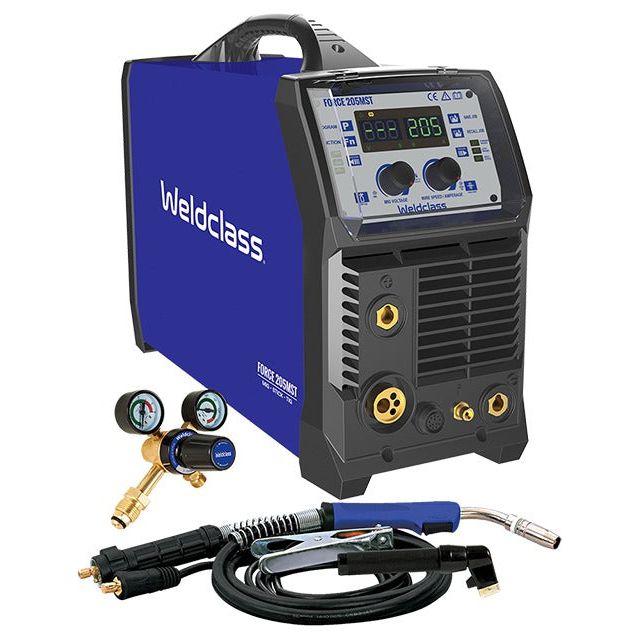

Weldclass - FORCE 205MST MIG / Stick / TIG Welder | WF-06166

$1,890.00
$0.00
$1,890.00
Vendor: Weldclass
SKU: WF-06166

Portable multi-function inverter welder for MIG (gas or gasless), Stick/MMA and Lift-Arc TIG, rated 200A max MIG output at 30% duty cycle. Runs manual or synergic and is built to cope with long extension leads and generators. Weldclass is a 100% Australian-owned...

Read moreRead less

Weldclass - FORCE 205MST MIG / Stick / TIG Welder | WF-06166

Portable multi-function inverter welder for MIG (gas or gasless), Stick/MMA and Lift-Arc TIG, rated 200A max MIG output at 30% duty cycle. Runs manual or synergic and is built to cope with long extension leads and generators. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.

► Key Features

  • 200A max MIG output @ 30% duty cycle, weld up to 10mm mild steel (max MIG capacity)
  • Power Factor Correction (PFC) for reduced power draw and increased duty cycle, suits long leads and generators
  • Manual or Synergic mode with 20+ pre-set programs
  • Job Save stores custom settings for up to 20 jobs
  • Geared wire drive system, takes 1kg (D100mm) or 5kg (D200mm) spools
  • Generator compatible - min 8kVA, ideal 10+kVA
  • Optional Stick/MMA VRD function (supplied with VRD not active, can be activated by an authorised agent/distributor)
  • Fitted with 15A 240V plug, weighs 17kg
  • Genuine Weldclass product

► Technical Specifications

  • Model / SKU: WF-06166
  • MIG Output / Duty Cycle (40°C): 200A @ 30%, 145A @ 60%, 110A @ 100%
  • Stick / TIG Output / Duty Cycle: 200A @ 25%
  • Input: ~240V 1-Phase
  • Plug: 15A 240V fitted
  • Wire Sizes: 0.6/0.8/0.9/1.0 Solid; 0.8/0.9/1.2 Gasless
  • Spool Sizes: 1kg (D100mm) or 5kg (D200mm)
  • Max MIG Capacity: 10mm mild steel
  • Weight: 17kg
  • Dimensions: L550 x W215 x H415
  • Standard: AS 60974.1
  • Warranty: 7 years* (standard warranty 2 years, extended 7 years if registered online)
  • Includes: MIG Torch H/Duty BZL 25 4m; Earth Lead 4m; Stick Lead 4m; Gas Regulator; Drive Roller for 0.8/0.9mm steel/solid wire; Drive Roller for 0.8/0.9mm gasless wire; Drive Roller for 1.0/1.2mm aluminium wire; Cable Retaining Strap; Long Power Lead 3m
  • Brand: Weldclass

► Why Tradies Grab This

One machine covers MIG, gasless, Stick and lift-TIG on a standard 15A 240V supply, with PFC and generator compatibility for site work and long leads.

► Industrial Shed’s Trade Guarantee – Shop with Confidence

  • Genuine Product: 100% genuine Weldclass welding gear.
  • Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
  • Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
  • Expert Support: Real trade counter people who know welding — call 03 5978 0078.

► Stock won’t last—get yours now at Industrial Shed!

Product weight
25000 g
Warranty
7 years (conditional, registration required)
Material
Copper
Category
Welders - MIG & Multifuncional
Request a freight quote

Confirm delivery costs before you order.

Subtotal: $1,890.00
Product weight
25000 g
Product size
19

Get a freight quote

Send us your delivery details. Our team will email you a confirmed freight price.

Selected product and quantity

Enter four digits to find suburbs.

Where is it going?

We’ll use this to reply to your freight request.

No payment required. A freight request does not reserve stock, place an order or change your cart.
Product specifications
Category
Welders - MIG & Multifuncional
Material
Copper
Product weight
25000 g
Length
660 mm
Width
430 mm
Height
510 mm
Warranty
7 years (conditional, registration required)
Barcode
9341562061667
Voltage
240V

  • On time, every time

    Delivery across Australia, with tracking sent after dispatch. Ordering a large or heavy item? Ask our team to confirm freight costs and delivery arrangements before you buy.

    Delivery information

  • Secure payments

    Pay through our secure checkout with the card and express payment options available for your order. Review your items, delivery charges and total before confirming payment.

  • 100% happiness guarantee

    Need help after your purchase? Contact our Somerville team with your order number. We can help with product issues and explain your return options, including conditions and exclusions.

    Returns and support
Description

Weldclass - FORCE 205MST MIG / Stick / TIG Welder | WF-06166

Portable multi-function inverter welder for MIG (gas or gasless), Stick/MMA and Lift-Arc TIG, rated 200A max MIG output at 30% duty cycle. Runs manual or synergic and is built to cope with long extension leads and generators. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.

► Key Features

  • 200A max MIG output @ 30% duty cycle, weld up to 10mm mild steel (max MIG capacity)
  • Power Factor Correction (PFC) for reduced power draw and increased duty cycle, suits long leads and generators
  • Manual or Synergic mode with 20+ pre-set programs
  • Job Save stores custom settings for up to 20 jobs
  • Geared wire drive system, takes 1kg (D100mm) or 5kg (D200mm) spools
  • Generator compatible - min 8kVA, ideal 10+kVA
  • Optional Stick/MMA VRD function (supplied with VRD not active, can be activated by an authorised agent/distributor)
  • Fitted with 15A 240V plug, weighs 17kg
  • Genuine Weldclass product

► Technical Specifications

  • Model / SKU: WF-06166
  • MIG Output / Duty Cycle (40°C): 200A @ 30%, 145A @ 60%, 110A @ 100%
  • Stick / TIG Output / Duty Cycle: 200A @ 25%
  • Input: ~240V 1-Phase
  • Plug: 15A 240V fitted
  • Wire Sizes: 0.6/0.8/0.9/1.0 Solid; 0.8/0.9/1.2 Gasless
  • Spool Sizes: 1kg (D100mm) or 5kg (D200mm)
  • Max MIG Capacity: 10mm mild steel
  • Weight: 17kg
  • Dimensions: L550 x W215 x H415
  • Standard: AS 60974.1
  • Warranty: 7 years* (standard warranty 2 years, extended 7 years if registered online)
  • Includes: MIG Torch H/Duty BZL 25 4m; Earth Lead 4m; Stick Lead 4m; Gas Regulator; Drive Roller for 0.8/0.9mm steel/solid wire; Drive Roller for 0.8/0.9mm gasless wire; Drive Roller for 1.0/1.2mm aluminium wire; Cable Retaining Strap; Long Power Lead 3m
  • Brand: Weldclass

► Why Tradies Grab This

One machine covers MIG, gasless, Stick and lift-TIG on a standard 15A 240V supply, with PFC and generator compatibility for site work and long leads.

► Industrial Shed’s Trade Guarantee – Shop with Confidence

  • Genuine Product: 100% genuine Weldclass welding gear.
  • Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
  • Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
  • Expert Support: Real trade counter people who know welding — call 03 5978 0078.

► Stock won’t last—get yours now at Industrial Shed!
