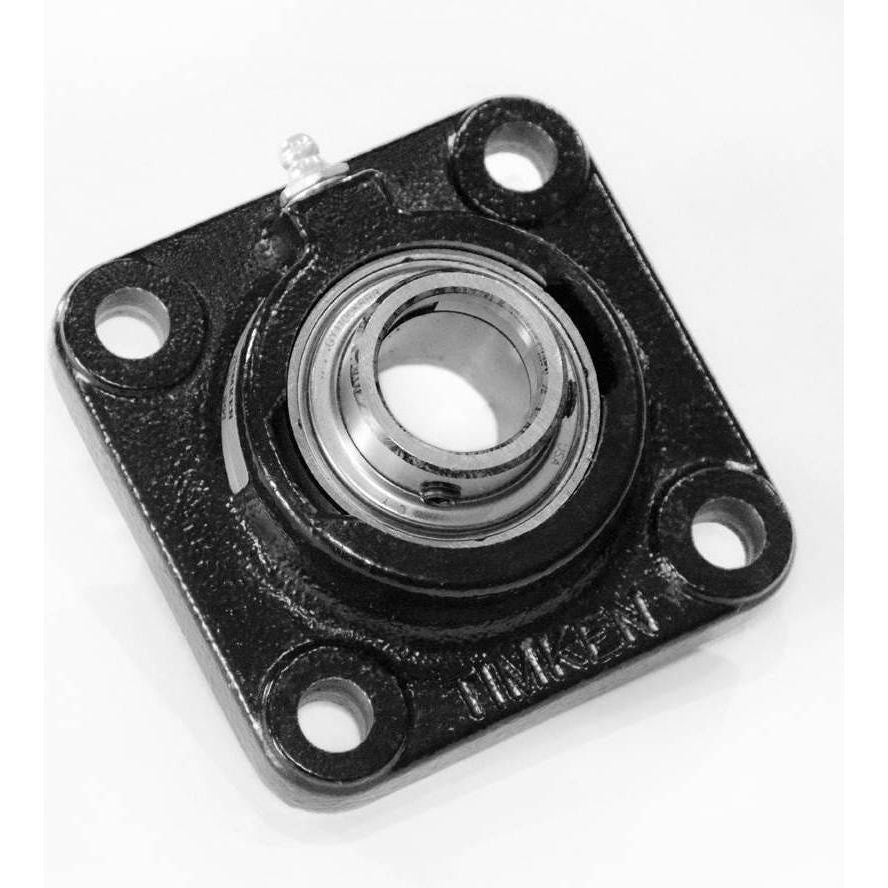

Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking - Shaft Size 2 3/16in | YCJM2.3/16
Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking - Shaft Size 2 3/16in | YCJM2.3/16
2 customers are viewing this product

Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking - Shaft Size 2 3/16" | YCJM2.3/16

Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking - Shaft Size 2 3/16in | YCJM2.3/16 Overview: The Timken - Fafnir® Four-Bolt Flanged Mounted Bearings are designed for medium-duty applications requiring superior performance and durability. Ideal for use... Read More
Vendor: Timken
SKU: YCJM2.3/16
$798.96
$798.96
Subtotal: $798.96

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking - Shaft Size 2 3/16in | YCJM2.3/16

Overview:

The Timken - Fafnir® Four-Bolt Flanged Mounted Bearings are designed for medium-duty applications requiring superior performance and durability. Ideal for use in machinery, conveyors, and industrial systems, these bearings offer efficient operation and robust sealing capabilities. The setscrew locking mechanism ensures secure attachment to the shaft, minimizing the risk of slippage.

With a shroud seal design to keep contaminants out, these bearings are built to handle challenging conditions and high load applications, making them an excellent choice for demanding industrial environments.

Why Buy from Industrial Shed?

  • Quality Assurance: At Industrial Shed, we provide only the highest quality industrial components, ensuring you get products that meet and exceed performance standards.
  • Fast Delivery: We offer swift delivery services to ensure your project stays on schedule.
  • Competitive Pricing: Get premium bearings at affordable prices without compromising quality.
  • Technical Support: Our team of experts is available to help with product selection, technical queries, and installation support.

Specifications:

  • Series: Medium-Duty
  • Bearing Number: GYM1203KRRB
  • Seal Type: Shroud Seal
  • Housing Construction: Four-Bolt Square Flange
  • Alternate Part Name: YCJM23/16

Dimensions:

  • Total Length L: 174.6 mm
  • Housing Width A: 49.2 mm
  • Bolt Hole Spacing: 142.9 mm
  • Bolt Hole Size N: 16 mm
  • Flange Thickness A1: 17.5 mm
  • Center of Bearing from Housing End A2: 35.2 mm
  • Inside Ring Width B: 65.07 mm
  • Dimension S1: 39.67 mm
  • Dimension D: 136.5 mm
  • Dimension E: 74.3 mm
  • Dimension F: 76.48 mm
  • Bolt Size: M16

Basic Load Ratings:

  • Static Load Rating: 35,900 N
  • Dynamic Load Rating: 58,200 N

Key Features:

  • Medium-duty series ideal for industrial applications with moderate load requirements.
  • Shroud seal to protect against contaminants and extend bearing life.
  • Four-bolt square flange housing for secure and easy mounting.
  • Setscrew locking mechanism ensures reliable connection to the shaft.
  • High static and dynamic load ratings make this bearing reliable for heavy-duty industrial operations.

For all your industrial bearing needs, choose Timken - Fafnir® Four-Bolt Flanged Mounted Bearings at Industrial Shed. With our commitment to quality, fast shipping, and excellent customer service, we are your trusted partner in industrial solutions.
