Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking - Shaft Size 2 15/16" | YCJM2.15/16

Timken - Fafnir® Four-Bolt Flanged Mounted Bearing – YCJM2.15/16 This medium-duty mounted bearing unit features a rugged four-bolt square flange housing and a setscrew locking mechanism for secure shaft attachment. The shroud seal design protects the bearing from... Read More
Vendor: Timken
SKU: YCJM2.15/16
$1,808.04
$1,808.04
Subtotal: $1,808.04

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

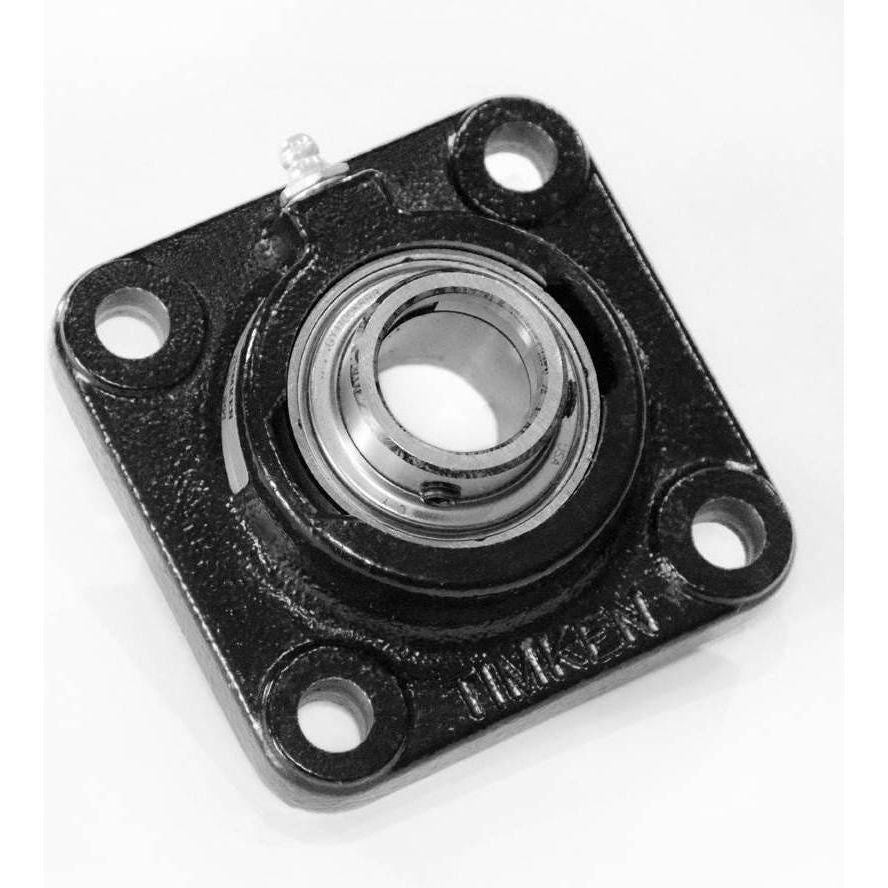

Timken - Fafnir® Four-Bolt Flanged Mounted Bearing – YCJM2.15/16

This medium-duty mounted bearing unit features a rugged four-bolt square flange housing and a setscrew locking mechanism for secure shaft attachment. The shroud seal design protects the bearing from contaminants, ensuring long-term durability in harsh industrial conditions. It includes the GYM1215KRRB bearing and supports a shaft size of 2 15/16".

Why Buy from Industrial Shed?

  • Trusted Brands: We carry genuine Timken components built for performance.
  • Expert Support: Guidance on product fit, specs, and compatibility.
  • Fast Fulfillment: Reduce downtime with our in-stock inventory and quick shipping.
  • Complete Specs: Know exactly what you’re buying with full technical transparency.

Specifications

  • Series: Medium-Duty
  • Bearing Number: GYM1215KRRB
  • Seal Type: Shroud Seal
  • Housing: Four-Bolt Square Flange
  • Alternate Part: YCJM215/16

Dimensions

  • Shaft Size: 2 15/16 in
  • Total Length (L): 196.8 mm
  • Housing Width (A): 66.7 mm
  • Bolt Hole Spacing: 152.4 mm
  • Bolt Hole Size (N): 20 mm
  • Flange Thickness (A1): 22.2 mm
  • Center of Bearing from Housing End (A2): 46.4 mm
  • Inside Ring Width (B): 77.8 mm
  • Dimension S1: 44.45 mm
  • Dimension D: 179.4 mm
  • Dimension E: 90.8 mm
  • Dimension F: 91.92 mm
  • Bolt Size: M20

Load Ratings

  • Static Load Rating: 54,200 N
  • Dynamic Load Rating: 79,400 N
