Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking - Shaft Size 1 15/16" | YCJM1.15/16

Timken - Fafnir® Four-Bolt Flanged Mounted Bearing – Shaft Size 1 15/16 in Built for demanding applications, the Timken – Fafnir® YCJM1.15/16 four-bolt flange unit features a durable shroud seal and medium-duty bearing construction for reliable operation in... Read More
Vendor: Timken
SKU: YCJM1.15/16
$681.91
$681.91
Subtotal: $681.91

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

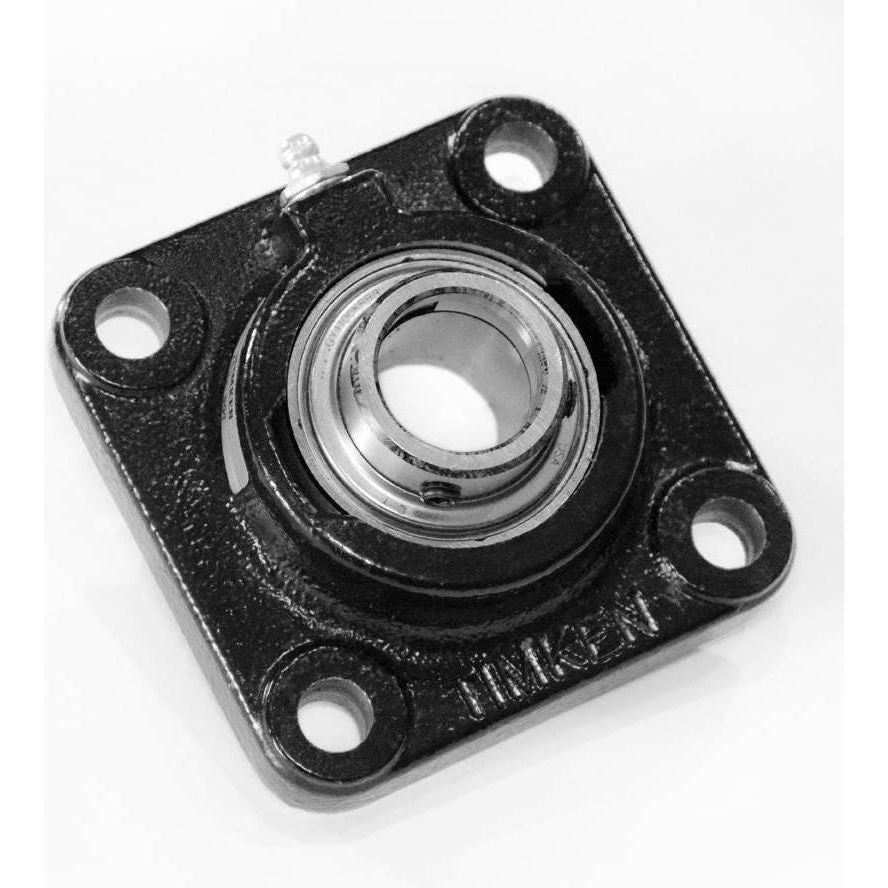

Timken - Fafnir® Four-Bolt Flanged Mounted Bearing – Shaft Size 1 15/16 in

Built for demanding applications, the Timken – Fafnir® YCJM1.15/16 four-bolt flange unit features a durable shroud seal and medium-duty bearing construction for reliable operation in harsh industrial environments. The setscrew locking mechanism ensures a secure fit on the shaft, while the robust housing provides stability under heavy loads.

Engineered to Timken’s exacting standards, this mounted bearing unit is ideal for conveyors, agricultural machinery, material handling equipment, and more. It offers exceptional performance, easy installation, and minimal maintenance.

Why Buy from Industrial Shed?

  • Genuine Timken Products – 100% authentic, direct from trusted suppliers.
  • Technical Support – Our team understands industrial components and can assist with fitment or specs.
  • Fast Shipping & Easy Returns – We keep stock moving to keep your operations running.
  • Industry-Focused – Specialized in industrial, mechanical, and MRO components.

Key Specifications

  • Series: Medium-Duty
  • Bearing Number: GYM1115KRRB
  • Seal Type: Shroud Seal
  • Housing Type: Four-Bolt Square Flange
  • Alternate Part Name: YCJM1.15/16
  • Shaft Size: 1 15/16 in
  • Locking Mechanism: Setscrew

Dimensions

  • Total Length (L): 161.9 mm
  • Housing Width (A): 46.8 mm
  • Bolt Hole Spacing: 130.2 mm
  • Bolt Hole Size (N): 16 mm
  • Flange Thickness (A1): 16.7 mm
  • Center of Bearing from Housing End (A2): 31.4 mm
  • Inside Ring Width (B): 55.55 mm
  • Dimension S1: 33.32 mm
  • Dimension D: 120.7 mm
  • Dimension E: 64.7 mm
  • Dimension F: 69.77 mm
  • Bolt Size: M16

Load Ratings

  • Static Load Rating: 29,200 N
  • Dynamic Load Rating: 48,100 N
