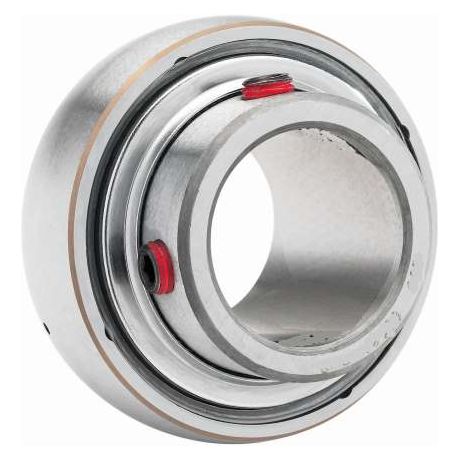

Timken - Fafnir® Wide Inner Ring Setscrew M5 x 0.8 Locking Ball Bearings - Shaft Size ⅝" | YA010RR
Timken - Fafnir® Wide Inner Ring Setscrew M5 x 0.8 Locking Ball Bearings - Shaft Size 5/8in | YA010RR The Timken - Fafnir® Wide Inner Ring Setscrew Locking Ball Bearing (YA010RR) is engineered for reliable and efficient performance... Read More
Vendor:
Timken
SKU:
YA010RR
- $82.50
- $82.50
- Unit price
- per
On Time, Every Time
Reliable delivery guaranteed.
Secure Payments
Shop with confidence.
100% Happiness Guarantee
Only at Industrial Shed.
Timken - Fafnir® Wide Inner Ring Setscrew M5 x 0.8 Locking Ball Bearings - Shaft Size 5/8in | YA010RR
The Timken - Fafnir® Wide Inner Ring Setscrew Locking Ball Bearing (YA010RR) is engineered for reliable and efficient performance in various mechanical applications. Featuring a cylindrical bore design and a narrow shroud seal, this bearing ensures a secure fit and protection against contaminants. With a shaft size of 5/8 inch, it is the ideal choice for applications requiring high load capacity and durability.
Designed with bearing steel, the Timken Fafnir® bearing offers exceptional strength and longevity. The non-relubricatable design ensures minimal maintenance, while the setscrew locking mechanism provides a robust and stable connection to the shaft. Its dynamic load rating of 10,700 N ensures it can handle demanding operational environments.
Whether you're replacing worn-out bearings or building a new system, this Timken ball bearing offers a cost-effective, high-performance solution for industrial machinery and equipment.
Why Buy from Industrial Shed?
At Industrial Shed, we pride ourselves on offering high-quality, reliable industrial components for a wide range of applications. By choosing us, you gain access to:
- Trusted Brands: Our products are sourced from reputable manufacturers like Timken, ensuring durability and performance.
- Competitive Pricing: We offer great deals on top-of-the-line products.
- Fast Shipping: We get your parts to you quickly to minimize downtime.
- Expert Support: Our team is available to help with any questions or product selection advice.
Specifications:
- Series: Standard
- Bore Type: Cylindrical bore
- Bearing Type: Ball Bearing
- Material: Bearing Steel
- Lubrication Type: Non-Relubricatable
- O.D. Type: Cylindrical OD
- Sub Series: YA..RR
- Seal Type: Narrow Shroud
Dimensions:
- Outside Diameter (D): 40 mm
- Inner Ring Width (B): 23.8 mm
- Outside Ring Width (C): 12 mm
- Radius (r): 0.6 mm
- Center of Bearing from End (S): 7.95 mm
- Dimension S1: 15.85 mm
- Dimension F: 24.6 mm
- Dimension J: 4.75 mm
- Set Screw Size: M5 x 0.8
- Number of Set Screws: 2
- Angle Between Set Screws: 90º
Basic Load Ratings:
- Static Load Rating: 4700 N
- Dynamic Load Rating: 10,700 N
Why Choose the Timken - Fafnir® Wide Inner Ring Setscrew Locking Ball Bearing?
- High Load Capacity: With a static load rating of 4,700 N and a dynamic load rating of 10,700 N, it is built to handle both static and dynamic forces with ease.
- Durable Construction: Made from bearing steel for superior strength and wear resistance.
- Ease of Installation: The setscrew locking mechanism ensures quick and secure installation with minimal effort.
Perfect for industrial machinery, the Timken YA010RR bearing provides long-lasting, high-performance support, and is a must-have for your machinery maintenance or upgrades.
