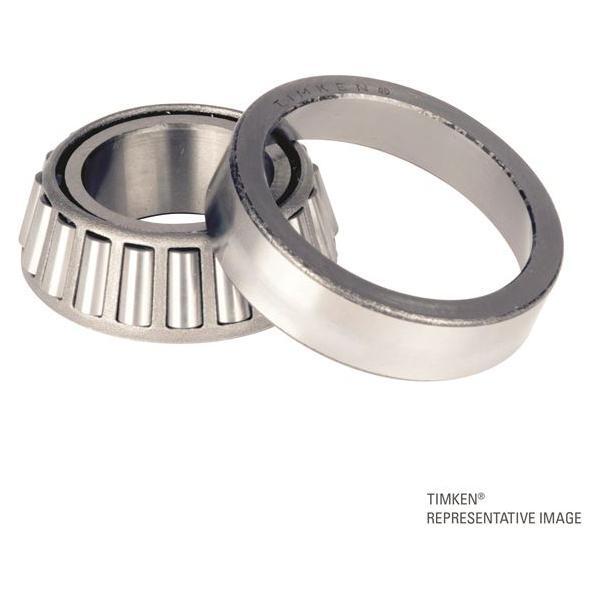

The Timken XLA33211-90KA1 Tapered Roller Bearing is part of the TS (Tapered Single) series, engineered for exceptional load capacity, precision alignment, and durability in demanding applications. With a 50 mm bore and metric design, this bearing is widely used in industrial gearboxes, axles, and heavy-duty machinery.
Featuring a stamped steel cage, precision-matched cone (XLA33211) and cup (Y33211), this bearing delivers enhanced radial and axial load handling. Its durable construction and performance-focused geometry make it ideal for high-load environments requiring minimal maintenance and long service life.
| Series | 33211 |
| Design | TS (Tapered Single) |
| Bore Diameter (d) | 50.0 mm |
| Outer Diameter (D) | 100.0 mm |
| Cone Width (B) | 33.500 mm |
| Cup Width (C) | 27.000 mm |
| Total Bearing Width (T) | 33.500 mm |
| Cone Part Number | XLA33211 |
| Cup Part Number | Y33211 |
| Cage Material | Stamped Steel |
| Assembly Number | XLA33211-90KA1 |
| Design Unit | Metric |
| Dynamic Radial Rating (C90) | 49,800 N |
| Dynamic Radial Rating (C1) | 192,000 N |
| Static Radial Rating (C0) | 202,000 N |
| Dynamic Thrust Rating (Ca90) | 34,100 N |
| ISO Factors (e / Y) | 0.4 / 1.5 |
| Heat Generation Factors (G1 / G2) | 59.3 / 15.3 |
| Geometry Factor (Cg) | 0.101 |
| Cone Backface Radius (R) | 2.030 mm |
| Cup Backface Radius (r) | 1.520 mm |
| Cone Frontface Backing Diameter (da) | 62.00 mm |
| Cone Backface Backing Diameter (db) | 67.00 mm |
| Cup Frontface Backing Diameter (Da) | 97.00 mm |
| Cup Backface Backing Diameter (Db) | 88.90 mm |
| Cage-Cone Clearance (Ab / Aa) | 3.3 / 0.8 mm |
| Effective Center Location (a) | -8.1 mm |
Optimize the performance and longevity of your machinery with Timken's precision-engineered tapered roller bearings. Order the XLA33211-90KA1 today from Industrial Shed for quality you can trust.
