Timken - Fafnir® Take-Up Mounted Bearings Eccentric Locking Collar - Shaft Size 1 7/16" | VTU1.7/16

Timken - Fafnir® VTU1.7/16 Take-Up Mounted Bearing | 1-7/16 in Shaft Engineered for durability and precision, the Timken - Fafnir® VTU1.7/16 Take-Up Mounted Bearing features a rugged construction and a 1-7/16 inch shaft size with an eccentric locking... Read More
Vendor: Timken
SKU: VTU1.7/16
$522.59
$522.59
Subtotal: $522.59

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

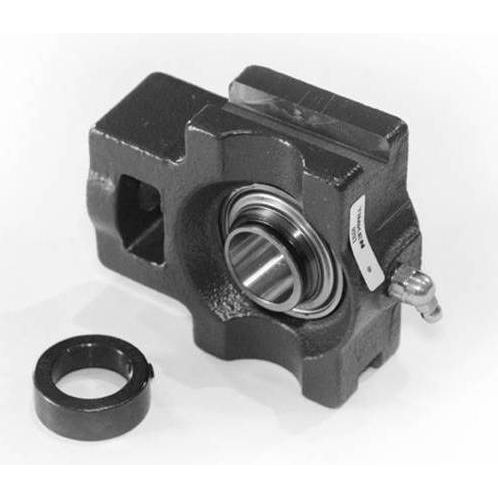

Timken - Fafnir® VTU1.7/16 Take-Up Mounted Bearing | 1-7/16 in Shaft

Engineered for durability and precision, the Timken - Fafnir® VTU1.7/16 Take-Up Mounted Bearing features a rugged construction and a 1-7/16 inch shaft size with an eccentric locking collar, making it ideal for high-demand applications in industrial machinery, conveyors, and material handling systems.

This unit uses a GRA107RRB insert bearing with a molded shroud seal for superior protection against dust, debris, and contaminants. The take-up housing design allows for smooth tension adjustment and easy alignment, ensuring long-lasting, low-maintenance operation.

Designed to handle high loads with a static load rating of 15,300 N and dynamic load rating of 28,500 N, this bearing is built for tough industrial environments.

Why Buy from Industrial Shed?

  • Authorized Source for Genuine Timken Products
  • Fast & Reliable Shipping to Industrial Sites
  • Expert Support from Engineers & Specialists
  • Comprehensive Range of Industrial Bearings
  • Secure Transactions with Transparent Pricing

Product Specifications

  • Brand: Timken – Fafnir®
  • Part Number: VTU1.7/16
  • Bearing Number: GRA107RRB
  • Locking Type: Eccentric Locking Collar
  • Seal Type: Molded Shroud
  • Housing Type: Take-Up
  • Shaft Size: 1-7/16 in
  • Series: Standard
  • Alternate Part Name: VTU1 7/16
  • Static Load Rating: 15,300 N
  • Dynamic Load Rating: 28,500 N

Dimensions (in mm)

Feature Dimension
Housing Width (A) 44.5
Slot Width (A1) 13.5
Socket Width (A2) 36.5
Total Height (H) 104.8
Pitch Height (H1) 88.9
Height (H2) 63.5
Total Length (L) 123.8
Shaft Length (L1) 74.6
Dimension (L2) 12.7
Slot Length (L3) 69.8
Adjustment Screw Bore (N) 22.2
Opening Width (N1) 15.9
Opening Height (N2) 36.5
Dimension (S1) 29.4
Dimension (G) 51.6
Dimension (P) 49.2
Dimension (T) 22.2
