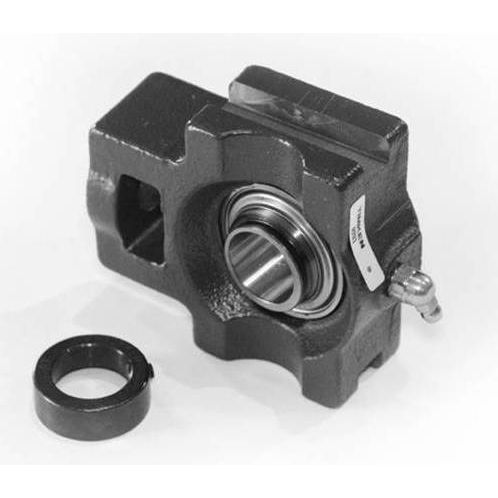

Timken - Fafnir® Take-Up Mounted Bearing with Eccentric Locking Collar - VTU1.3/16

Part Number: VTU1.3/16

Bearing Number: GRA103RRB

Shaft Size: 1 3/16 in

Designed for optimal performance in heavy-duty applications, this Timken Fafnir® take-up mounted bearing features a rugged housing construction with an eccentric locking collar for secure shaft attachment. The molded shroud seal provides enhanced protection against contaminants, making it ideal for harsh environments.

Specifications

  • Series: Standard
  • Seal Type: Molded Shroud
  • Housing Construction: Take-Up
  • Alternate Part Name: VTU1 3/16

Dimensions

  • Housing Width (A): 50.8 mm
  • Slot Width (A1): 13.5 mm
  • Socket Width (A2): 38.1 mm
  • Total Height (H): 104.8 mm
  • Pitch Height (H1): 88.90 mm
  • Height (H2): 61.9 mm
  • Total Length (L): 113.5 mm
  • Shaft Length (L1): 72.2 mm
  • Dimension (L2): 12.7 mm
  • Slot Length (L3): 63.5 mm
  • Adjustment Screw Bore (N): 22.2 mm
  • Opening Width (N1): 15.9 mm
  • Opening Height (N2): 36.5 mm
  • Dimension (S1): 26.71 mm
  • Dimension (G): 52 mm
  • Dimension (P): 41.3 mm
  • Dimension (T): 25.4 mm

Load Ratings

  • Static Load Rating: 11,300 N
  • Dynamic Load Rating: 21,600 N
