Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Eccentric Locking Collar - Bolt M16 - Shaft Size 1 15/16in | VCJ1.15/16
Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Eccentric Locking Collar - Bolt M16 - Shaft Size 1 15/16in | VCJ1.15/16
2 customers are viewing this product

Timken - Fafnir® Four-Bolt Flanged Mounted Bearings Eccentric Locking Collar - Bolt M16 - Shaft Size 1 15/16" | VCJ1.15/16

Timken - Fafnir® Four-Bolt Flanged Mounted Bearing with Eccentric Locking Collar – VCJ1.15/16 Enhance your equipment performance with the Timken - Fafnir® VCJ1.15/16 Four-Bolt Flanged Mounted Bearing, designed for strength, precision, and reliability in demanding industrial environments. This... Read More
Vendor: Timken
SKU: VCJ1.15/16
$519.02
$519.02
Subtotal: $519.02

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

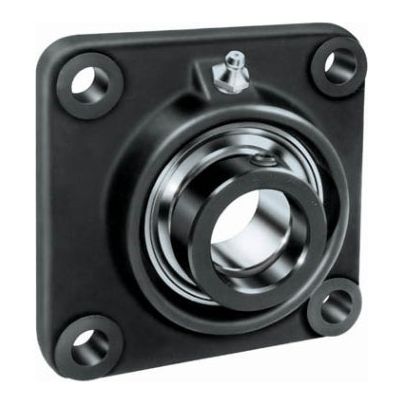

Timken - Fafnir® Four-Bolt Flanged Mounted Bearing with Eccentric Locking Collar – VCJ1.15/16

Enhance your equipment performance with the Timken - Fafnir® VCJ1.15/16 Four-Bolt Flanged Mounted Bearing, designed for strength, precision, and reliability in demanding industrial environments. This bearing unit features a standard series GRA115RRB bearing housed in a durable four-bolt square flange, offering secure mounting and superior load support.

Equipped with an eccentric locking collar, it ensures quick and effective shaft attachment, minimizing installation time and maximizing operational stability. The molded shroud seal provides excellent protection against contaminants, ensuring longer service life even under tough conditions.

Ideal for agricultural machinery, conveyors, HVAC systems, and general industrial applications, this unit is engineered to perform under pressure.

Key Features & Specifications:

  • Product Name: Timken - Fafnir® VCJ1.15/16
  • Series: Standard
  • Bearing Number: GRA115RRB
  • Seal Type: Molded Shroud
  • Housing Type: Four-Bolt Square Flange
  • Locking Mechanism: Eccentric Locking Collar
  • Bolt Size: M16
  • Shaft Size: 1 15/16 in (≈ 49.2 mm)
  • Alternate Part Name: VCJ115/16

Dimensions:

  • Total Length (L): 142.9 mm
  • Housing Width (A): 42.9 mm
  • Flange Thickness (A1): 14.3 mm
  • Bolt Hole Spacing: 111.12 mm
  • Bolt Hole Size (N): 16 mm
  • Center of Bearing from Housing End (A2): 28.5 mm
  • Dimension B1: 43.7 mm
  • Dimension S1: 32.7 mm
  • Dimension D: 112.7 mm
  • Dimension E: 61 mm
  • Dimension d1 (Shaft Diameter): 69.9 mm

Load Ratings:

  • Static Load Rating: 23,200 N
  • Dynamic Load Rating: 38,900 N
