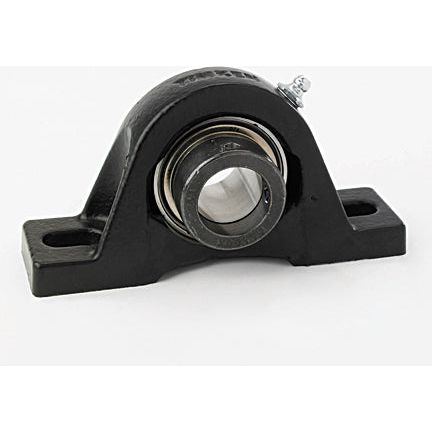

Timken - Fafnir® Pillow Block Mounted Bearings Eccentric Locking Collar - Shaft Size 1 3/16" | VAK1.3/16

Timken - Fafnir® Pillow Block Mounted Bearing with Eccentric Locking Collar – 1 3/16 in Shaft Size | VAK1.3/16 The Timken - Fafnir® VAK1.3/16 Pillow Block Bearing is a premium-quality solution designed for dependable performance in demanding industrial... Read More
Vendor: Timken
SKU: VAK1.3/16
$266.77
$266.77
Subtotal: $266.77

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

Timken - Fafnir® Pillow Block Mounted Bearing with Eccentric Locking Collar – 1 3/16 in Shaft Size | VAK1.3/16

The Timken - Fafnir® VAK1.3/16 Pillow Block Bearing is a premium-quality solution designed for dependable performance in demanding industrial environments. Engineered with a ball bearing type insert and an eccentric locking collar, this mounted unit ensures secure shaft attachment and smooth operation under dynamic loads.

With a two-bolt pillow block housing, this bearing is easy to mount and offers robust support. It features a molded shroud seal for enhanced protection against contaminants, making it ideal for environments with dust, debris, or moisture.

Whether you're running conveyors, agricultural equipment, or manufacturing machinery, this unit delivers high load capacity and longevity.

Why Buy from Industrial Shed?

  • 🔧 Genuine, industrial-grade parts from trusted manufacturers like Timken
  • 🚚 Fast, reliable shipping to keep your operations moving
  • 📦 Bulk order support and competitive pricing for industrial buyers
  • 📞 Expert support to help you select and source the right components

We make sourcing easier, so you can focus on performance.

Key Specifications:

General:

  • Brand: Timken – Fafnir®
  • Series: Standard
  • Bearing Type: Ball Bearing
  • Locking Mechanism: Eccentric Locking Collar
  • Shaft Size: 1 3/16 in
  • Bearing Number: GRA103RRB
  • Alternate Part Name: VAK1 3/16
  • Seal Type: Molded Shroud
  • Housing Type: Two-Bolt Pillow Block

Dimensions:

  • Base to Center Height (H): 39.69 mm
  • Total Length (L): 157.2 mm
  • Total Width (A): 39.7 mm
  • Bolt Hole Spacing (J): 117.5 mm
  • Bolt Hole Width (N): 14.3 mm
  • Bolt Hole Length (N1): 23.8 mm
  • Foot Height (H1): 13.5 mm
  • Total Height (H2): 80.2 mm
  • d1 (Shaft Diameter Center): 44.1 mm
  • B1 (Insert Width): 35.7 mm
  • S1 (Mounting Slot Width): 26.71 mm
  • T (Housing Thickness): 19.9 mm

Load Ratings:

  • Static Load Rating: 11,300 N
  • Dynamic Load Rating: 21,600 N
