Timken - Take-Up Mounted Bearings - Shaft Size 25.0mm | UELT205
2 customers are viewing this product

Timken - Take-Up Mounted Bearings - Shaft Size 25.0mm | UELT205

Take-Up Bearing Unit UELT205 – 25 mm Shaft | Eccentric Locking Collar Engineered for precision and reliability, the UELT205 Take-Up Bearing Unit is the ideal choice for applications requiring smooth operation and simplified belt tension adjustment. Featuring an... Read More
Vendor: Timken
SKU: UELT205
$53.32
$53.32
Subtotal: $53.32

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

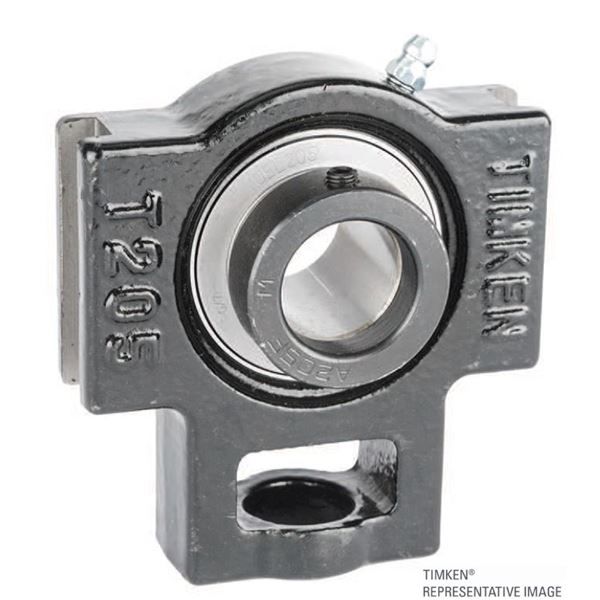

Take-Up Bearing Unit UELT205 – 25 mm Shaft | Eccentric Locking Collar

Engineered for precision and reliability, the UELT205 Take-Up Bearing Unit is the ideal choice for applications requiring smooth operation and simplified belt tension adjustment. Featuring an eccentric locking collar and take-up style housing, it ensures a secure fit on a 25 mm shaft while allowing for quick tension adjustments in conveyors, material handling systems, and industrial machinery.

With robust housing and high load capacity, this unit supports both static and dynamic forces, offering 7850 N static and 14000 N dynamic load ratings. The grease nipple (B-1/4-28UNF) allows for easy maintenance and long-term lubrication performance.

🔧 Specifications:

  • Shaft Size (d): 25 mm
  • Locking Style: Eccentric Locking Collar
  • Housing Type: Take-Up

Dimensions:

  • Housing Width (A): 32 mm
  • Slot Width (A1): 12 mm
  • Socket Width (A2): 24 mm
  • Total Height (H): 89 mm
  • Pitch Height (H1): 76 mm
  • Height (H2): 51 mm
  • Total Length (L): 97 mm
  • Shaft Length (L1): 62 mm
  • Dimension L2: 10 mm
  • Slot Length (L3): 51 mm
  • Adjustment Screw Bore (N): 19 mm
  • Opening Width (N1): 16 mm
  • Opening Height (N2): 32 mm
  • Center of Bearing from End (S): 17.5 mm
  • Dimension B1: 44.4 mm
  • Grease Nipple Size: B-1/4-28UNF

Load Ratings:

  • Static Load Rating: 7850 N
  • Dynamic Load Rating: 14000 N
