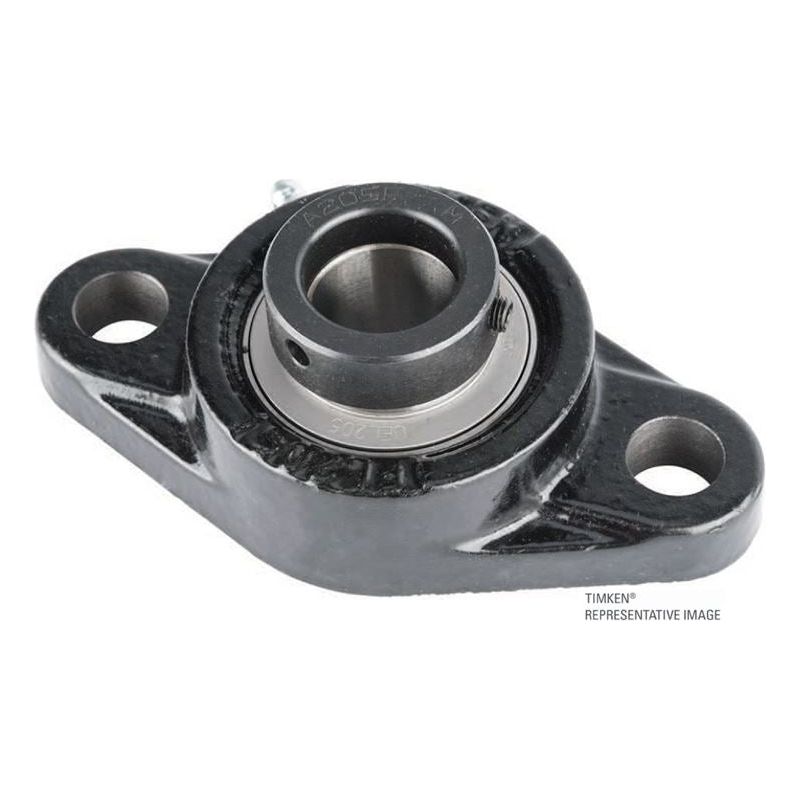

Timken - Two-Bolt Flanged Mounted Bearings - Eccentric Locking Collar - Shaft Size 20.0mm | UELFL204

UELFL204 Two-Bolt Flange Bearing – 20 mm Shaft, Eccentric Locking Collar Ensure stability and smooth operation in your mechanical applications with the UELFL204 Two-Bolt Flange Bearing Unit. Engineered for durability, this unit features an eccentric locking collar for... Read More
Vendor: Timken
SKU: UELFL204
$38.92
$38.92
Subtotal: $38.92

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

UELFL204 Two-Bolt Flange Bearing – 20 mm Shaft, Eccentric Locking Collar

Ensure stability and smooth operation in your mechanical applications with the UELFL204 Two-Bolt Flange Bearing Unit. Engineered for durability, this unit features an eccentric locking collar for secure shaft mounting and is ideal for applications requiring high load support and minimal maintenance.

Designed with a 20 mm shaft size, it includes a robust two-bolt flange housing and delivers reliable performance under both dynamic and static loads. With a dynamic load rating of 12,800 N and a static load rating of 6,650 N, it's built to handle industrial demands with ease.

Technical Specifications:

  • Shaft Size (d): 20 mm
  • Locking Style: Eccentric Locking Collar
  • Housing Construction: Two-Bolt Flange

Dimensions:

  • Total Length (H): 113 mm
  • Total Height (L): 60 mm
  • Housing Width (A): 25.5 mm
  • Bolt Hole Spacing (J): 90 mm
  • Bolt Hole Size (N): 12 mm
  • Flange Thickness (A1): 11 mm
  • Center of Bearing from Housing End (A2): 15 mm
  • Center of Bearing from Bearing End (S): 17.1 mm
  • Dimension B1: 43.7 mm
  • Dimension A0: 41.6 mm
  • Bolt Size: M10

Load Ratings:

  • Static Load Rating: 6,650 N
  • Dynamic Load Rating: 12,800 N
