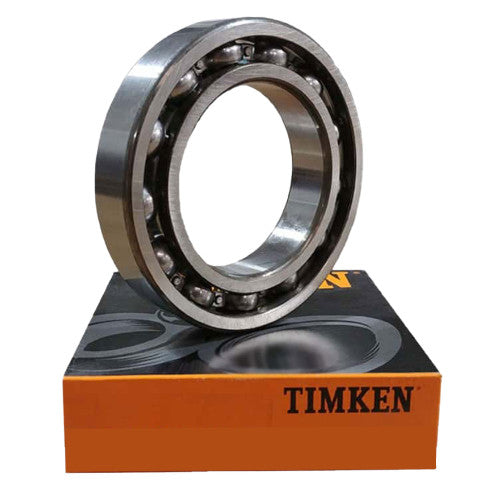

Timken - Deep Grove Metric Ball Bearing - Open Bore 95.0mm | 6319
Timken - Deep Grove Metric Ball Bearing - Open Bore 95.0mm | 6319
2 customers are viewing this product

Timken - Deep Grove Metric Ball Bearing - Open Bore 95.0mm | 6319

Timken - Deep Groove Metric Ball Bearing - Open Bore 95.0mm | 6319 Timken 6319 Open Type Deep Groove Ball Bearing – High-Capacity Support for Industrial Applications The Timken 6319 is a high-performance Open Type Deep Groove Radial... Read More
Vendor: Timken
SKU: 6319
$277.90
$277.90
Subtotal: $277.90

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Timken - Deep Groove Metric Ball Bearing - Open Bore 95.0mm | 6319

Timken 6319 Open Type Deep Groove Ball Bearing – High-Capacity Support for Industrial Applications

The Timken 6319 is a high-performance Open Type Deep Groove Radial Ball Bearing designed for durable operation under high radial loads and moderate axial loads. With a 95 mm bore (ID), 200 mm outside diameter (OD), and 45 mm width, this medium-series bearing is an ideal solution for heavy-duty rotating machinery, electric motors, gearboxes, and more.

Engineered for maximum reliability, the 6319 bearing features a strong steel cage and precision-ground raceways that provide smooth, low-friction motion. The open design allows for efficient heat dissipation and easy lubrication access, making it well-suited for environments where contamination is minimal or regularly cleaned.

The bearing offers a greater-than-normal radial internal clearance—providing improved thermal compensation and reduced stress under high-speed or misaligned applications. This flexibility helps extend service life in heavy machinery or systems exposed to fluctuating loads or temperatures.

Key Features & Benefits

  • Precision Dimensions: 95 mm ID × 200 mm OD × 45 mm width
  • Open Design: Easy lubrication and cooling in clean or controlled environments
  • Standard Clearance (C0+): Offers better load absorption during high-speed operation
  • Durable Steel Cage: Robust construction for extended bearing life
  • Deep Groove Geometry: Excellent for radial loads with some axial load handling
  • Timken Quality: Globally trusted bearing technology with strict tolerances

Technical Specifications

  • Brand: Timken
  • Part Number: 6319
  • Availability: In Stock ✅
  • Bore (Inner Diameter): 95 mm
  • Outside Diameter: 200 mm
  • Width: 45 mm
  • Cage Material: Steel
  • Enclosure: Open (no seals or shields)
  • Radial Internal Clearance: Normal (greater than standard C0)
  • Dynamic Load Rating: 153 kN
  • Static Load Rating: 118 kN
  • Reference Speed Rating: 6600 rpm
  • Limiting Speed Rating: 4600 rpm
  • Weight: 5.653 kg
  • Series: 63 Medium Series
  • SKU: 6319-timken

Common Applications

  • Large electric motors and generators
  • Gearboxes and transmission drives
  • Material handling and conveyor systems
  • Pumps and compressors
  • Industrial fans, blowers, and crushers

Why Choose the Timken 6319?

  • Trusted Engineering: Timken bearings are designed to perform under extreme loads and speeds
  • Versatile Use: Suitable for high-speed, high-load, and high-temperature operations
  • Extended Service Life: Optimal internal clearance and premium steel construction enhance longevity
  • Industry Compliance: Conforms to ISO P0 / ABEC 1 standard for interchangeability

Whether you're replacing worn components or building a new machine, the Timken 6319 provides the performance and reliability required in today’s demanding industrial environments.
