Timken - Deep Grove Metric Ball Bearing - Open Bore 90.0mm | 6318
Timken - Deep Grove Metric Ball Bearing - Open Bore 90.0mm | 6318
2 customers are viewing this product

Timken - Deep Grove Metric Ball Bearing - Open Bore 90.0mm | 6318

Timken - Deep Groove Metric Ball Bearing - Open Bore 90.0mm | 6318 Heavy-Duty Deep Groove Performance – Timken 6318 with 90mm Bore The Timken 6318 Deep Groove Radial Ball Bearing is engineered for high-performance industrial machinery and... Read More
Vendor: Timken
SKU: 6318
$224.94
$224.94
Subtotal: $224.94

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

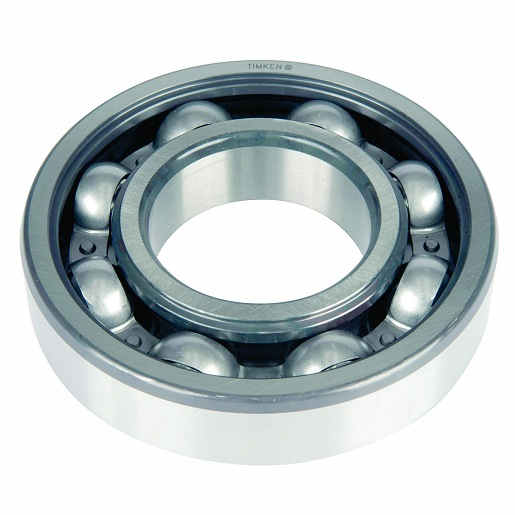

Timken - Deep Groove Metric Ball Bearing - Open Bore 90.0mm | 6318

Heavy-Duty Deep Groove Performance – Timken 6318 with 90mm Bore

The Timken 6318 Deep Groove Radial Ball Bearing is engineered for high-performance industrial machinery and demanding mechanical applications. Featuring a robust 90 mm inner diameter, 190 mm outer diameter, and a wide 43 mm race width, this single-row bearing is ideal for supporting heavy radial and moderate axial loads at high rotational speeds.

Constructed with a high-strength steel cage and conforming to ABEC 1 | ISO P0 tolerances, the 6318 ensures smooth rotation and durable operation across a wide range of temperatures and conditions. The open configuration allows for efficient heat dissipation and straightforward maintenance, making it suitable for clean environments or applications with controlled lubrication.

Designed with a standard C0-Medium internal clearance, this bearing provides optimal load distribution and thermal expansion accommodation. Free from filling slots and snap rings, it offers a simplified, rugged design perfect for demanding, continuous-duty applications.

Key Features & Benefits

  • Precision Bore: 90 mm (3.543 inches) inner diameter for large shaft support
  • Durable Steel Construction: Long service life under harsh industrial use
  • Open Type Enclosure: Supports active lubrication systems and quick inspection
  • ABEC 1 | ISO P0 Tolerance: Reliable precision for general machinery applications
  • Deep Groove Design: Supports combined radial and axial loads efficiently
  • No Filling Slot or Snap Ring: Simplified structure, improved mechanical stability
  • C0-Medium Internal Clearance: Balanced clearance ideal for thermal fluctuation

Typical Applications

  • Electric motor and generator assemblies
  • Pumps and compressors in HVAC and fluid systems
  • Industrial gearboxes and conveyors
  • Mining and agricultural equipment
  • Steel mills, paper production, and material handling

Technical Specifications

  • Part Number: 6318
  • Manufacturer: Timken
  • Brand: TIMKEN
  • Bore (ID): 90 mm (3.543 inches)
  • Outside Dia
