Timken - Deep Grove Metric Ball Bearing - Open Bore 85.0mm | 6317
Timken - Deep Groove Metric Ball Bearing - Open Bore 85.0mm | 6317 Engineered for Heavy-Duty Applications – High Reliability & Load Capacity from Timken The Timken 6317 Deep Groove Radial Ball Bearing delivers exceptional performance for high-load,... Read More
Vendor:
Timken
SKU:
6317
- $185.26
- $185.26
- Unit price
- per
On Time, Every Time
Reliable delivery guaranteed.
Secure Payments
Shop with confidence.
100% Happiness Guarantee
Only at Industrial Shed.

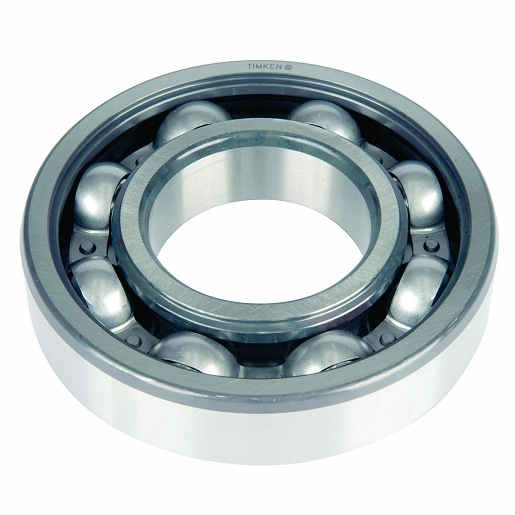

Timken - Deep Groove Metric Ball Bearing - Open Bore 85.0mm | 6317
Engineered for Heavy-Duty Applications – High Reliability & Load Capacity from Timken
The Timken 6317 Deep Groove Radial Ball Bearing delivers exceptional performance for high-load, high-speed industrial applications. Designed with an 85 mm bore, 180 mm outside diameter, and 41 mm outer race width, this single-row bearing ensures long-lasting reliability and smooth operation even under demanding radial and axial loads.
The open-type configuration allows for optimal grease flow and heat dissipation, making it suitable for environments where regular maintenance and lubrication access are essential. Crafted with a robust steel cage and conforming to ABEC 1 | ISO P0 precision class, the 6317 supports efficient rotation with standard industrial tolerances.
The bearing features a C0-Medium internal clearance, ensuring thermal expansion is well-managed without compromising structural integrity. Free from filling slots or snap rings, the design focuses on simplified strength and stability in continuous-operation machinery.
Key Features & Benefits
- 85 mm Inner Diameter – Ideal for larger shaft configurations
- Open Enclosure – Easier access for lubrication and inspection
- Deep Groove Design – Excellent for handling both radial and axial loads
- Steel Cage – High tensile strength and resistance to wear
- ABEC 1 | ISO P0 Tolerance – Meets standard performance specs for industrial use
- C0-Medium Clearance – Allows for controlled internal movement during high-speed operation
- Durable & Simple – No filling slot or snap ring for added mechanical reliability
- Compatible with Multiple Applications – From pumps and motors to fans and gearboxes
Common Applications
- Large electric motors and AC drives
- Conveyors and transmission gearboxes
- Industrial HVAC blowers and compressors
- Mining, agricultural, and construction equipment
- General-purpose industrial machinery
Technical Specifications
- Part Number: 6317
- Bore (ID): 85 mm (3.346 inches)
- Outside Diameter (OD): 180 mm (7.087 inches)
- Outer Race Width: 41 mm (1.614 inches)
- Configuration: Single Row Deep Groove
- Enclosure Type: Open
- Precision Rating: ABEC 1 | ISO P0
- Internal Clearance: C0-Medium
- Cage Material: Steel
- Snap Ring: None
- Filling Slot: None
- Weight: 4.23 kg (9.2 lbs)
- UNSPSC: 31171504
- EAN: 0053893725444
- Tariff Code: 8482.10.50.68
- Manufacturer: Timken Company
- Brand: Timken
- Country of Origin: Varies by batch
Why Choose Timken 6317 from Industrial Shed?
- Authentic OEM Quality: Verified and sourced directly from Timken
- Technical Expertise: In-house support from application engineers
- Ready to Ship: Fast delivery for in-stock items
- Competitive Pricing: Bulk discounts available for industrial clients
- After-Sales Support: Hassle-free returns and assistance
Experience the unmatched strength and longevity of the Timken 6317 Deep Groove Ball Bearing. Trusted by global industries for delivering performance under pressure — available now at Industrial Shed.
