Timken - Deep Grove Metric Ball Bearing - Open Bore 80.0mm | 6316
Timken - Deep Groove Metric Ball Bearing - Open Bore 80.0mm | 6316 Heavy-Duty Performance Meets Timken Precision – For High-Load, High-Speed Applications The Timken 6316 Deep Groove Ball Bearing is designed for heavy-duty industrial performance, combining exceptional... Read More
Vendor:
Timken
SKU:
6316
- $150.30
- $150.30
- Unit price
- per
On Time, Every Time
Reliable delivery guaranteed.
Secure Payments
Shop with confidence.
100% Happiness Guarantee
Only at Industrial Shed.

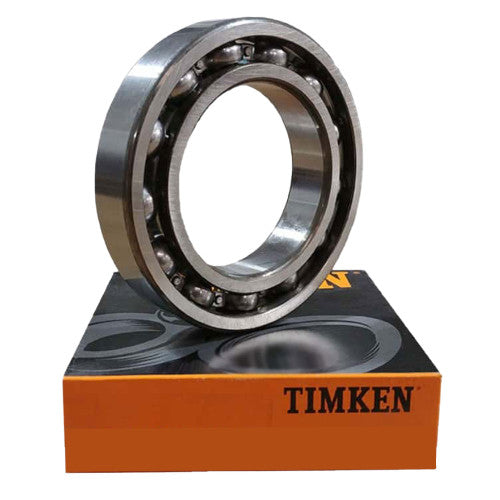

Timken - Deep Groove Metric Ball Bearing - Open Bore 80.0mm | 6316
Heavy-Duty Performance Meets Timken Precision – For High-Load, High-Speed Applications
The Timken 6316 Deep Groove Ball Bearing is designed for heavy-duty industrial performance, combining exceptional strength, long-lasting durability, and reliable operation under both radial and axial loads. Featuring an 80 mm bore, 170 mm outside diameter, and 39 mm width, this bearing is built to withstand the rigors of demanding mechanical environments.
The open design allows for better lubrication flow and heat dissipation, making it ideal for applications where periodic maintenance and grease access are necessary. Manufactured with a steel cage and built to ABEC 1 | ISO P0 precision standards, this bearing delivers consistent performance across a wide range of operating speeds.
With a C0-Medium internal clearance, no snap ring, and no filling slot, the 6316 offers a simple, durable design that excels in applications requiring high rotational accuracy and extended bearing life.
Key Features & Benefits
- 80 mm Inner Diameter for compatibility with larger shafts
- Open design for easy access to lubrication and cooling
- Steel Cage provides strength and temperature resistance
- Deep Groove Profile: Efficient handling of radial and axial loads
- ABEC 1 | ISO P0 Precision: Standard tolerance for industrial-grade machinery
- Medium Clearance (C0): Ideal for general-purpose applications with thermal stability
- No Filling Slot or Snap Ring: Simplified, robust configuration
- High Load Capacity: Suitable for electric motors, conveyors, and gearboxes
Ideal Applications
- Electric motors and gear reducers
- Industrial fans and pumps
- Material handling equipment
- Compressors and construction machinery
- Mining, agricultural, and general machinery
Technical Specifications
- Part Number: 6316
- Bore (ID): 80 mm (3.15 inches)
- Outside Diameter (OD): 170 mm (6.693 inches)
- Outer Race Width: 39 mm (1.535 inches)
- Design: Single Row Deep Groove Ball Bearing
- Enclosure: Open
- Precision Class: ABEC 1 | ISO P0
- Internal Clearance: C0-Medium
- Cage Material: Steel
- Snap Ring: No
- Filling Slot: No
- Weight: 3.59 kg (7.902 lbs)
- UNSPSC: 31171504
- EAN: 0087796295889
- Harmonized Tariff Code: 8482.10.50.68
- Brand: Timken
- Manufacturer: Timken Company
Why Buy from Industrial Shed?
- 100% Genuine Timken Bearings with verified sourcing
- Expert Guidance: Get technical advice from our industry specialists
- Fast Dispatch: Bearings shipped from ready-to-ship inventory
- Special Pricing: Bulk order discounts available
- Support: Easy returns, warranty assistance & post-sales service
Experience unmatched reliability and quality with the Timken 6316 Deep Groove Ball Bearing. Available now from Industrial Shed — your trusted source for industrial-grade bearing solutions.
