Description

Timken - Deep Groove Metric Ball Bearing - Open Bore 65.0mm | 6313

Engineered for Precision, Built for Performance

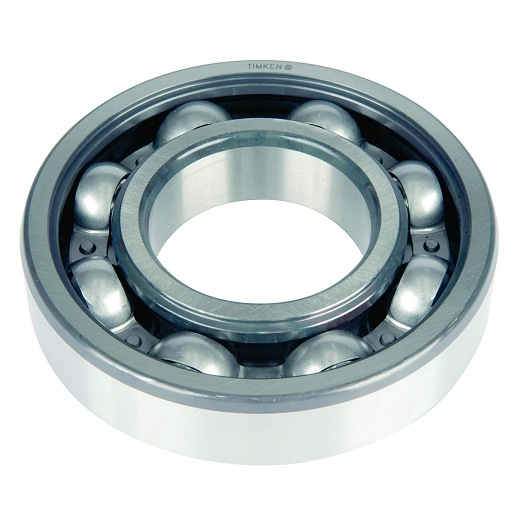

The Timken 6313 is a high-performance, single-row deep groove ball bearing designed to meet the rigorous demands of modern industrial applications. With a 65 mm inner diameter, 140 mm outer diameter, and 33 mm width, this bearing is ideal for supporting radial and moderate axial loads in both directions.

Manufactured by Timken, a global leader in friction management and power transmission, the 6313 offers exceptional reliability and durability. The bearing features an open design allowing efficient lubrication flow, which helps extend service life in applications where contamination is controlled.

Constructed with a robust steel cage, this bearing maintains uniform ball spacing under load and during high-speed operation, reducing friction and wear. The C0-medium internal clearance provides a good balance between precision and thermal expansion, making it suitable for a wide range of temperatures and rotational speeds.

Key Features & Benefits

  • Open Type: Optimized for applications where external lubrication and regular maintenance are possible
  • Single Row Design: Suitable for radial loads and light axial loads in either direction
  • Steel Cage: Provides enhanced strength and long-term dimensional stability
  • Precision Grade: ABEC 1 | ISO P0 for general industrial applications requiring consistent performance
  • C0 Internal Clearance: Ideal for applications with minimal shaft/housing expansion
  • No Snap Ring / Filling Slot: Simplified structure for easier integration in compact assemblies
  • Trusted Timken Quality: Manufactured under strict quality control standards

Applications

Ideal for use in:

  • Electric motors and generators
  • Industrial gearboxes and reducers
  • Pumps and compressors
  • Material handling equipment
  • HVAC fans and blowers
  • Conveyors and assembly line machines
  • Automotive and agricultural machinery

Technical Specifications

  • Part Number: 6313
  • Bore Diameter (d): 65 mm (2.559 in)
  • Outside Diameter (D): 140 mm (5.512 in)
  • Outer Ring Width (B): 33 mm (1.299 in)
  • Design: Standard Deep Groove Ball Bearing (DGBB)
  • Enclosure: Open
  • Precision Rating: ABEC 1 / ISO P0
  • Internal Clearance: C0 (Normal)
  • Cage Material: Steel
  • Filling Slot: No
  • Snap Ring: No
  • Weight: 2.08 kg (4.574 lbs)
  • UNSPSC: 31171504
  • EAN: 0087796295827
  • Harmonized Tariff Code: 8482.10.50.68
  • Country of Origin: Timken manufacturing plants worldwide

Why Choose Industrial Shed?

  • Authorized Distributor: Genuine Timken bearings sourced directly from official channels
  • Competitive Pricing: Industry-best rates for retail and bulk customers
  • Fast Dispatch: Quick shipping to ensure your operations stay on track
  • Expert Guidance: Industrial specialists to assist in selecting the right bearings
  • Reliable Support: After-sales service and technical help available as needed

Whether you're replacing a worn bearing or designing a new system, the Timken 6313 Deep Groove Ball Bearing offers superior value and performance. Available now at Industrial Shed — your trusted partner for industrial-grade mechanical components.
