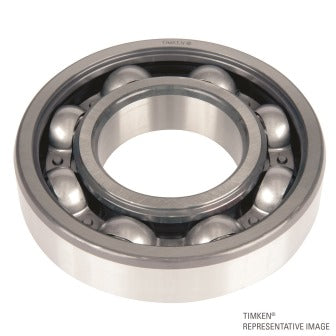

Timken - Deep Groove Metric Ball Bearing - Open Bore 17.0mm | 6303

Reliable, High-Speed Performance for Industrial and Mechanical Applications

The Timken 6303 deep groove ball bearing is designed for precision, efficiency, and durability in a wide variety of high-speed, low-friction applications. Manufactured to ABEC 1 | ISO P0 standards, this single-row bearing provides smooth rotation, long life, and superior load handling capabilities.

Featuring super-finished raceways and optimized ball geometry, the 6303 bearing supports consistent operation under both radial and axial loads. Its C0 (Normal) internal clearance offers a balanced fit that maintains proper alignment and reduces wear, while the open design facilitates effective heat dissipation and allows for external lubrication when necessary.

Trusted by professionals across automotive, industrial, and consumer product sectors, Timken deep groove bearings are known for their robust steel construction, low noise operation, and high-speed reliability.

Key Features

  • High-Quality Precision: Manufactured to ABEC 1 | ISO P0 standards for dimensional accuracy
  • Super-Finished Raceways: Reduce friction and promote smooth, quiet rotation
  • Steel Cage Design: Ensures stability and even ball spacing under load
  • Open Configuration: Ideal for systems with filtered lubrication or external maintenance
  • C0 Clearance: Provides a standard internal fit for most general-purpose applications

Typical Applications

  • Electric motors and pumps
  • Gearboxes and transmissions
  • HVAC systems
  • Agricultural machinery
  • Power tools and compact mechanical assemblies

Why Choose Timken?

With over 100 years of innovation and excellence, Timken is a global leader in bearing design and manufacturing. Each Timken bearing is built with high-grade materials and engineered for long-term reliability, helping reduce downtime and increase system efficiency.

Technical Specifications

  • Bore Size (d): 17 mm
  • Outside Diameter (D): 47 mm
  • Outer Ring Width (B): 14 mm
  • Radius (Rs min): 1 mm
  • Dynamic Load Rating (Cr): 13,600 N
  • Static Load Rating (C0r): 6,600 N
  • Grease Reference Speed: 15,000 rpm
  • Oil Reference Speed: 22,000 rpm
  • Internal Clearance: C0 (Normal)
  • Enclosure: Open
  • Cage Material: Steel
  • Bearing Type: Single Row Deep Groove Ball Bearing

🛠️ Upgrade your equipment today with the Timken 6303—engineered for precision and performance in demanding environments.
