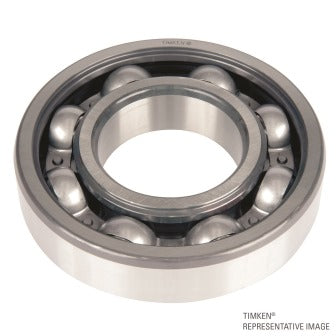

Timken - Deep Groove Metric Ball Bearing - Open Bore 12.0mm | 6301
High-Precision Bearing for Demanding, High-Speed Applications
Timken’s 6301 deep groove ball bearing is engineered to deliver consistent, high-performance operation in compact machinery. Whether used in electric motors, pumps, or power tools, this precision bearing stands up to demanding operating conditions with minimal friction and long service life.
As part of Timken’s trusted range of deep groove ball bearings, the 6301 benefits from super-finished raceways and controlled internal geometries. These enhancements reduce internal friction, improve lubricant retention, and minimize noise and vibration — even at speeds up to 27,000 rpm (with oil lubrication).
Designed with a C0 (Normal) internal clearance and an open configuration, this bearing supports a wide variety of general-purpose industrial applications where external lubrication is available or preferred.
Key Features
- High-Speed Performance: Rated for up to 27,000 rpm with oil, 19,000 rpm with grease
- Optimized Internal Geometry: Reduces operating friction for better energy efficiency
- Compact Size: 12mm bore and 37mm outer diameter ideal for tight spaces
- Steel Cage Construction: Enhances durability and maintains ball spacing
- Reliable Load Capacity: Handles dynamic loads up to 9,700 N
- Open Type Design: Best for applications with accessible lubrication systems
Applications
This bearing is widely used in:
- Electric motors and fans
- Power tools and pumps
- Home and commercial appliances
- Automotive components
- Industrial automation and robotics
Why Choose Timken?
With over 120 years of bearing innovation, Timken is a globally recognized leader in mechanical power transmission. Each bearing is manufactured to the highest standards, backed by engineering excellence and a commitment to consistent performance and reliability.
Why Buy from Industrial Shed?
- 100% Genuine Timken Products – Guaranteed authenticity, no substitutes
- Fast, Local Shipping – We dispatch quickly from Australian warehouses
- Expert Support – Industrial engineers available to help with your selection
- Competitive Pricing – Premium bearings at industry-best prices
Technical Specifications
- Bore Diameter (d): 12 mm
- Outside Diameter (D): 37 mm
- Outer Ring Width (B): 12 mm
- Radius (Rs min): 1 mm
- Dynamic Load Rating (Cr): 9,700 N
- Static Load Rating (C0r): 4,200 N
- Grease Reference Speed: 19,000 rpm
- Oil Reference Speed: 27,000 rpm
- Internal Clearance: C0 (Normal)
- Enclosure: Open
- Bearing Type: Standard Deep Groove Ball Bearing (DGBB)
📦 Order your Timken 6301 bearing today from Industrial Shed — the trusted source for industrial-quality bearings and components in Australia.
