Timken - Deep Grove Metric Ball Bearing - Open Bore 45.0mm | 6209C3
Timken - Deep Grove Metric Ball Bearing - Open Bore 45.0mm | 6209C3
2 customers are viewing this product

Timken - Deep Grove Metric Ball Bearing - Open Bore 45.0mm | 6209C3

Timken - Deep Groove Metric Ball Bearing - Open Bore 45.0mm | 6209-C3 High-Performance Ball Bearing | 45x85x19mm | C3 Clearance | Open Type The Timken 6209-C3 is a precision-engineered deep groove ball bearing featuring a 45mm bore,... Read More
Vendor: Timken
SKU: 6209C3
$18.88
$18.88
Subtotal: $18.88

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

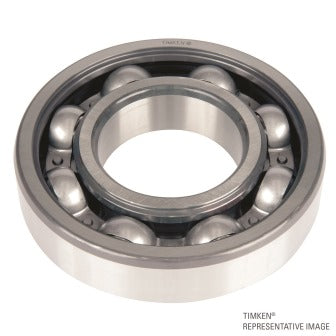

Timken - Deep Groove Metric Ball Bearing - Open Bore 45.0mm | 6209-C3

High-Performance Ball Bearing | 45x85x19mm | C3 Clearance | Open Type

The Timken 6209-C3 is a precision-engineered deep groove ball bearing featuring a 45mm bore, 85mm outside diameter, and 19mm width. With a C3 internal clearance, it accommodates thermal expansion and high-speed rotation, making it ideal for demanding industrial applications.

Built with super-finished raceways and Timken’s proven geometric precision, this open-type bearing reduces wear and friction, ensuring smooth operation and long service life.

Product Highlights

  • Brand: Timken
  • Part Number: 6209-C3
  • Bearing Type: Standard Deep Groove Ball Bearing (DGBB)
  • Configuration: Open (no seals or shields)
  • Clearance: C3 – Loose internal clearance for high-speed or thermally stressed systems

Technical Specifications

  • Bore (Inside Diameter): 45 mm
  • Outside Diameter: 85 mm
  • Width: 19 mm
  • Minimum Fillet Radius (Rs): 1.1 mm
  • Dynamic Load Rating (Cr): 31,200 N
  • Static Load Rating (C0r): 20,300 N
  • Grease Reference Speed: 8,200 RPM
  • Oil Reference Speed: 12,000 RPM

Key Features

  • Open Design: Optimized for systems with clean environments or external lubrication
  • Steel Cage: Ensures strength and stable rotation under load
  • Low Friction: Precision-machined raceways help reduce energy loss
  • C3 Clearance: Ideal for high-speed, high-temperature operations

Typical Applications

  • Electric motors and drives
  • Gearboxes and pumps
  • Industrial conveyors
  • HVAC systems
  • Agricultural and construction equipment

Why Choose Timken Bearings?

  • Reliable Performance: Trusted by OEMs and industrial users worldwide
  • ISO P0 / ABEC 1 Quality: Meets international tolerance standards
  • In-Stock & Fast Delivery: Available locally in Australia
  • Support Available: Expert help for selection and application

🛒 Order the Timken 6209-C3 today and keep your equipment running efficiently with one of the industry's most trusted bearing solutions.
