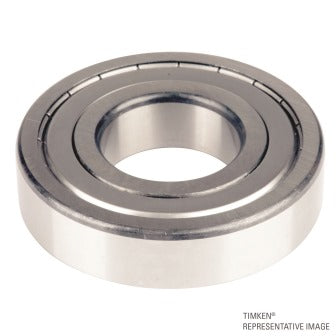

Timken - Deep Groove Ball Bearing Shielded Metric - Bore 20.0mm | 6204-ZZC3

Timken - Deep Groove Ball Bearing Double Shielded C3 Clearance - Bore 20.0mm | 6204ZZC3 High-Speed Performance with Enhanced Internal Clearance The Timken 6204ZZC3 Deep Groove Ball Bearing is designed for high-speed applications where durability and reduced maintenance... Read More
Vendor: Timken
SKU: 6204-ZZC3
$5.46
$5.46
Subtotal: $5.46

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

Timken - Deep Groove Ball Bearing Double Shielded C3 Clearance - Bore 20.0mm | 6204ZZC3

High-Speed Performance with Enhanced Internal Clearance

The Timken 6204ZZC3 Deep Groove Ball Bearing is designed for high-speed applications where durability and reduced maintenance are key. Outfitted with dual metal shields, it offers solid protection against dust and debris, while the C3 internal clearance allows for greater thermal expansion under high-speed or heavy-load conditions.

With a 20mm bore, 47mm outer diameter, and 14mm width, this bearing is well-suited for compact machinery and electric motors. Its steel cage ensures long-lasting strength and precise ball guidance, even in demanding environments.

Key Features

  • Double Metal Shields (ZZ): Guards against contamination and reduces grease leakage
  • C3 Clearance: Accommodates thermal expansion and higher speeds/load conditions
  • Steel Cage: Delivers robustness and reliable ball separation under load
  • Timken Engineering: Renowned for precision, consistency, and longevity

Technical Specifications

  • Brand: Timken
  • SKU: 6204zzc3-timken
  • Availability: In Stock
  • Weight: 0.1070 KGS
  • Inside Diameter: 20 mm
  • Outside Diameter: 47 mm
  • Width: 14 mm
  • Cage Type: Steel
  • Seals/Shields: Two Metal Shields
  • Clearance: C3
  • Dynamic Load Rating: 12.8 kN
  • Static Load Rating: 6.6 kN
  • Reference Speed Rating: 22,000 RPM
  • Limiting Speed Rating: 15,000 RPM

Applications

  • Electric motors
  • Small gearboxes
  • HVAC systems
  • Power tools
