Timken - Deep Groove Ball Bearing Shielded Metric - Bore 17.0mm | 6203-ZZC3

Timken - Deep Groove Ball Bearing Single Shielded - Bore 17.0mm | 6203Z Single Shielded Bearing for Reliable Medium-Speed Operation The Timken 6203Z Deep Groove Ball Bearing is designed for consistent performance in moderate-speed applications. Equipped with a... Read More
Vendor: Timken
SKU: 6203-ZZC3
$4.66
$4.66
Subtotal: $4.66

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

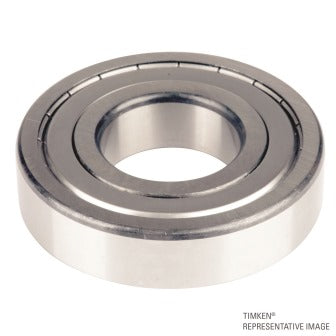

Timken - Deep Groove Ball Bearing Single Shielded - Bore 17.0mm | 6203Z

Single Shielded Bearing for Reliable Medium-Speed Operation

The Timken 6203Z Deep Groove Ball Bearing is designed for consistent performance in moderate-speed applications. Equipped with a single metal shield, it offers protection against dust and debris on one side while maintaining easy access for relubrication or monitoring from the other.

Built to precise tolerances, this bearing features a 17mm bore, 40mm outer diameter, and 12mm width. A durable steel cage ensures stable ball separation and efficient load management, while its standard clearance allows for smooth operation in general-purpose use.

Key Features

  • Single Metal Shield (Z): Guards one side against contaminants while allowing access on the other
  • Standard Clearance: Ideal for typical running conditions with minimal internal play
  • Steel Cage: Provides structural strength and maintains ball spacing under load
  • Compact and Lightweight: Suitable for smaller assemblies and devices
  • Timken Reliability: Manufactured for consistent quality and long-term operation

Technical Specifications

  • Brand: Timken
  • SKU: 6203z-timken
  • Availability: In Stock
  • Weight: 0.0660 KGS
  • Inside Diameter: 17 mm
  • Outside Diameter: 40 mm
  • Width: 12 mm
  • Cage Type: Steel
  • Seals/Shields: One Metal Shield
  • Clearance: Standard
  • Dynamic Load Rating: 9.6 kN
  • Static Load Rating: 4.8 kN
  • Reference Speed Rating: 25,000 RPM
  • Limiting Speed Rating: 17,000 RPM

Applications

  • Power tools
  • Small electric motors
  • Automotive systems
  • Home appliances

Why Buy from Industrial Shed?

  • Genuine Timken Products: Trusted for quality and durability
  • Same-Day Dispatch: Fast shipping for all in-stock items
  • Expert Support: Backed by an experienced Australia-based team

⚙️ Choose the Timken 6203Z Single Shielded Bearing for dependable operation and long service life in compact machinery and general mechanical applications.
