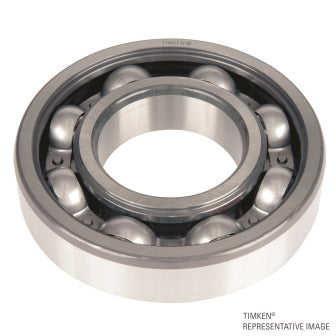

Timken - Deep Grove Metric Ball Bearing - Open Bore 12.0mm | 6201C3
Timken - Deep Grove Metric Ball Bearing - Open Bore 12.0mm | 6201C3
2 customers are viewing this product

Timken - Deep Grove Metric Ball Bearing - Open Bore 12.0mm | 6201C3

Timken - Deep Groove Metric Ball Bearing - Open Bore 12.0mm | 6201C3 High-Speed Open Deep Groove Ball Bearing – 12x32x10mm The Timken 6201C3 is a compact open deep groove ball bearing designed for high-speed applications. With a... Read More
Vendor: Timken
SKU: 6201C3
$4.20
$4.20
Subtotal: $4.20

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Timken - Deep Groove Metric Ball Bearing - Open Bore 12.0mm | 6201C3

High-Speed Open Deep Groove Ball Bearing – 12x32x10mm

The Timken 6201C3 is a compact open deep groove ball bearing designed for high-speed applications. With a 12mm bore and precision-ground raceways, it delivers smooth, reliable performance under both radial and light axial loads. The open design allows for flexibility in lubrication and maintenance, making it ideal for integrated systems or lubricated enclosures.

The C3 internal clearance offers extra space for thermal expansion during continuous operation. Super-finished raceways and optimized ball geometry contribute to low noise, high-speed rotation, and extended bearing life.

Product Information

  • Brand: Timken
  • Part Number: 6201C3
  • Type: Standard Deep Groove Ball Bearing (DGBB)
  • Bearing Design: Open (No Seals/Shields)
  • Clearance: C3 (Loose Internal Clearance)
  • Weight: Light – Ideal for Compact Assemblies

Technical Specifications

  • Bore (Inside Diameter): 12 mm
  • Outside Diameter: 32 mm
  • Width: 10 mm
  • Radius (min): 0.6 mm
  • Dynamic Load Rating (Cr): 6,800 N
  • Static Load Rating (C0r): 3,000 N
  • Reference Speed (Grease): 21,000 RPM
  • Reference Speed (Oil): 30,000 RPM

Key Features

  • Open Configuration: Allows for custom lubrication and inspection
  • High-Speed Capability: Rated for up to 30,000 RPM in oil-lubricated systems
  • Loose C3 Clearance: Supports thermal expansion at high RPMs
  • Reliable Timken Engineering: Super-finished raceways and controlled geometries

Common Applications

  • Electric motors and small appliances
  • Gearboxes and pumps
  • Power tools and fans
  • High-speed industrial machinery
  • Automotive accessory drives

Why Choose Timken from Industrial Shed?

  • Genuine OEM Bearings: Factory-fresh and fully certified
  • High-Speed Performance: Trusted in demanding industrial systems
  • Rapid Shipping: Stocked locally and dispatched fast
  • Knowledgeable Support: We're here to match the right bearing to your application

⚙️ The Timken 6201C3 is your go-to choice for compact, high-speed, open-bearing applications. Precision-engineered and performance-ready.
