Weldclass - TIG Parts Kit PLATINUM PX Glass Cup 17/18/26 Large Diameter with Storage Box | WC-01663
- $188.50
$199.00- $188.50
- Unit price
- per
Vendor:
Weldclass
SKU:
WC-01663
TIG parts kit with glass cups in a compact storage box, large diameter (29mm ID cup), for common 17/18/26 series torches. Tungstens included. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at...
Read moreRead less
Weldclass - TIG Parts Kit PLATINUM PX Glass Cup 17/18/26 Large Diameter with Storage Box | WC-01663
TIG parts kit with glass cups in a compact storage box, large diameter (29mm ID cup), for common 17/18/26 series torches. Tungstens included. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.
► Key Features

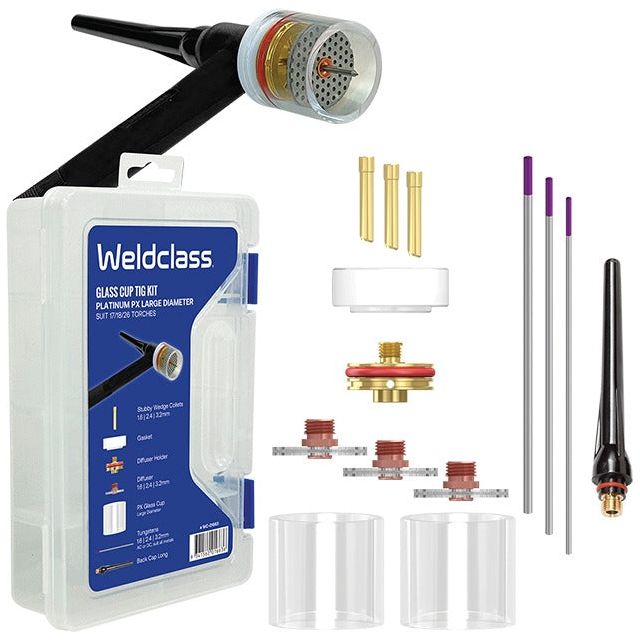

- Complete TIG parts kit with glass cups, ready to fit to a 17/18/26 series torch head
- Large diameter: glass cup is 29mm ID
- Adjustable cup for short or long tungsten stick-out
- Fits common 17/18/26 series TIG torches; compatible with Unimig pyrex 17/18/26 series parts
- High-temperature pyrex-style glass cups for better arc visibility than ceramic cups
- Mesh / gauze filter for smooth gas flow, allowing longer tungsten stick-out
- Wedge collet system for reliable tungsten clamping and to prevent twisting
- Compact storage box with images and part numbers for easy re-ordering
- Genuine Weldclass product
► Technical Specifications
- Model / SKU: WC-01663
- Series: PLATINUM PX glass cup
- Diameter: Large (29mm ID cup)
- Fits: 17/18/26 series TIG torches
- Tungsten/Collet/Diffuser Sizes: 1.6 / 2.4 / 3.2mm
- Includes: Heat shield / insulator x 1; Stubby wedge collet 1.6/2.4/3.2mm x 1 each; Collet body / diffuser holder with o-ring x 1; Diffuser / gas lens with gauze 1.6/2.4/3.2mm x 1 each; Glass nozzle / cup x 2; Long back cap x 1; All-metal (DC & AC/DC) tungsten electrodes 1.6/2.4/3.2mm x 1 each
- Brand: Weldclass
► Why Tradies Grab This
A glass cup lets you see the weld pool in corners and tight spots, and the kit has everything to fit the torch head and start welding. The cup is adjustable for short or long tungsten stick-out.
► Industrial Shed’s Trade Guarantee – Shop with Confidence
- Genuine Product: 100% genuine Weldclass welding gear.
- Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
- Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
- Expert Support: Real trade counter people who know welding — call 03 5978 0078.
► Stock won’t last—get yours now at Industrial Shed!
- Product size
- Large
- Product weight
- 350 g
- Material
- Glass
- Category
- Torches & Accessories
