SP Tools - Toolkit - Vde Insulated Electric Vehicle Service Module | SP55955
- $2,294.50
$3,270.91- $2,294.50
- Unit price
- per
Vendor:
SP Tools
SKU:
SP55955

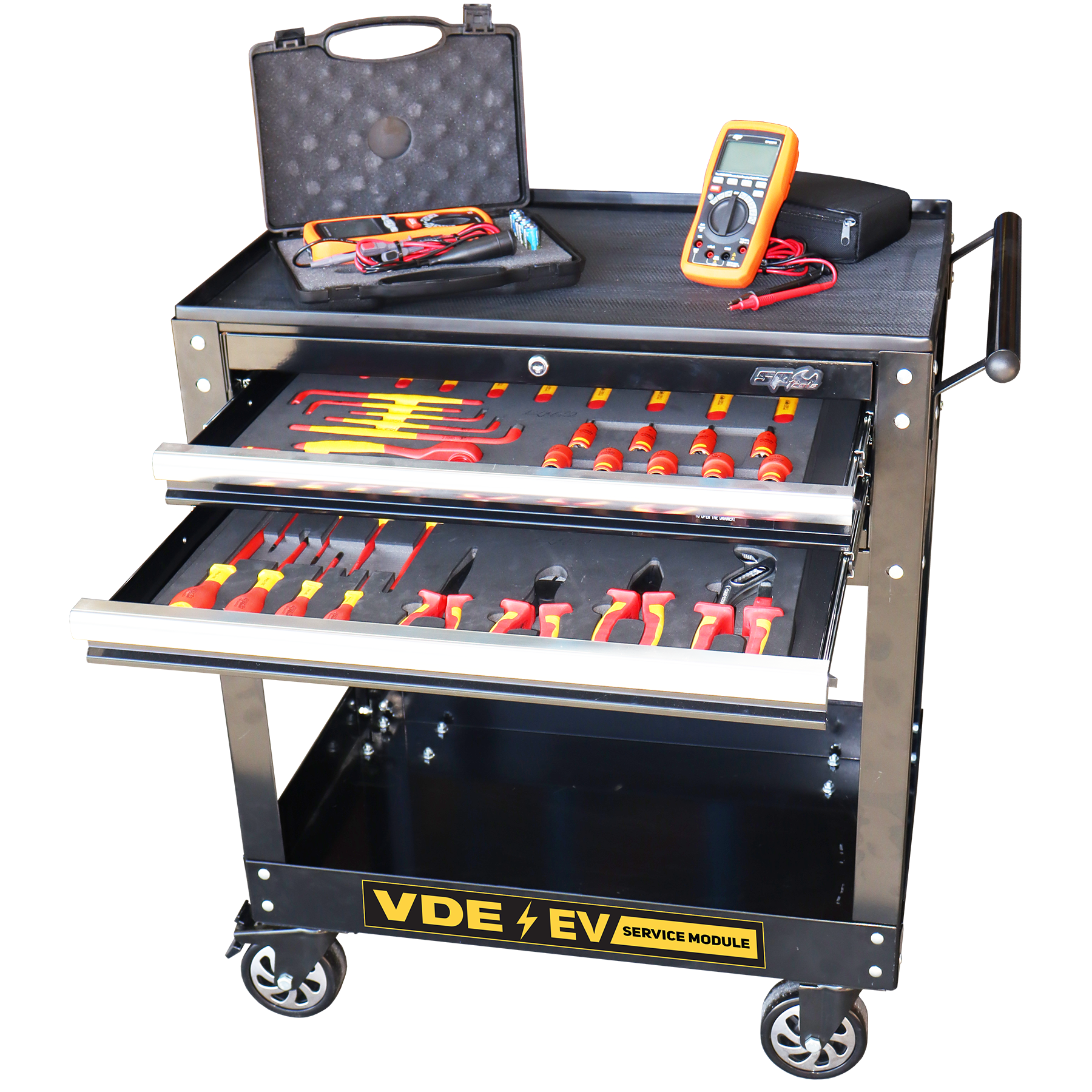

A metric EV service module combining 1000V VDE insulated spanners, sockets, screwdrivers and pliers with a True-RMS multimeter and digital insulation tester, all housed in a 2-drawer tool trolley. Built for workshops servicing hybrid and electric vehicles that need safe, purpose-made insulated...
Read moreRead less
SP Tools - Toolkit - Vde Insulated Electric Vehicle Service Module | SP55955
A metric EV service module combining 1000V VDE insulated spanners, sockets, screwdrivers and pliers with a True-RMS multimeter and digital insulation tester, all housed in a 2-drawer tool trolley. Built for workshops servicing hybrid and electric vehicles that need safe, purpose-made insulated tooling in one mobile station. SP Tools is a trusted name in professional automotive and trade tools, built for the demands of the workshop. Available now at Industrial Shed with fast Australia-wide delivery.
► Key Features
- VDE certified insulated tools tested to 1000V AC and 1500V DC
- Full-length heavy-duty plastic sheath protects the user from live current; Cr-V steel tools

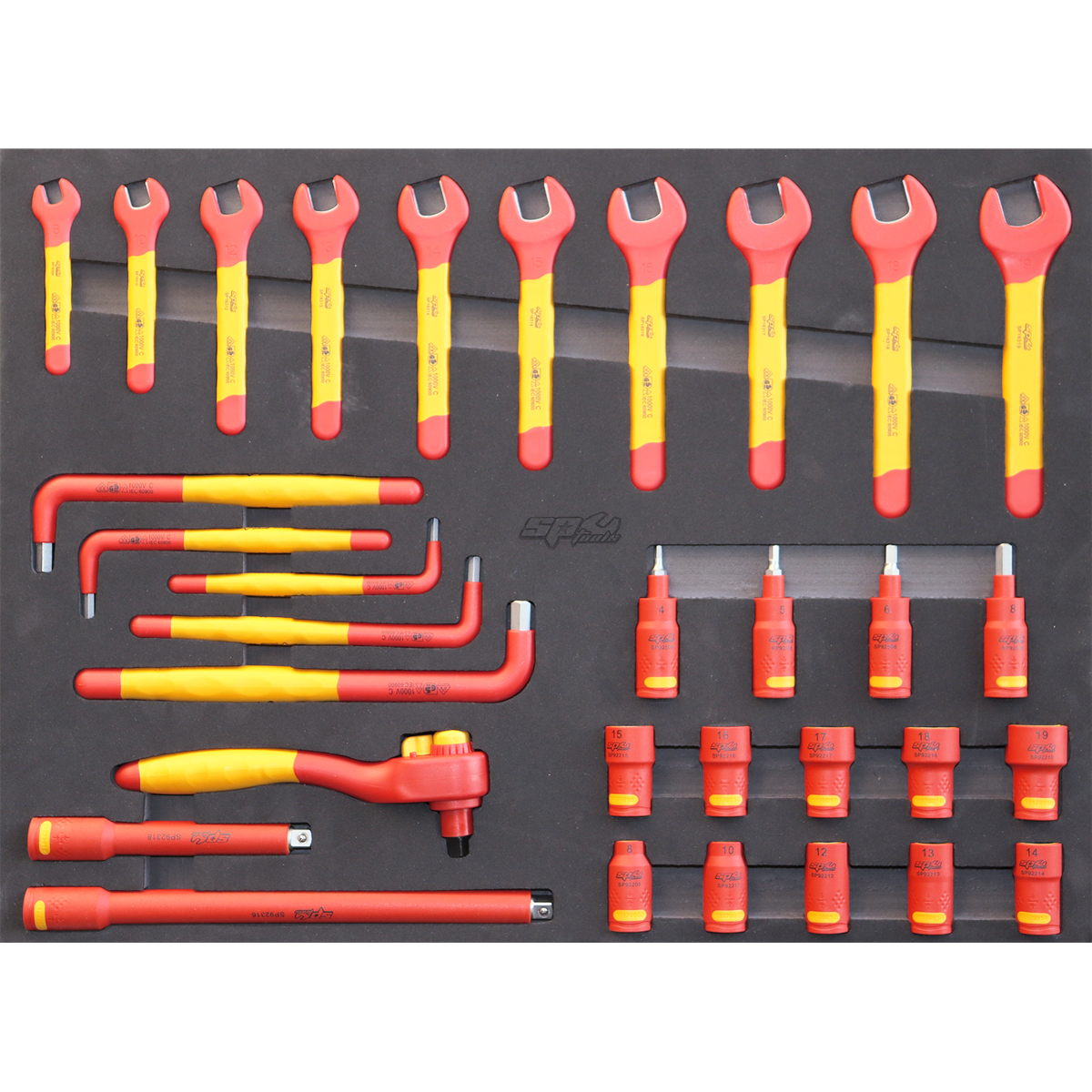

- 32pc tray (SP55900): insulated spanners, sockets, hex sockets, hex keys, ratchet and extensions

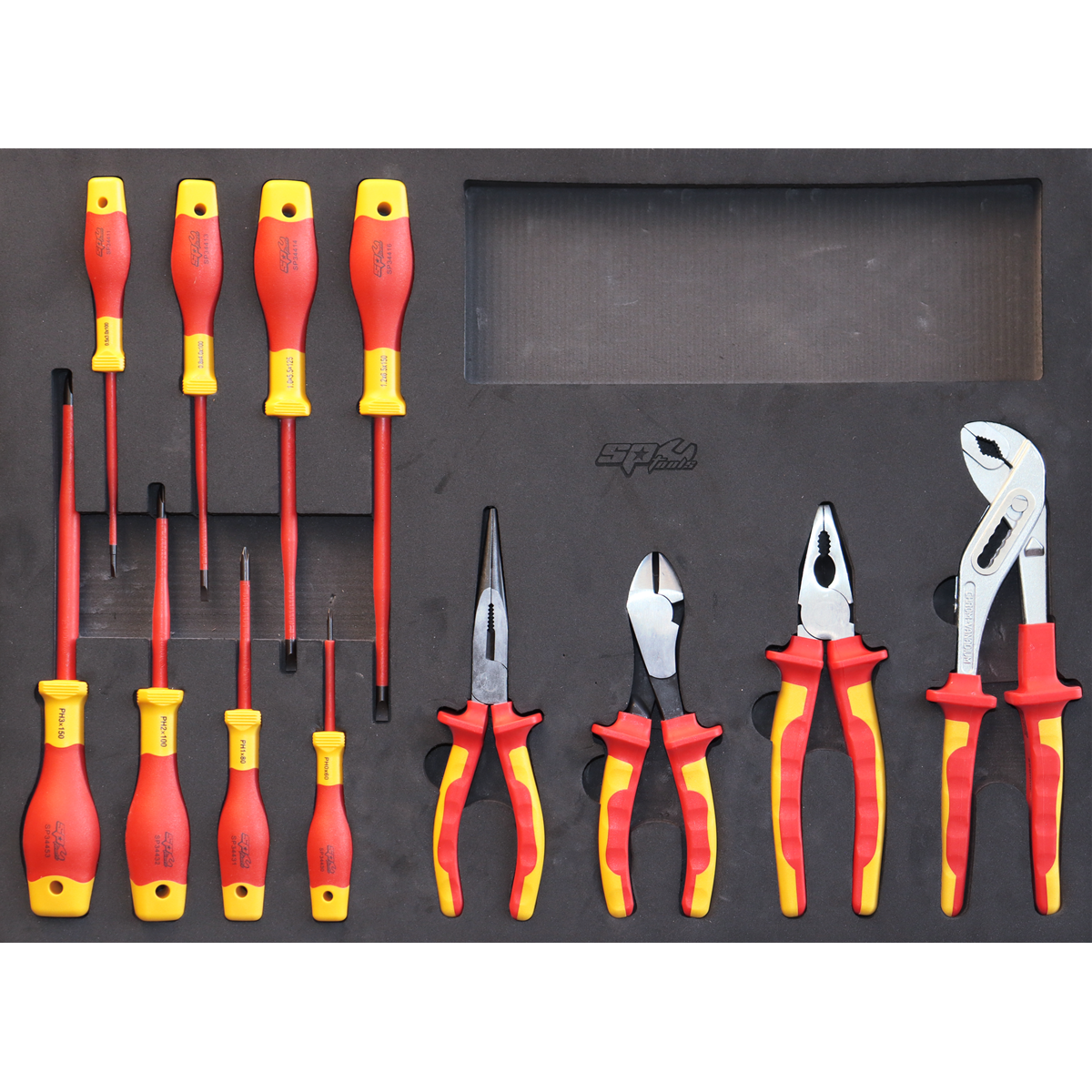

- 12pc tray (SP55910): insulated slotted and Phillips screwdrivers, pliers and cutters with induction-hardened edges

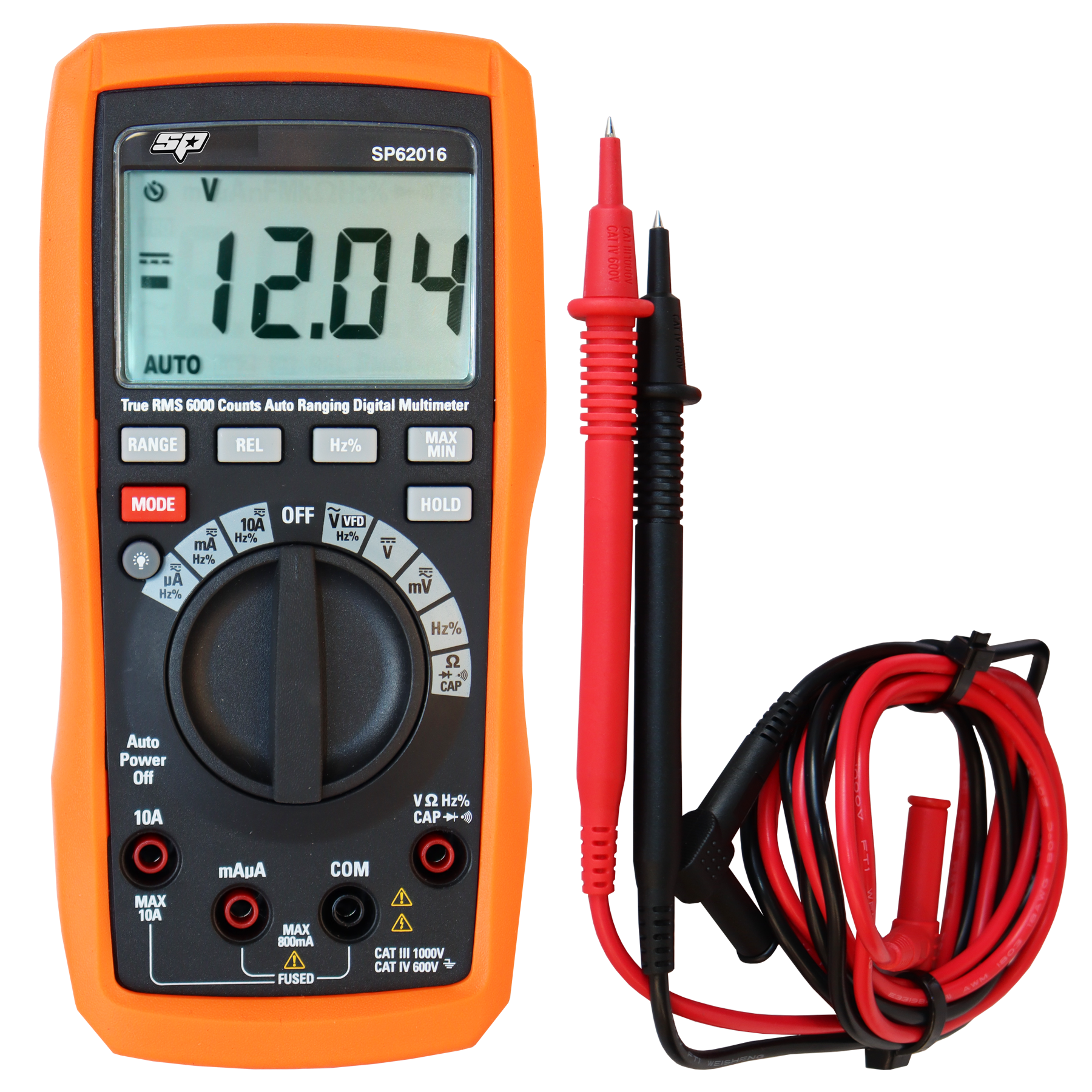

- SP62016 True-RMS auto-ranging multimeter, 6000 count backlit LCD, Cat III 1000V

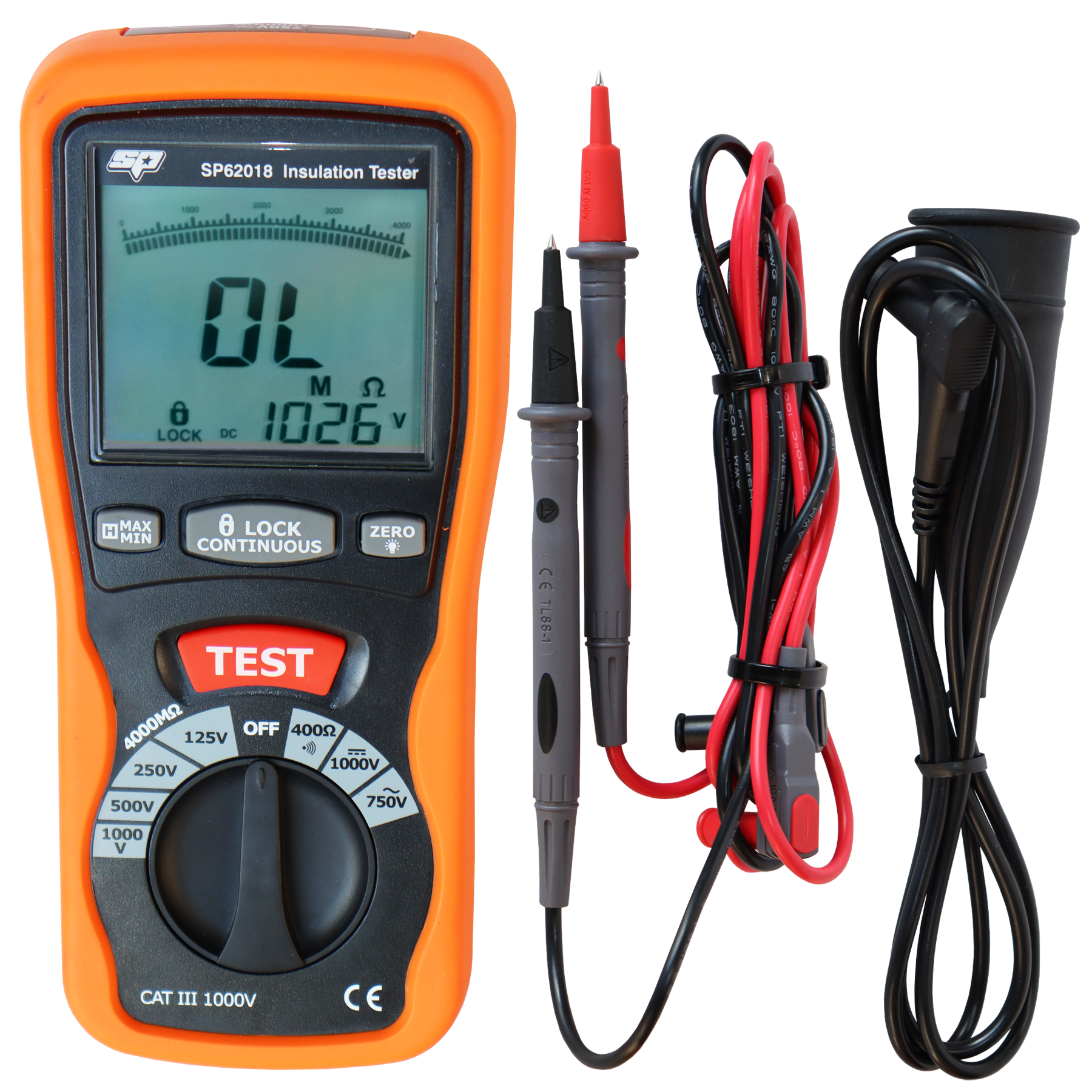

- SP62018 digital insulation tester: 125/250/500/1000V test ranges, up to 4000MΩ, live circuit detection over 30V, CAT III 1000V

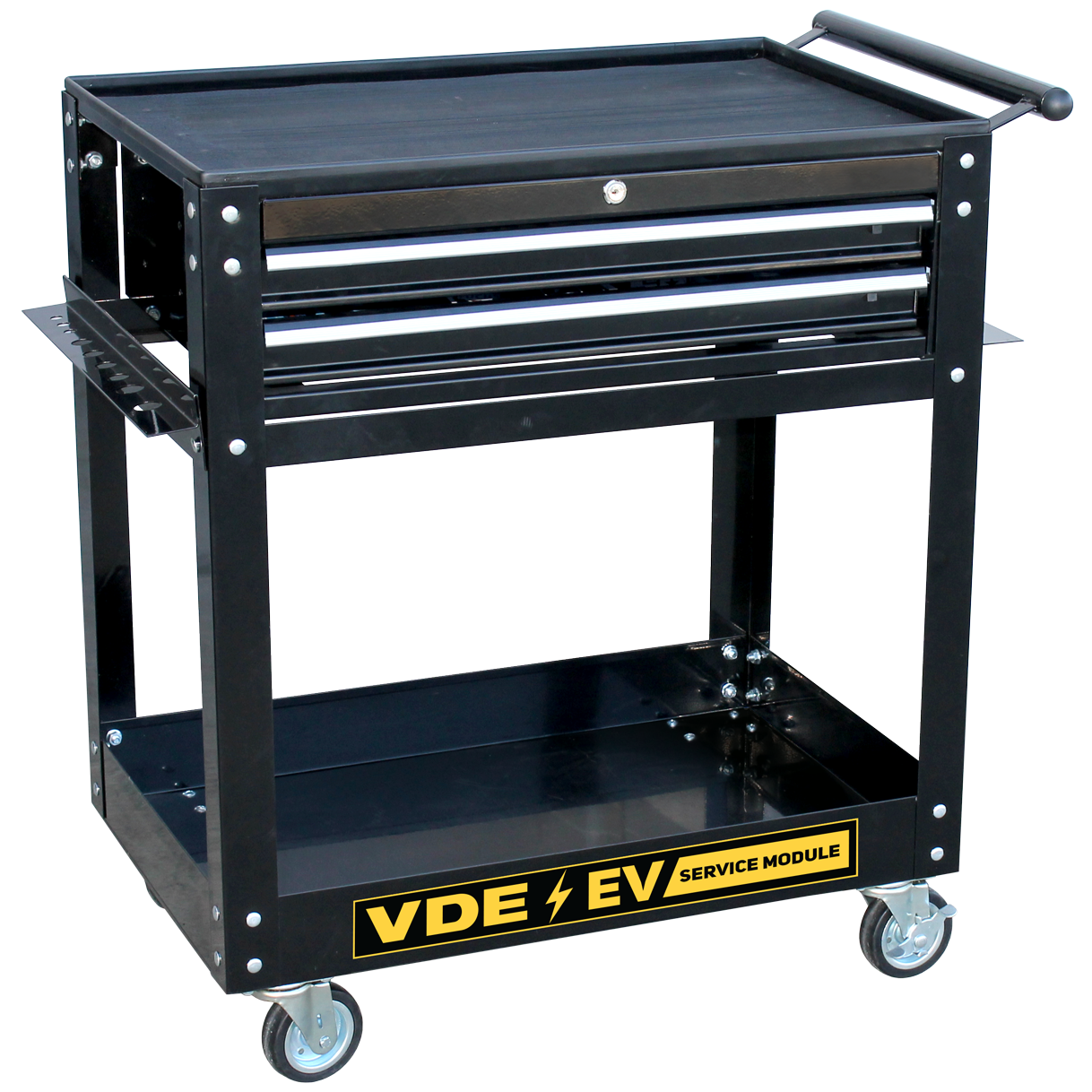

- SP40107 2-drawer trolley with rubber-matted steel worktop, 28 ball-bearing full-extension slides, SP Cliklok and internal locking
- 4 swivel castors (2 lockable); UV-stabilised double powder coat
- Genuine SP Tools product, sold and supported by Industrial Shed
► What’s Included
- SP40107 Tool Trolley - 2 Drawer - Black/Chrome
- SP55900 32pc VDE tray: spanners 8, 10, 12, 13, 14, 15, 17, 18, 19mm; sockets 8, 10, 12, 13, 14, 15, 16, 17, 18, 19mm; hex sockets 4, 5, 6, 8mm; 5pc hex keys; ratchet driver; 2 extension bars
- SP55910 12pc VDE tray: slotted screwdrivers 3.0x100, 4.0x100, 5.5x125, 6.5x150mm; Phillips #0x60, #1x80, #2x100, #3x150mm; combination pliers 200mm; long nose pliers 200mm; diagonal cutters 180mm; multigrip pliers 250mm
- SP62016 Deluxe Automotive Digital Multimeter with probe leads
- SP62018 Digital Insulation Tester
► Ideal For
- Hybrid and EV high-voltage system servicing
- Insulation resistance testing of cables and motor windings
- Safe work near live electrical circuits in the workshop
► Technical Specifications
- Item Number: SP55955
- Sizing: Metric
- Insulation Rating: 1000V AC / 1500V DC (VDE)
- Tool Material: Chrome Vanadium (Cr-V) steel
- Trolley: SP40107, 2 drawers, Black/Chrome
- Trolley Dimensions: 900w x 490d x 890h mm
- Multimeter: SP62016, True-RMS, 6000 count, AC/DC current max 10A, Cat III 1000V
- Insulation Tester: SP62018, test voltages 125V, 250V, 500V, 1000V; resistance up to 4000MΩ; voltage up to 1000V DC / 750V AC; test current 1mA; continuity short-circuit current 200mA; CAT III 1000V
- Warranty: Lifetime Hand Tools / 12 Months Tool Box
- Barcode: 9330514087879
- Brand: SP Tools
► Why Tradies Grab This
Keeps your gear organised, protected and right where you need it.
► Industrial Shed’s Trade Guarantee – Shop with Confidence
- Genuine SP Tools: Authentic stock, backed by the SP Tools manufacturer’s warranty.
- Loyalty Matters: Exclusive trade account perks for repeat customers.
- Real Support, No Runaround: Talk to our crew — real people who know tools.
- Fast Delivery, Every Time: Quick dispatch Australia-wide from Industrial Shed.
► Stock won’t last — get yours now at Industrial Shed!
- Item Number: SP55955
- Sizing: Metric
- Insulation Rating: 1000V AC / 1500V DC (VDE)
- Product weight
- 110000 g
- Warranty
- Lifetime Hand Tools / 12 Months Tool Box
- Category
- General Hand Tools
Request a freight quote
Confirm delivery costs before you order.
- Product weight
- 110000 g
- Product size
- 9
Get a freight quote
Send us your delivery details. Our team will email you a confirmed freight price.
No payment required. A freight request does not reserve stock, place an order or change your cart.
Product specifications
- Category
- General Hand Tools
- Product weight
- 110000 g
- Length
- 1200 mm
- Width
- 850 mm
- Height
- 1130 mm
- Warranty
- Lifetime Hand Tools / 12 Months Tool Box
- Barcode
- 9330514087879
- Item Number
- SP55955
- Sizing
- Metric
- Insulation Rating
- 1000V AC / 1500V DC (VDE)
- Tool Material
- Chrome Vanadium (Cr-V) steel
- Trolley
- SP40107, 2 drawers, Black/Chrome
- Trolley Dimensions
- 900w x 490d x 890h mm
- Multimeter
- SP62016, True-RMS, 6000 count, AC/DC current max 10A, Cat III 1000V
- Insulation Tester
- SP62018, test voltages 125V, 250V, 500V, 1000V; resistance up to 4000MΩ; voltage up to 1000V DC / 750V AC; test current 1mA; continuity short-circuit current 200mA; CAT III 1000V
- Warranty
- Lifetime Hand Tools / 12 Months Tool Box
- Barcode
- 9330514087879
-
