Weldclass - Regulator Nitrogen PLATINUM EHP 0-28,000 kPa (T50/T51 Inlet) | WC-03400
Weldclass - Regulator Nitrogen PLATINUM EHP 0-28,000 kPa (T50/T51 Inlet) | WC-03400 Platinum extra-high pressure (EHP) nitrogen regulator for applications needing delivery pressures up to 28,000 kPa (4,000 psi / 280 bar). Fitted with a Type 50 female... Read More
Vendor: Weldclass
SKU: WC-03400
Product type: Gas Regulators
$990.00
$0.00
$990.00
Subtotal: $990.00

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Weldclass - Regulator Nitrogen PLATINUM EHP 0-28,000 kPa (T50/T51 Inlet) | WC-03400

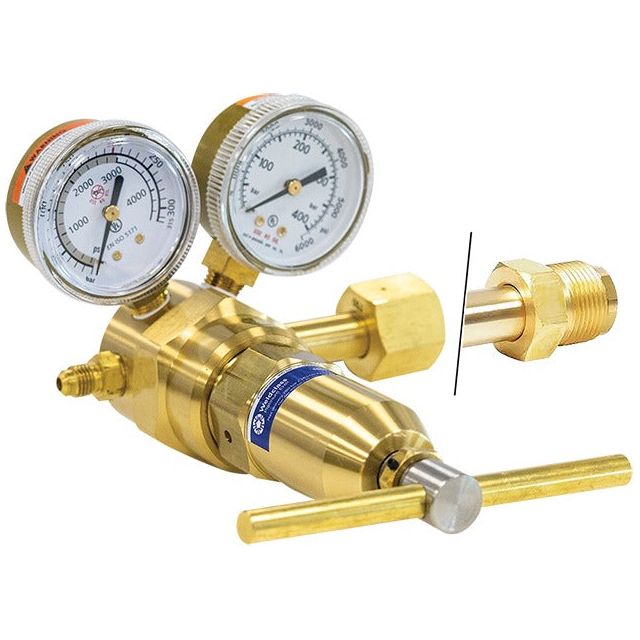

Platinum extra-high pressure (EHP) nitrogen regulator for applications needing delivery pressures up to 28,000 kPa (4,000 psi / 280 bar). Fitted with a Type 50 female inlet for standard nitrogen cylinders, with a Type 51 inlet supplied for EHP cylinders. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.

► Key Features

  • Max delivery 28,000 kPa / 280 bar / 4,000 psi
  • Max inlet (cylinder pressure) 40 MPa / 40,000 kPa / 400 bar / 5,800 psi
  • Type 50 inlet fitted, Type 51 inlet supplied as an additional part
  • 1/4 Flare (JIC 37°) outlet, as Australian Standards does not permit a 5/8" UNF outlet above 2,000 kPa
  • Piston-sensing for smooth, reliable pressure adjustment
  • Heavy-duty PLATINUM series for site work
  • Operating temperature range -20°C to +60°C
  • Genuine Weldclass product

► Technical Specifications

  • Model / SKU: WC-03400
  • Gas: Nitrogen
  • Max Delivery: 28,000 kPa / 280 bar / 4,000 psi
  • Max Inlet (cylinder pressure): 40 MPa / 40,000 kPa / 400 bar / 5,800 psi
  • Outlet: 1/4 Flare (JIC 37° Flare Fitting), thread 7/16-20 (approx 11.1mm O.D.)
  • Inlet - Fitted: Type 50 (W24x2 14 TPI RH Female nut)
  • Inlet - Supplied: Type 51 (1.045" NGO 14 TPI RH Male nut with spigot)
  • Port (inlet & outlet): 1/4" NPT (tapered)
  • Flow Coefficient: Cv 0.11 / Kv 0.095
  • Operating Temperature: -20°C to +60°C
  • Warranty: 12 months standard; 7-year extended warranty available when registered online after purchase
  • Includes: Type 50 inlet (fitted); Type 51 inlet (additional part)
  • Brand: Weldclass

► Why Tradies Grab This

Handles high-pressure nitrogen jobs, with the right inlet in the box for either standard or EHP cylinders.
