Weldclass - Profile Cutter TX-55 (Template Tracing) | WC-05310
Weldclass - Profile Cutter TX-55 (Template Tracing) | WC-05310

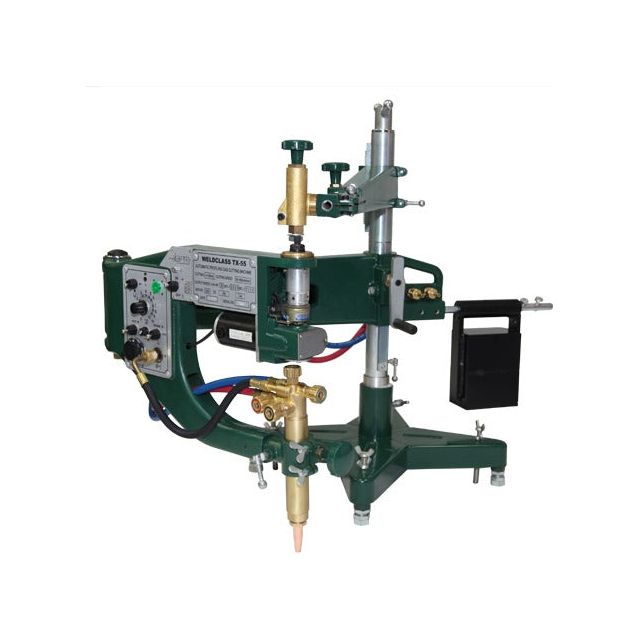

Weldclass - TX-55 Portable Profile Cutter (Template Tracing) | WC-05310

$5,690.00
$0.00
$5,690.00
Vendor: Weldclass
SKU: WC-05310

Portable template-tracing profile flame cutting machine, ideal for cutting multiple shapes from plate steel with Oxy/Acetylene or Oxy/LPG. Weighs approx 55kg, so it is easy to move from job to job. Weldclass is a 100% Australian-owned company whose products are developed for...

Read moreRead less

Weldclass - TX-55 Portable Profile Cutter (Template Tracing) | WC-05310

Portable template-tracing profile flame cutting machine, ideal for cutting multiple shapes from plate steel with Oxy/Acetylene or Oxy/LPG. Weighs approx 55kg, so it is easy to move from job to job. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.

► Key Features

  • Ideal for cutting multiple shapes from plate steel
  • Use with Oxy/LPG or Oxy/Acetylene
  • Cuts up to 150mm thick, travel speed 100-1,000 mm/min
  • Circle cutting to Ø1,700mm on the main mast, with full 360 degree rotation for larger circles
  • Forward and reverse, with controls conveniently placed near the torch
  • Level adjustment on the base for uneven surfaces
  • Very robust, heavy-duty design, portable at approx 55kg
  • 7-year warranty (conditional, registration required)
  • Genuine Weldclass product

► Technical Specifications

  • Model / SKU: WC-05310
  • Type: Portable template-tracing profile cutter
  • Gas: Oxy/Acetylene or Oxy/LPG
  • Max Cutting Thickness: 150mm
  • Travel Speed: 100 - 1,000 mm/min
  • Circle Cutting (Template Arm): Ø30 - 700mm
  • Circle Cutting (Main Mast): Ø1,700mm max
  • Square Cutting Area: 1,200 x 1,200mm
  • Power: 240V - 10A plug
  • Weight: 55kg
  • Warranty: Conditional 7 years (registration required after purchase); standard warranty 24 months
  • Brand: Weldclass

► Why Tradies Grab This

A robust, portable profile cutter for repeat shapes from plate steel, running on either Oxy/Acetylene or Oxy/LPG.

► Industrial Shed’s Trade Guarantee – Shop with Confidence

  • Genuine Product: 100% genuine Weldclass welding gear.
  • Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
  • Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
  • Expert Support: Real trade counter people who know welding — call 03 5978 0078.

► Stock won’t last—get yours now at Industrial Shed!

Product size
Circles to Ø 1 and 700mm
Product weight
73000 g
Warranty
7 years (conditional, registration required)
Material
Carbon Steel
Request a freight quote

Confirm delivery costs before you order.

Subtotal: $5,690.00
Product weight
73000 g
Product size
Circles to Ø 1 and 700mm

Get a freight quote

Send us your delivery details. Our team will email you a confirmed freight price.

Selected product and quantity

Enter four digits to find suburbs.

Where is it going?

We’ll use this to reply to your freight request.

No payment required. A freight request does not reserve stock, place an order or change your cart.
Product specifications
Category
Gas Cutting Machines
Material
Carbon Steel
Product size
Circles to Ø 1 and 700mm
Product weight
73000 g
Length
980 mm
Width
500 mm
Height
870 mm
Warranty
7 years (conditional, registration required)
Barcode
9341562053105
Voltage
240V

  • On time, every time

    Delivery across Australia, with tracking sent after dispatch. Ordering a large or heavy item? Ask our team to confirm freight costs and delivery arrangements before you buy.

    Delivery information

  • Secure payments

    Pay through our secure checkout with the card and express payment options available for your order. Review your items, delivery charges and total before confirming payment.

  • 100% happiness guarantee

    Need help after your purchase? Contact our Somerville team with your order number. We can help with product issues and explain your return options, including conditions and exclusions.

    Returns and support
Description

Weldclass - TX-55 Portable Profile Cutter (Template Tracing) | WC-05310

Portable template-tracing profile flame cutting machine, ideal for cutting multiple shapes from plate steel with Oxy/Acetylene or Oxy/LPG. Weighs approx 55kg, so it is easy to move from job to job. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.

► Key Features

  • Ideal for cutting multiple shapes from plate steel
  • Use with Oxy/LPG or Oxy/Acetylene
  • Cuts up to 150mm thick, travel speed 100-1,000 mm/min
  • Circle cutting to Ø1,700mm on the main mast, with full 360 degree rotation for larger circles
  • Forward and reverse, with controls conveniently placed near the torch
  • Level adjustment on the base for uneven surfaces
  • Very robust, heavy-duty design, portable at approx 55kg
  • 7-year warranty (conditional, registration required)
  • Genuine Weldclass product

► Technical Specifications

  • Model / SKU: WC-05310
  • Type: Portable template-tracing profile cutter
  • Gas: Oxy/Acetylene or Oxy/LPG
  • Max Cutting Thickness: 150mm
  • Travel Speed: 100 - 1,000 mm/min
  • Circle Cutting (Template Arm): Ø30 - 700mm
  • Circle Cutting (Main Mast): Ø1,700mm max
  • Square Cutting Area: 1,200 x 1,200mm
  • Power: 240V - 10A plug
  • Weight: 55kg
  • Warranty: Conditional 7 years (registration required after purchase); standard warranty 24 months
  • Brand: Weldclass

► Why Tradies Grab This

A robust, portable profile cutter for repeat shapes from plate steel, running on either Oxy/Acetylene or Oxy/LPG.

► Industrial Shed’s Trade Guarantee – Shop with Confidence

  • Genuine Product: 100% genuine Weldclass welding gear.
  • Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
  • Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
  • Expert Support: Real trade counter people who know welding — call 03 5978 0078.

► Stock won’t last—get yours now at Industrial Shed!
