McMillan - C Series Cast Iron pump 2 x 3.2Hp, 15A, 240V | C32-Duplex

MCMillan – C Series Cast Iron Pump 2 × 3.2 Hp, 15 A, 240 V |C32‑Duplex Key Features Australian-built with heavy-duty cast iron pump units in duplex configuration for high reliability. Rated to AS4637 and designed with forklift feet and full... Read More
Vendor: McMillan
SKU: C32-Duplex
$4,901.88
$4,901.88
Subtotal: $4,901.88

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.

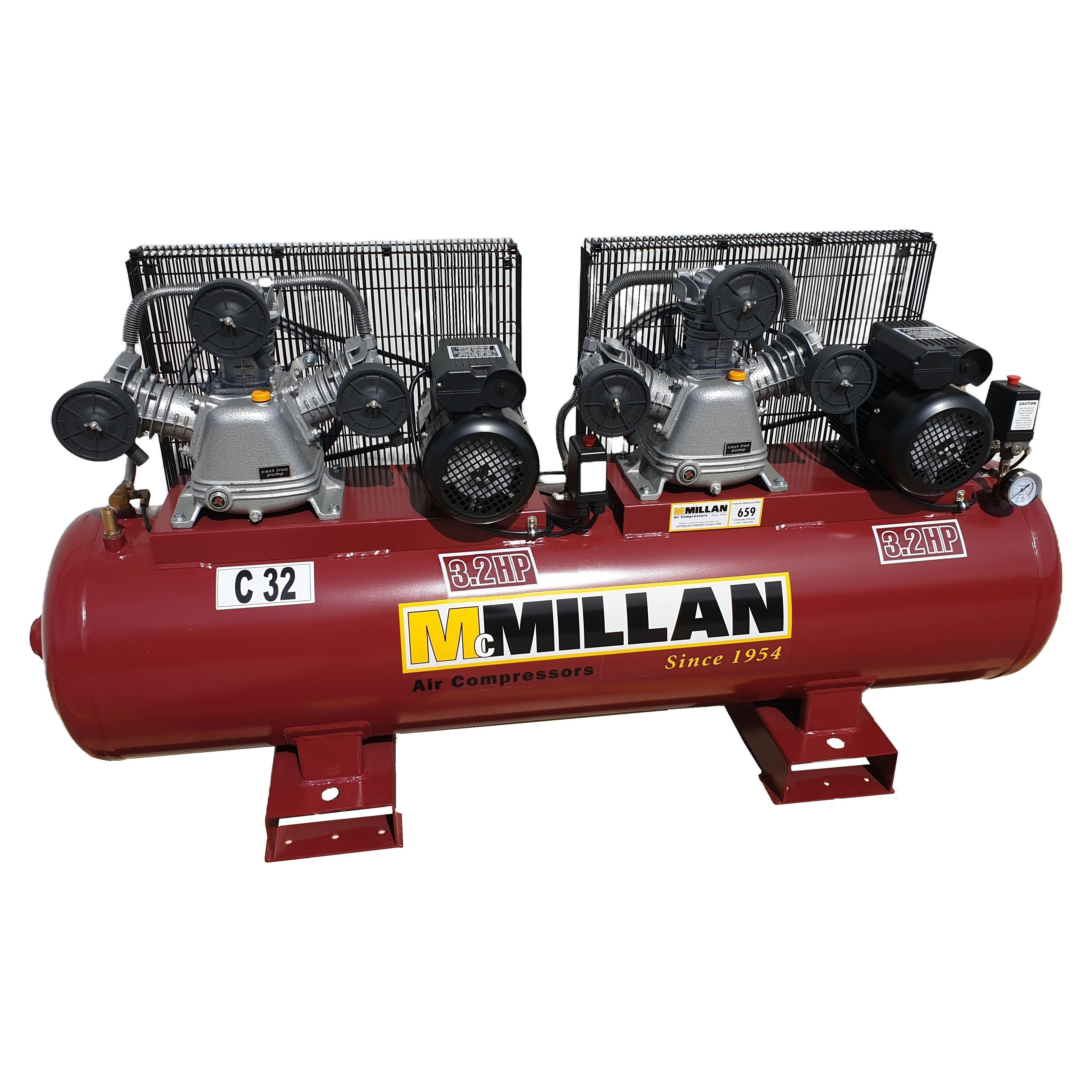

MCMillan – C Series Cast Iron Pump 2 × 3.2 Hp, 15 A, 240 V |C32‑Duplex

Key Features

  • Australian-built with heavy-duty cast iron pump units in duplex configuration for high reliability. Rated to AS4637 and designed with forklift feet and full safety guarding.
  • Features two LB40 cast iron pump modules with efficient reed valves and fully balanced flywheels with large cooling blades for optimal operation.
  • Includes Italian MAXI filter/regulator, NEMA pressure switches, and pressure-controlled auto start/stop.
  • 240 V TECO motors (dual 15 A circuits) with thermal overload protection, supported by a national service network.
  • Backed by a 5‑year warranty on pumps and tank, and a 1‑year warranty on motors and fittings.

Specifications

  • SKU: C32‑Duplex
  • Motors: 2 × 3.2 Hp, 15 A, 240 V
  • Displacement: 32.0 CFM (906 L/min); Free Air Delivery: 23.3 CFM (659 L/min)
  • Pump Units: 2 × LB40 single-stage cast iron pumps (6 total cylinders)
  • Max Pressure: 140 psi (10 bar)
  • Tank: 190 L AS1210-certified with forklift feet
  • Dimensions: approx. 440 × 1800 × 820 mm
  • Weight: approx. 201 kg
