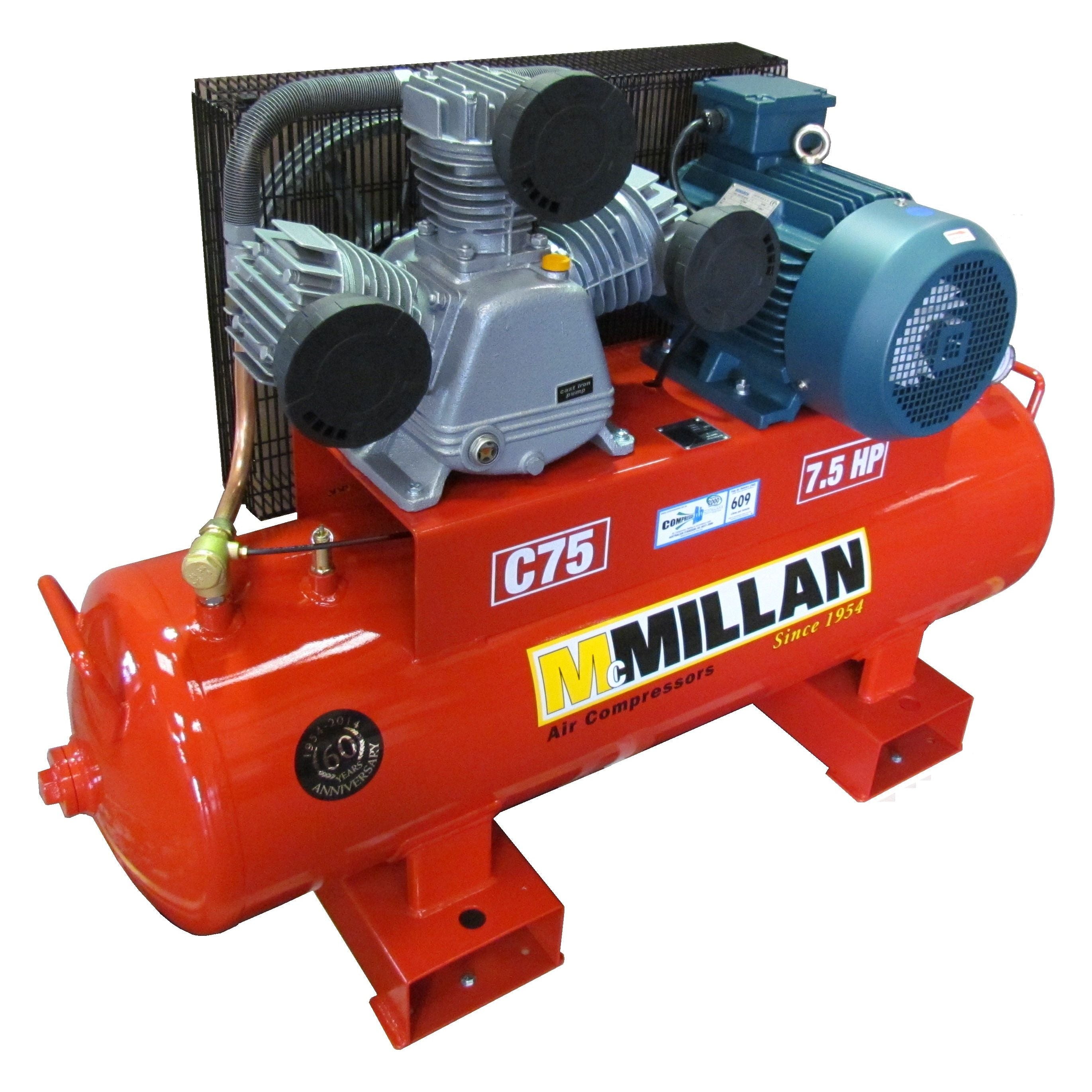

MCMillan – C Series Cast Iron Pump stationary 7.5 Hp, 415 V |C75

Key Features

  • Heavy-duty industrial air compressor built in Australia using high-quality cast iron materials.
  • W-triple cylinder pump design ensures efficient cooling and smooth operation.
  • Reed valve technology and large flywheel cooling blades for consistent performance.
  • Low-speed single-stage motor extends the lifespan of key components.
  • TEFC motor with 415V 3-phase power for high-demand industrial environments.
  • AS1210 certified 155L tank with full OH&S-compliant safety guarding.
  • Factory-fitted pressure switch with auto stop/start control for ease of use.
  • Mounted on robust forklift feet for stability and easy installation.
  • Warranty: 2 years on pump, 5 years on tank, 1 year on motor and fittings.

Specifications

  • SKU: C 75
  • Motor: 7.5 Hp, 415 V, 3-phase, TEFC
  • Displacement: 33.0 CFM (934 L/min)
  • Free Air Delivery: 21.5 CFM (609 L/min)
  • Maximum Pressure: 140 psi (10 bar)
  • Tank Capacity: 155 litres
  • Configuration: W-triple cylinder, cast iron
  • Dimensions (W × L × H): approx. 540 × 1500 × 1450 mm
  • Weight: approx. 215 kg

Why Choose This Model?

  • Engineered for high-volume, continuous operation in commercial workshops and factories.
  • Premium construction for maximum durability under pressure.
  • Compliant with Australian safety and performance standards.
  • Local service and parts support through McMillan's trusted network.
