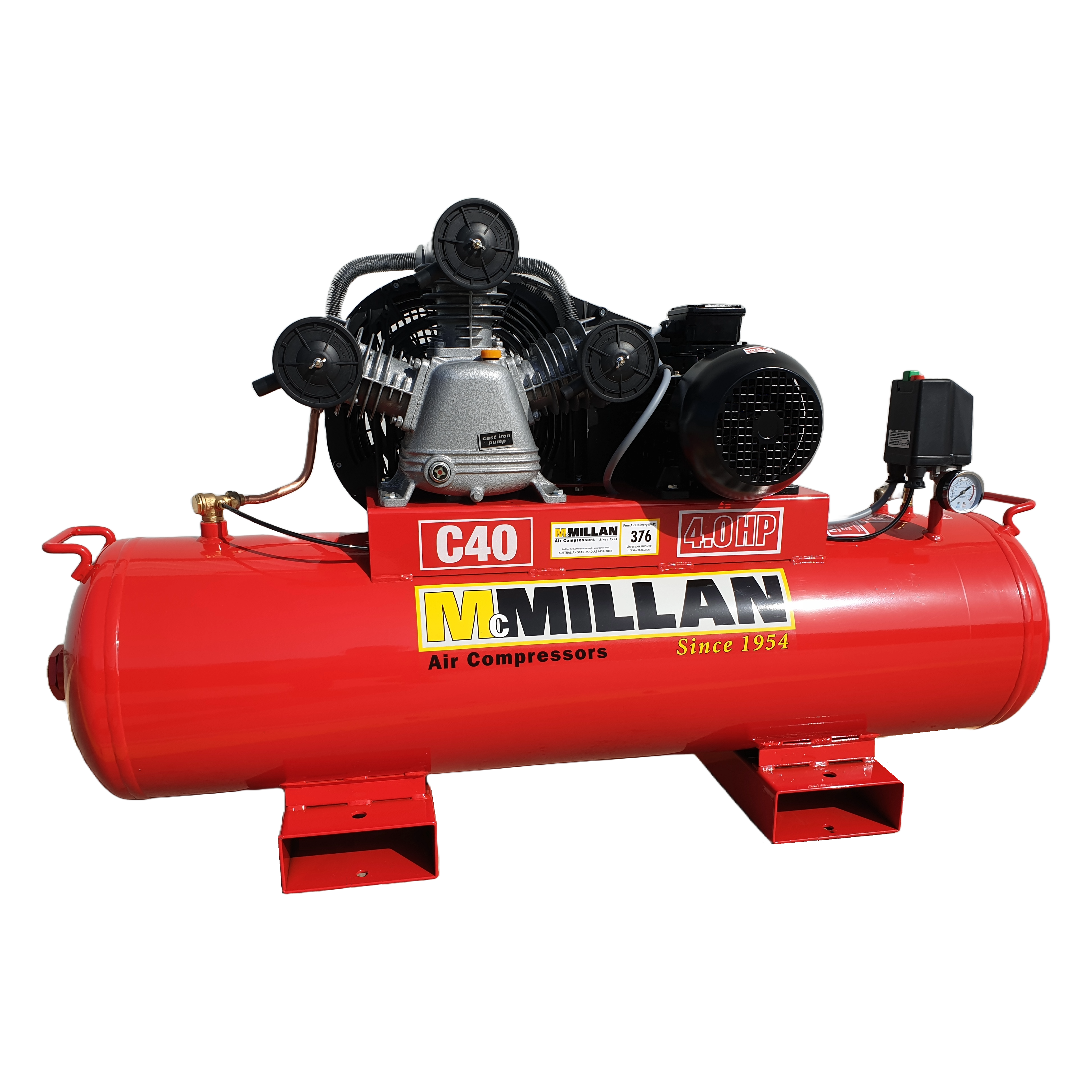

McMillan - C Series Cast Iron pump stationary 4.0Hp, 415V | C40

MCMillan – C Series Cast Iron Pump stationary 4.0 Hp, 415 V |C 40 Key Features Australian-built with heavy-duty close-grain cast iron pump—designed for industrial continuity and durability. W-triple cylinder pump with highly efficient reed valves and balanced flywheel featuring large... Read More
Vendor: McMillan
SKU: C40
$2,669.15
$2,669.15
Subtotal: $2,669.15

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

MCMillan – C Series Cast Iron Pump stationary 4.0 Hp, 415 V |C 40

Key Features

  • Australian-built with heavy-duty close-grain cast iron pump—designed for industrial continuity and durability.
  • W-triple cylinder pump with highly efficient reed valves and balanced flywheel featuring large cooling blades for superior performance.
  • Low-speed single-stage design reduces wear and improves long-term reliability.
  • Equipped with auto stop/start pressure switch and full safety guarding to meet Occupational Health & Safety standards.
  • 415 V WEG totally enclosed fan-cooled motor with forklift feet for industrial installation flexibility.
  • Tank and pump meet AS4637 and AS1210 standards, with full parts and service support.
  • Warranty coverage: 2 years on pump, 5 years on tank, 1 year on motor.

Specifications

  • SKU: C 40
  • Displacement: 19.6 CFM (555 L/min)
  • Free Air Delivery: 13.3 CFM (376 L/min)
  • Motor: 4.0 Hp, 415 V WEG TEFC
  • Max Pressure: 140 psi (10 bar)
  • Tank Capacity: 125 L (AS1210 certified)
  • Pump Model: LB 40 W‑Triple cast iron
  • Cylinders: 3 (W‑triple configuration)
  • Weight: approx. 143 kg
  • Dimensions (W×L×H): approx. 450 × 1450 × 850 mm

Why Buy from Industrial Shed?

  • Built to Last: Heavy-duty cast iron construction made for industrial environments.
  • Consistent Performance: W‑triple pump and low-speed flywheel design provide smooth, sustained airflow.
  • Ready for Industry: 415 V configuration with forklift feet gives installation flexibility.
  • Safety & Compliance: Full AS-grade guarding and certified tank ensure workplace safety.
  • Reliable Support: Comprehensive warranty coverage and access to service parts.
