MCMillan - C Series Cast Iron pump 3.2Hp, 15A, 240V | C 16L-HP
MCMillan - C Series Cast Iron pump 3.2Hp, 15A, 240V | C 16L-HP
2 customers are viewing this product

McMillan - C Series Cast Iron pump 3.2Hp, 15A, 240V | C16L-HP

MCMillan – C Series Cast Iron Pump 3.2Hp, 15A, 240V |C16L-HP Key Features Heavy-duty, Australian-built cast iron pump with 2-stage "high pressure" configuration. Ideal for demanding applications such as truck tyre inflation, bead blasting, and air tools requiring... Read More
Vendor: McMillan
SKU: C16L-HP
$2,820.95
$2,820.95
Subtotal: $2,820.95

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

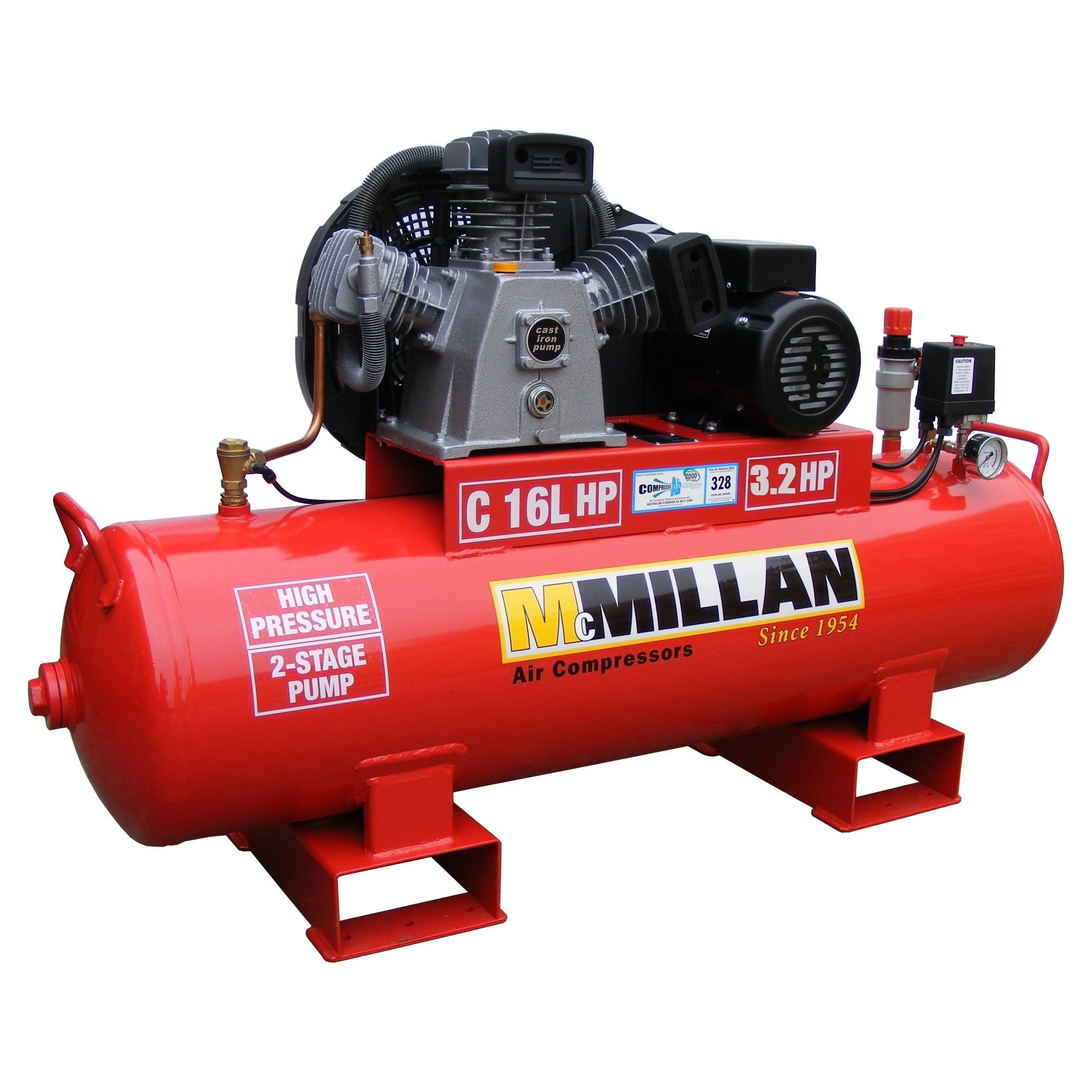

MCMillan – C Series Cast Iron Pump 3.2Hp, 15A, 240V |C16L-HP

Key Features

  • Heavy-duty, Australian-built cast iron pump with 2-stage "high pressure" configuration.
  • Ideal for demanding applications such as truck tyre inflation, bead blasting, and air tools requiring higher PSI.
  • W-triple cylinder design with reed valves and a balanced flywheel for optimal performance and cooling.
  • Includes a filter/regulator kit with two regulated outlets and one unregulated high-pressure outlet for versatile use.
  • Fitted with a Techtop 240V capacitor start/run motor and thermal overload protection.
  • Dual control valve suitable for generator-powered operation.
  • Full AS4637 safety compliance and tank constructed to AS1210 standards.

Specifications

  • SKU: C 16L-HP
  • Displacement: 14.5 CFM (410 L/min)
  • Free Air Delivery: 11.6 CFM (328 L/min)
  • Motor: 3.2Hp, 15A, 240V
  • Max Pressure: 160 PSI
  • Tank Capacity: 125L
  • Cylinders: 3 (W-Triple Configuration)
  • Weight: Approx. 117 kg
  • Dimensions (W × L × H): 400 × 1450 × 900 mm
  • Warranty: 5 Years on Pump and Tank, 1 Year on Motor & Fittings

Why Buy from Industrial Shed?

  • Power You Can Trust: Delivers high PSI performance for heavy-duty operations.
  • Built to Last: Premium cast iron construction backed by a long warranty.
  • Safe & Compliant: Certified to Australian safety standards with full tank and guard protection.
  • Ready to Work: Comes pre-fitted with regulator kit and multiple outlets for flexible use.
  • National Support: Supported by a wide service network and Australian manufacturing expertise.
