Weldclass - Wall-Mounted Fume Extraction Fan ALLCLEAR FA25 + 3m Arm Package | WC-FA253M
- $4,490.00
$4,250.00- $4,490.00
- Unit price
- per
Vendor:
Weldclass
SKU:
WC-FA253M

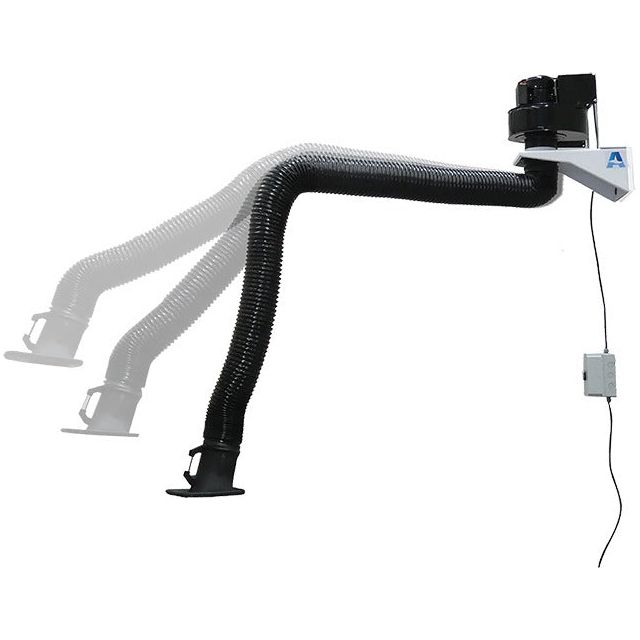

ALLCLEAR FA25 wall-mounted 230V extraction fan package with a 3m pivoting suction arm and wall-mount bracket. Commonly used with ducted systems to move dust and fumes outside or to a central extraction or filter unit. Weldclass is a 100% Australian-owned company whose...
Read moreRead less
Weldclass - Wall-Mounted Fume Extraction Fan ALLCLEAR FA25 + 3m Arm Package | WC-FA253M
ALLCLEAR FA25 wall-mounted 230V extraction fan package with a 3m pivoting suction arm and wall-mount bracket. Commonly used with ducted systems to move dust and fumes outside or to a central extraction or filter unit. Weldclass is a 100% Australian-owned company whose products are developed for Australian welders and metal fabricators. Available now at Industrial Shed with fast Australia-wide delivery.
► Key Features
- Package: FA25 fan with 3m arm and wall-mount bracket
- Single phase ~230V 10A power
- Max air flow 2,500m³ / hour
- 150mm diameter suction hose with 160mm diameter intake hood
- Flexible PVC suction hose with welded steel wire coil
- Temperature resistance up to 120ºC
- Rectangular fan outlet for easy ducting
- Fan includes simple on/off control box
- Extraction fan only, no filter included
- Genuine Weldclass product
► Technical Specifications
- Model / SKU: WC-FA253M
- Arm Length: 3m
- Suction Hose Size: 150mm diameter
- Intake Hood Size: 160mm diameter
- Power Supply: Single phase ~230V 10A
- Motor Size: 1.1kw
- Max Air Flow: 2,500m³ / hour
- Fan Type: Static and dynamic balanced impeller
- Fan Outlet Size (Rectangular): Outside 220 x 170mm / Inside 163 x 125mm
- Fan/Motor Weight: 27kg
- Fan/Motor Dimensions: L438 x W449 x H410mm
- Includes: FA25 fan/motor with wall-mount bracket; 3m suction arm; wall anchor bolts with paper template; on/off switch/control box with 230V 10A plug
- Brand: Weldclass
► Why Tradies Grab This
Gets fumes and dust out of tight workspaces without floor-standing gear, and the pivoting arm stays where you put it. Pair it with ducting or a filtration unit for welding and grinding fumes.
► Industrial Shed’s Trade Guarantee – Shop with Confidence
- Genuine Product: 100% genuine Weldclass welding gear.
- Fast Dispatch: Shipped Australia-wide from our Somerville, VIC warehouse.
- Manufacturer’s Warranty: Backed by Weldclass’ warranty against manufacturing faults.
- Expert Support: Real trade counter people who know welding — call 03 5978 0078.
► Stock won’t last—get yours now at Industrial Shed!
- Product size
- 3m arm
- Product weight
- 51.5 kg
- Material
- Plastic
- Category
- Fume Extractors & Accessories
Request a freight quote
Confirm delivery costs before you order.
- Product weight
- 51.5 kg
- Product size
- 3m arm
Get a freight quote
Send us your delivery details. Our team will email you a confirmed freight price.
No payment required. A freight request does not reserve stock, place an order or change your cart.
Product specifications
- Category
- Fume Extractors & Accessories
- Material
- Plastic
- Product size
- 3m arm
- Product weight
- 51.5 kg
- Length
- 550 mm
- Width
- 1420 mm
- Height
- 600 mm
- Barcode
- 9341562018562
- Voltage
- 230V
-
