EHI - Colson 160mm Grey Performa TPE Fixed Plate I6 Series Castor 225kg | I63AZ-PL4T160

$33.53
$33.53
Vendor: EHI
SKU: I63AZ-PL4T160

The Colson 160mm Grey Performa Rubber Fixed Plate I6 Series Castor is a robust industrial castor designed for smooth, reliable mobility in commercial, workshop and industrial applications. Featuring a Hi-Tech Performa thermoplastic rubber wheel with a polypropylene core, it provides dependable rolling...

Read moreRead less

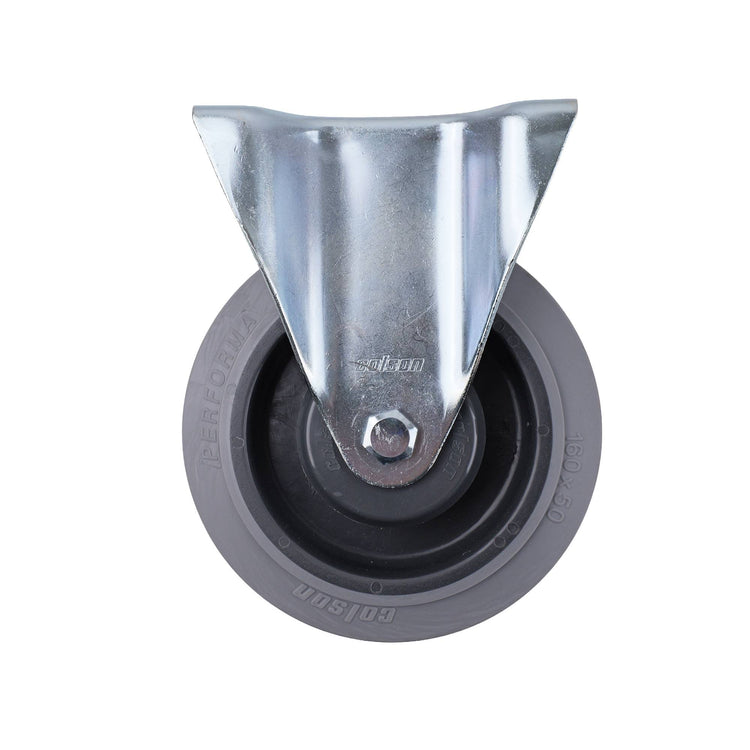

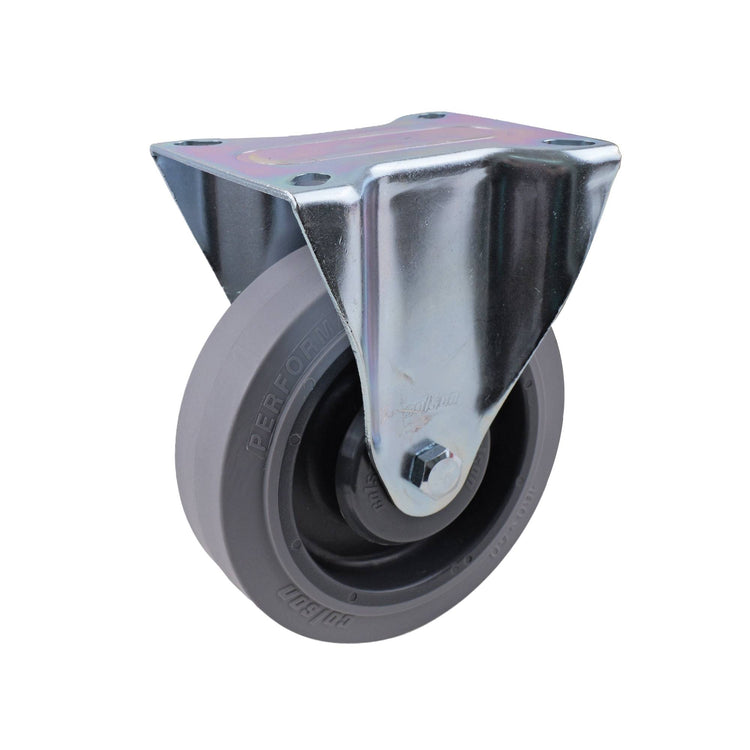

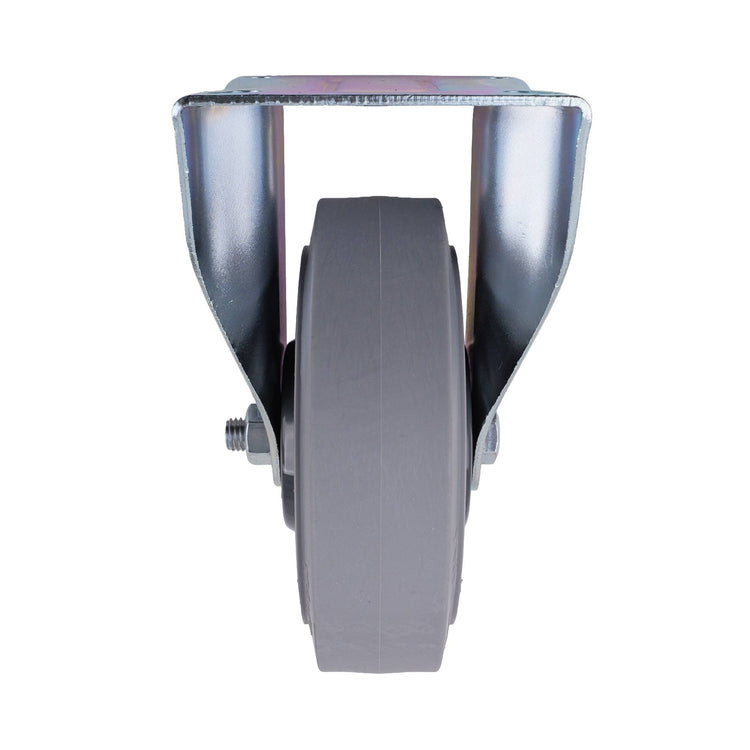

Colson 160mm Grey Performa Rubber Fixed Plate I6 Series Castor – 225kg

The Colson 160mm Grey Performa Rubber Fixed Plate I6 Series Castor is a robust industrial castor designed for smooth, reliable mobility in commercial, workshop and industrial applications. Featuring a Hi-Tech Performa thermoplastic rubber wheel with a polypropylene core, it provides dependable rolling performance for both indoor and outdoor use.

Built with a zinc-plated steel housing and precision steel bearing, this fixed castor offers strength, stability and consistent operation under demanding everyday conditions. The rigid fixed-plate configuration maintains a stable direction of travel, while the large 160mm wheel and 50mm tread provide practical performance when moving equipment and loads.

With a 225kg load capacity, the Colson I6 Series is a dependable choice for trolleys, carts, equipment and other industrial mobility applications requiring a durable fixed castor.

Features

  • Heavy-duty 225kg load capacity

  • 160mm diameter Hi-Tech Performa thermoplastic rubber wheel

  • Durable polypropylene wheel core

  • Strong zinc-plated steel housing

  • Precision steel bearing for smooth rolling performance

  • Rigid fixed castor for stable directional movement

  • Fixed plate mounting for secure installation

  • 50mm tread width

  • Suitable for indoor and outdoor applications

  • Colson I6 Series industrial construction

Specifications

  • Brand: Colson

  • Series: I6 Series

  • SKU: I63AZ-PL4T160

  • Castor Type: Fixed / Rigid

  • Mounting Type: Plate Mount

  • Load Capacity: 225kg

  • Wheel Diameter: 160mm

  • Tread Width: 50mm

  • Wheel Material: Hi-Tech Performa Thermoplastic Rubber

  • Wheel Core Material: Polypropylene

  • Housing Material: Zinc-Plated Steel

  • Bearing Type: Precision Bearing

  • Bearing Material: Steel

  • Raceway Type: Rigid

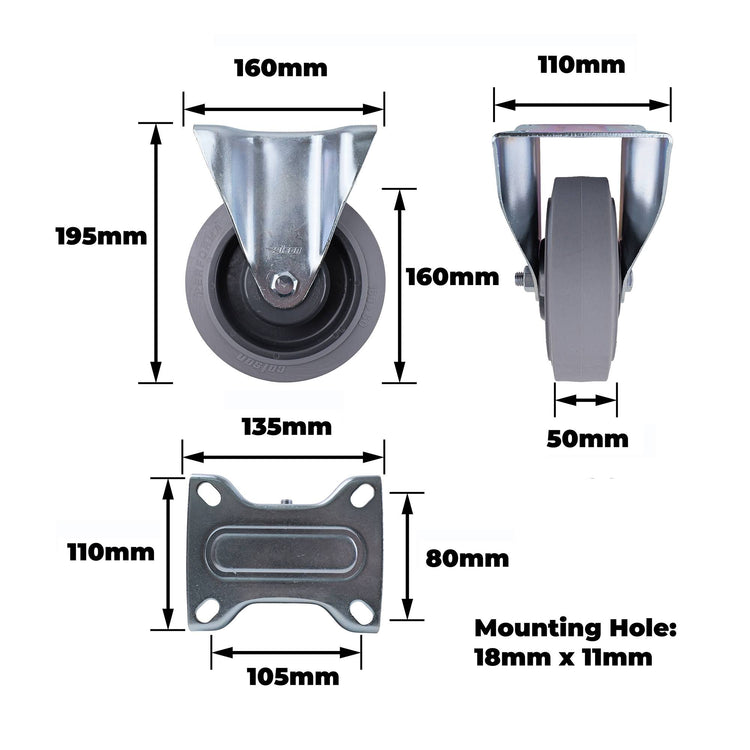

  • Plate Size: 135mm x 110mm

  • Hole Centres: 110/100mm x 85/75mm

  • Mounting Hole Size: 18mm x 11mm

  • Overall Height: 195mm

  • Overall Dimensions: 160mm L x 110mm W x 195mm H

  • Product Weight: 1.71kg

  • Colour: Silver/Grey

  • Indoor Use: Yes

  • Outdoor Use: Yes

Applications

Ideal for use on industrial trolleys, carts, mobile equipment, workshop equipment and material handling applications where a strong fixed castor with smooth rolling performance is required.

Why Choose the Colson I6 Series Fixed Castor?

The Colson I6 Series combines a durable steel housing, precision bearing and Performa rubber wheel to provide reliable everyday mobility. Its 225kg capacity and 160mm wheel diameter make it well suited to demanding industrial and commercial equipment where strength, stability and dependable rolling performance are essential.

Product size
160 mm
Material
Rubber
Trade
Warehouse & Logistics
Category
Lifting & Materials Handling
Shipping calculated at checkout

Enter your delivery address at checkout to see the cost.

Subtotal: $33.53
Product specifications
Category
Lifting & Materials Handling
Material
Rubber
Product size
160 mm
Trade
Warehouse & Logistics
  • Shipped. Tracked. Sorted.

    Delivered Australia-wide, with tracking the moment it leaves the Shed. Big or heavy gear? Call us first and we'll lock in freight before you buy.

    Delivery information
  • We fix what we sell

    Blade sharpening, tool repairs and warranty claims, all supported by our crew. Buy it here, keep it running here.

    Our services
  • We don't do excuses

    We stand behind every tool we sell. Not right? Contact our Somerville crew with your order number. We'll help sort the repair, replacement or return options for your item.

    Returns and support

Colson 160mm Grey Performa Rubber Fixed Plate I6 Series Castor – 225kg

The Colson 160mm Grey Performa Rubber Fixed Plate I6 Series Castor is a robust industrial castor designed for smooth, reliable mobility in commercial, workshop and industrial applications. Featuring a Hi-Tech Performa thermoplastic rubber wheel with a polypropylene core, it provides dependable rolling performance for both indoor and outdoor use.

Built with a zinc-plated steel housing and precision steel bearing, this fixed castor offers strength, stability and consistent operation under demanding everyday conditions. The rigid fixed-plate configuration maintains a stable direction of travel, while the large 160mm wheel and 50mm tread provide practical performance when moving equipment and loads.

With a 225kg load capacity, the Colson I6 Series is a dependable choice for trolleys, carts, equipment and other industrial mobility applications requiring a durable fixed castor.

Features

  • Heavy-duty 225kg load capacity

  • 160mm diameter Hi-Tech Performa thermoplastic rubber wheel

  • Durable polypropylene wheel core

  • Strong zinc-plated steel housing

  • Precision steel bearing for smooth rolling performance

  • Rigid fixed castor for stable directional movement

  • Fixed plate mounting for secure installation

  • 50mm tread width

  • Suitable for indoor and outdoor applications

  • Colson I6 Series industrial construction

Specifications

  • Brand: Colson

  • Series: I6 Series

  • SKU: I63AZ-PL4T160

  • Castor Type: Fixed / Rigid

  • Mounting Type: Plate Mount

  • Load Capacity: 225kg

  • Wheel Diameter: 160mm

  • Tread Width: 50mm

  • Wheel Material: Hi-Tech Performa Thermoplastic Rubber

  • Wheel Core Material: Polypropylene

  • Housing Material: Zinc-Plated Steel

  • Bearing Type: Precision Bearing

  • Bearing Material: Steel

  • Raceway Type: Rigid

  • Plate Size: 135mm x 110mm

  • Hole Centres: 110/100mm x 85/75mm

  • Mounting Hole Size: 18mm x 11mm

  • Overall Height: 195mm

  • Overall Dimensions: 160mm L x 110mm W x 195mm H

  • Product Weight: 1.71kg

  • Colour: Silver/Grey

  • Indoor Use: Yes

  • Outdoor Use: Yes

Applications

Ideal for use on industrial trolleys, carts, mobile equipment, workshop equipment and material handling applications where a strong fixed castor with smooth rolling performance is required.

Why Choose the Colson I6 Series Fixed Castor?

The Colson I6 Series combines a durable steel housing, precision bearing and Performa rubber wheel to provide reliable everyday mobility. Its 225kg capacity and 160mm wheel diameter make it well suited to demanding industrial and commercial equipment where strength, stability and dependable rolling performance are essential.
