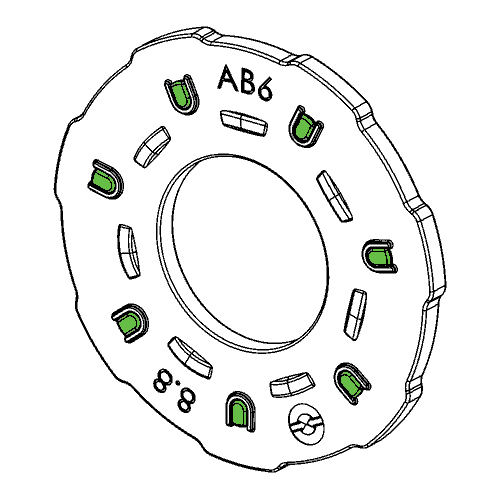

Bremick ViewTite self-indicating washer M36
Bremick ViewTite self-indicating washer M36
2 customers are viewing this product

Bremick - ViewTite Self-Indicating Washer M36 (Box of 50) | WDTMG36VT82-BOX50
Bremick ViewTite Self-Indicating Washer M36 (Box of 50) A box of 50 Bremick ViewTite self-indicating washers for M36 structural bolts. ViewTite is a direct tension indicator (DTI) that does the inspection for you: once the bolt reaches minimum... Read More
Vendor: Bremick
SKU: WDTMG36VT82-BOX50
Product type: Flat Washers
$909.60
$909.60
Subtotal: $909.60

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Bremick ViewTite Self-Indicating Washer M36 (Box of 50)

A box of 50 Bremick ViewTite self-indicating washers for M36 structural bolts. ViewTite is a direct tension indicator (DTI) that does the inspection for you: once the bolt reaches minimum tension, a bright green elastomer is squeezed out of the washer. Green means go. Developed by Bremick and TurnaSure, ViewTite is manufactured to ASTM F959M and suits bolted structural steel connections to AS 4100.

► Key Features

  • Green elastomer appears only when the bolt has reached minimum required tension, for fast visual inspection
  • Patented curved protrusions compress smoothly and evenly as bolt tension rises
  • Elastomer sits on the top face against the hardened washer, so surface finish and oversize holes in the steel don't affect the result
  • Elastomer glows under UV (black) light for night-time and low-light inspection
  • Unique trace number on every washer. Certification is available on the Bremick website by job number or trace number
  • Direct tension indication is an accepted tensioning method under AS/NZS 5131. Torque wrench tensioning is not permitted

► Technical Specifications

  • Suits Bolt: M36 structural (property class 8.8)
  • Internal Diameter: 37.8 mm
  • Radius R1 / R2: 41.21 / 42.8 mm
  • Thickness: 4.8 mm
  • Min. Bolt Tension at Full Indication: 475 kN (Bremick data)
  • Inspection Gap at Bolt Tension: 0.125 mm
  • Hardness: 37 HRC max.
  • Material: Carbon steel
  • Standard: ASTM F959M
  • Box Quantity: 50 washers
  • Bremick Part No.: WDTMG36VT82
  • Brand: Bremick

► How To Use

  • Pre-installation: test three samples of each diameter, length and heat number combination in a bolt tension calibration device, using the same crew and tools. Results should show at least 1.05 times the AS 4100 minimum bolt tension.
  • Fit the ViewTite under the component being turned, usually the nut. If it goes under the bolt head, add an AS/NZS 1252 structural washer under the ViewTite.
  • Bring every bolt in the connection to snug-tight first. The elastomer does not release during snug-tightening.
  • Tension each bolt until the green elastomer is clearly visible and matches your reference sample, verified with a feeler gauge.
  • Tensioning must be carried out by a competent person. Always work to the full AS/NZS 5131 standard and the project specification.

► Applications

  • Structural steel connections in commercial, industrial and civil projects
  • Jobs where every bolt must be inspected, including night work and poorly lit sites
  • Fabricators and erectors looking to cut inspection time against feeler-gauging every DTI

► Related Products

► Downloads

► Ordering & Stock

Sold online by the full box of 50 only. We have access to the ViewTite range through Bremick. For project quantities or certification requests, get in touch with the Industrial Shed crew and we will confirm availability and lead time.
