Bremick - K0 8.8 Structural Bolt Assembly Galvanised M24 x 200 (Box of 20) | K08MG242001-BOX20
Bremick K0 8.8 Structural Bolt Assembly Galvanised M24 x 200 (Box of 20) A box of 20 Bremick K0 property class 8.8 structural bolt assemblies, M24 x 200mm, hot dip galvanised. K0 assemblies are manufactured and tested to... Read More
- $190.15
- $190.15
- Unit price
- per
On Time, Every Time
Reliable delivery guaranteed.
Secure Payments
Shop with confidence.
100% Happiness Guarantee
Only at Industrial Shed.
Bremick K0 8.8 Structural Bolt Assembly Galvanised M24 x 200 (Box of 20)

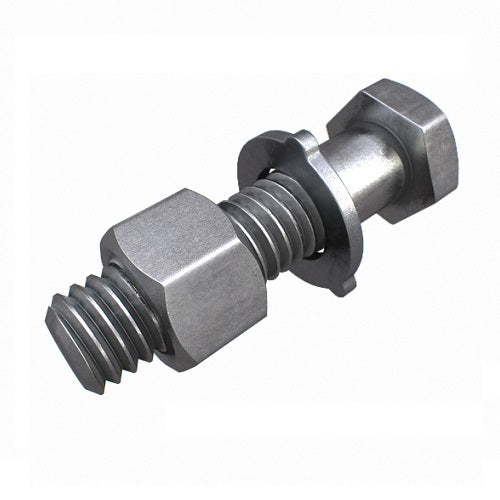

A box of 20 Bremick K0 property class 8.8 structural bolt assemblies, M24 x 200mm, hot dip galvanised. K0 assemblies are manufactured and tested to AS/NZS 1252.1:2016 and AS/NZS 1252.2:2016, the standard for high-strength structural bolting called up by AS 4100 and AS/NZS 5131. Each assembly is a bolt, Class 8 nut and hardened washer, supplied together.
► Key Features
- Property class 8.8 high-strength structural bolt, Class 8 nut and hardened washer
- Manufactured and tested to AS/NZS 1252.1:2016 and AS/NZS 1252.2:2016
- Unique trace headmark on every bolt for full batch traceability
- Test certificates available online from Bremick using the job number on the box or the trace number on the bolt: bremick.com.au/certificates
- Hot dip galvanised for corrosion protection on exposed and outdoor steelwork
- Suits snug-tight, part-turn and direct tension indicator tensioning methods
► Technical Specifications
- Assembly: Bolt + nut + washer
- Thread: M24 metric coarse
- Length: 200mm (under head)
- Property Class: 8.8 bolt / Class 8 nut
- Standard: AS/NZS 1252.1:2016, AS/NZS 1252.2:2016
- Finish: Hot dip galvanised to AS 1214
- Head: Heavy hex, Bremick headmark + unique trace number
- AS 4100 Min. Bolt Tension: 210 kN
- Box Quantity: 20 assemblies
- Box Weight: 18.54 kg
- Bremick Part No.: K08MG242001
- Brand: Bremick
► Applications
- Steel frame connections in commercial, industrial and civil structures
- Bolted connections tensioned to AS/NZS 5131 (part-turn or direct tension indicator)
- Fabricator and erector supply where certified, traceable assemblies are specified
► Tensioning Notes
- AS/NZS 5131 accepts two methods for tensioning high-strength structural bolts: part-turn, and direct tension indication.
- Torque wrench tensioning is not permitted, because thread condition, lubrication and galvanising make the torque-to-tension relationship unreliable.
- Bring every bolt in the connection to snug-tight before final tensioning.
- Tensioning must be carried out by a competent person. Always work to the full standard and the project specification.
► Related Products
- Bremick K0 Class 8 Structural Nut M24 (NSTMG24K082)
- Bremick K0 Structural Washer M24 (WK0MG2400W2)
- Bremick Direct Tension Indicator Washer M24 (WDTMG2400W2)
► Ordering & Stock
Sold online by the full box of 20 only. For larger project quantities, mixed sizes or certification requests, get in touch with the Industrial Shed crew and we will confirm availability and lead time with Bremick.
