Bordo - 1/8" X 27 NPT Bottoming HSS Tap | 3052-1/8B
Bordo – 1/8" x 27 NPT Bottoming HSS Tap | 3052-1/8B The Bordo 1/8" x 27 NPT Bottoming HSS Tap is a professional pipe threading tool from Bordo’s High Speed Steel (HSS) NPT (National Pipe Taper) tap range,... Read More
Vendor: Bordo
SKU: 3052-1/8B
Product type: Tap
$86.17
$0.00
$86.17
Subtotal: $86.17

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

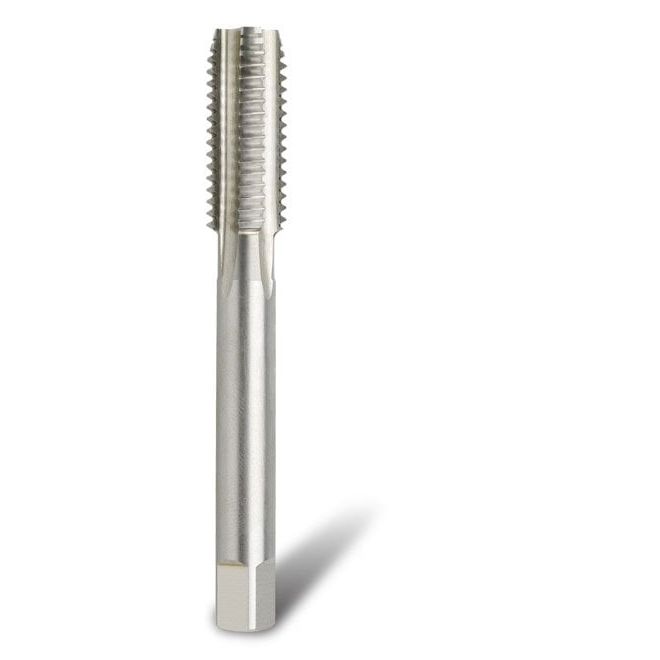

Bordo – 1/8" x 27 NPT Bottoming HSS Tap | 3052-1/8B

The Bordo 1/8" x 27 NPT Bottoming HSS Tap is a professional pipe threading tool from Bordo’s High Speed Steel (HSS) NPT (National Pipe Taper) tap range, engineered to produce accurate tapered internal pipe threads right to the bottom of blind holes. Designed for trade, workshop and plumbing applications, this bottoming tap delivers reliable thread engagement with minimal run-out — essential for quality pipe connections.

Manufactured from durable high speed steel, the 1/8" diameter tap features a 27 threads-per-inch (TPI) NPT thread form, based on the ANSI/ASME B1.20.1 standard for tapered pipe threads. NPT threads form a seal as they are torqued, with the taper angle allowing the thread flanks to compress against each other — although a thread sealant or tape is typically required for leak-free performance. Bottoming taps have a short lead (two threaded lead) to ensure minimal thread run-out and allow you to cut threads as deep as possible in a blind hole. Suitable for both hand and general machine use in medium tensile materials, this HSS tap offers dependable performance in pipe and fluid system installations.

Bordo’s precision engineering and quality manufacturing standards provide the durability and accuracy required for professional threading tasks. With Industrial Shed’s fast dispatch and trade support, you’ll have the right pipe-threading tool ready for every job.

Product Type: Bottoming HSS Tap
Brand: Bordo
Thread Size: 1/8" x 27 NPT
Thread Form: National Pipe Taper (NPT) – ANSI/ASME B1.20.1 Standard
Lead: Bottoming (minimal thread run-out)
Material: High Speed Steel (HSS)
Drill Diameter: 8.4 mm
Overall Length: 59 mm
Pitch (TPI): 27
Pack Qty: 1
Application: Tapered pipe thread cutting to bottom of blind holes & general purpose NPT tapping

► Key Features

‣ 1/8" diameter with 27 TPI NPT thread for tapered pipe connections
‣ Bottoming lead ensures minimal thread run-out to blind hole base
‣ Manufactured from durable high speed steel for long tool life
‣ Straight flute design suitable for hand or machine use
‣ Meets ANSI/ASME B1.20.1 NPT standards for tapered threads

► Why Tradies and Contractors Buy This

‣ Produces clean, accurate tapered NPT internal threads
‣ Bottoming design allows maximum usable thread depth
‣ Trusted HSS construction stands up to workshop and job site use
‣ Ideal for plumbing, fluid systems, hydraulics and mechanical assembly
‣ Backed by Industrial Shed’s fast dispatch and trade support

► Stock won’t last — get yours now at Industrial Shed!
