Bordo - 5/16" X 24 UNF Bottoming HSS Tap | 3034-5/16B
2 customers are viewing this product

Bordo - 5/16" X 24 UNF Bottoming HSS Tap | 3034-5/16B
Bordo – 5/16" x 24 UNF Bottoming HSS Tap | 3034-5/16B The Bordo 5/16″ x 24 UNF Bottoming HSS Tap is a precision-engineered fine thread cutting tool from Bordo’s High Speed Steel range, designed to cut Unified National... Read More
Vendor: Bordo
SKU: 3034-5/16B
Product type: Tap
$29.02
$0.00
$29.02
Subtotal: $29.02

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

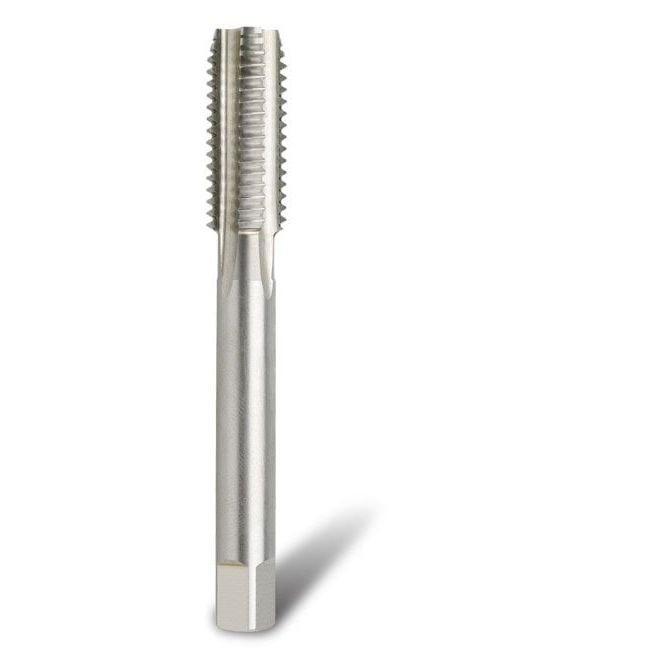

Bordo – 5/16" x 24 UNF Bottoming HSS Tap | 3034-5/16B

The Bordo 5/16″ x 24 UNF Bottoming HSS Tap is a precision-engineered fine thread cutting tool from Bordo’s High Speed Steel range, designed to cut Unified National Fine (UNF) threads right to the bottom of blind holes with minimal thread run-out. Built for professional workshop and trade use, this bottoming tap delivers excellent thread quality and accurate internal threading performance.

Manufactured from premium High Speed Steel (HSS), this tap features a bottoming lead (approximately two threads) that allows you to achieve full thread depth in blind hole applications. The 5/16″ major diameter with 24 threads per inch (TPI) conforms to the UNF standard, offering finer pitch threads with increased tensile stress area and superior resistance to thread stripping compared to coarse threads — ideal for medium tensile materials including aluminium, brass, bronze, plastics and mild steels. Suitable for both hand and general machine threading, this tap is a dependable choice for a wide range of fabrication, maintenance and assembly tasks.

Bordo is a trusted industrial tooling brand in Australia, known for quality taps and dies that deliver reliable performance in demanding environments. Industrial Shed makes sure you have fast access to this essential bottoming tap when you need it on site or in the workshop.

Product Type: Bottoming HSS Tap
Brand: Bordo
Thread Size: 5/16″ x 24 UNF
Material: High Speed Steel (HSS)
Lead: Bottoming (2 threads)
Thread Form: UNF (Unified National Fine)
Drill Diameter (approx): 7.14 mm (for 24 TPI UNF)
Overall Length (approx): 69 mm (typical for this series)
Part Number: 3034-5/16B
Application: Bottoming thread cutting in blind holes for aluminium, brass, bronze, plastics & mild steels

► Key Features

‣ 5/16″ x 24 UNF fine-pitch threads for secure, high-strength engagement
‣ Bottoming lead design ensures minimal thread run-out to full depth
‣ High Speed Steel construction for strength, durability and wear resistance
‣ Suitable for hand and general machine use
‣ Ideal for aluminium, brass, bronze, plastics & mild steels

► Why Tradies and Contractors Buy This

‣ Achieve full thread depth in blind hole applications
‣ Precision internal threading with excellent finish
‣ Durable HSS build for consistent workshop performance
‣ Versatile use across fabrication, maintenance and assembly tasks
‣ Trusted Bordo industrial quality backed by Industrial Shed’s fast dispatch and support

► Stock won’t last — get yours now at Industrial Shed!
