Bordo - 5/16" X 18 Bsw Bottoming HSS Tap | 3028-5/16B
2 customers are viewing this product

Bordo - 5/16" X 18 Bsw Bottoming HSS Tap | 3028-5/16B
Bordo – 5/16" x 18 BSW Bottoming HSS Tap | 3028-5/16B The Bordo 5/16" x 18 BSW Bottoming HSS Tap is a professional-grade British Standard Whitworth (BSW) thread cutting tool designed to deliver full-depth, accurate internal threads in... Read More
Vendor: Bordo
SKU: 3028-5/16B
Product type: Tap
$30.81
$0.00
$30.81
Subtotal: $30.81

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Bordo – 5/16" x 18 BSW Bottoming HSS Tap | 3028-5/16B

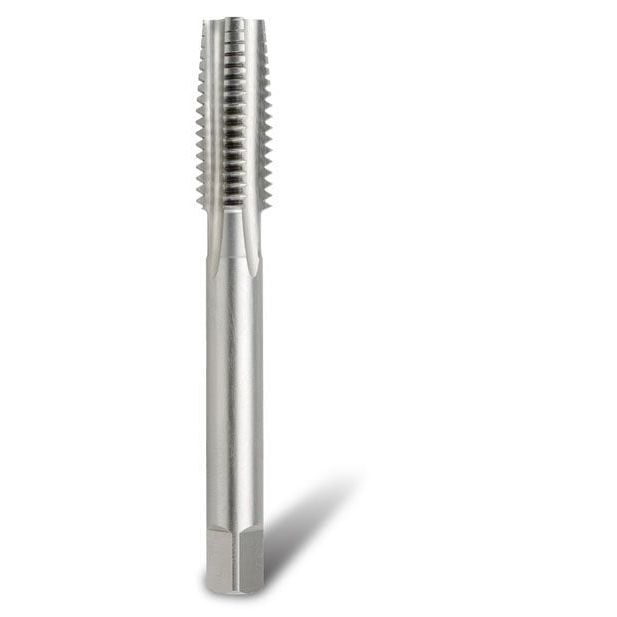

The Bordo 5/16" x 18 BSW Bottoming HSS Tap is a professional-grade British Standard Whitworth (BSW) thread cutting tool designed to deliver full-depth, accurate internal threads in the bottom of blind holes. Ideal for workshop, fabrication, restoration and general industrial use, this tap ensures reliable thread continuity and minimal run-out when threading to the bottom surface.

Manufactured from durable high-speed steel (HSS), this BSW bottoming tap features the classic 55° thread form with rounded roots and crests — the traditional Whitworth standard originally developed by Sir Joseph Whitworth and specified in BS84:1956. Bottoming taps have a short two-thread lead that allows the cutting to reach as close as possible to the base of a blind hole after a taper or intermediate tap has started the thread. With a 5/16" diameter and 18 threads per inch (TPI), this tap is suitable for internal thread cutting in medium tensile materials and can be used for both hand and general machine tapping operations.

Bordo is recognised in Australia for delivering high-quality industrial tooling backed by robust manufacturing standards. Industrial Shed ensures you have fast access to trusted trade-grade threading tools when you need them on site or in the workshop.

Product Type: Bottoming Tap
Brand: Bordo
Diameter: 5/16" (inch)
Thread Pitch: 18 TPI (BSW)
Material: High-Speed Steel (HSS)
Thread Form: British Standard Whitworth (BSW)
Lead: Bottoming (two-thread lead)
Drill Diameter (approx): ~6.5 mm
Overall Length (approx): ~72 mm
Pack Quantity: 1
Part Number: 3028-5/16B
Application: Full-depth internal thread cutting in medium tensile materials

► Key Features

‣ 5/16" x 18 British Standard Whitworth bottoming design for minimal thread run-out
‣ Manufactured from high-speed steel for strength and wear resistance
‣ Classic 55° BSW thread form with rounded roots and crests for traditional Whitworth compatibility
‣ Two-thread lead enables tapping deep into blind holes
‣ Suitable for hand or general machine tapping in workshop environments

► Why Tradies and Contractors Buy This

‣ Excellent for finishing threads to the bottom of blind holes
‣ Durable HSS construction suited to trade and workshop environments
‣ Ideal for restoration, fabrication and mechanical work requiring BSW threads
‣ Trusted Bordo tooling backed by strong manufacturing standards
‣ Supported by Industrial Shed’s fast dispatch and trade support

► Stock won’t last — get yours now at Industrial Shed!
