Description

Bordo – 1-3/4″ × 5 BSW Bottoming HSS Tap | 3028-1.3/4B

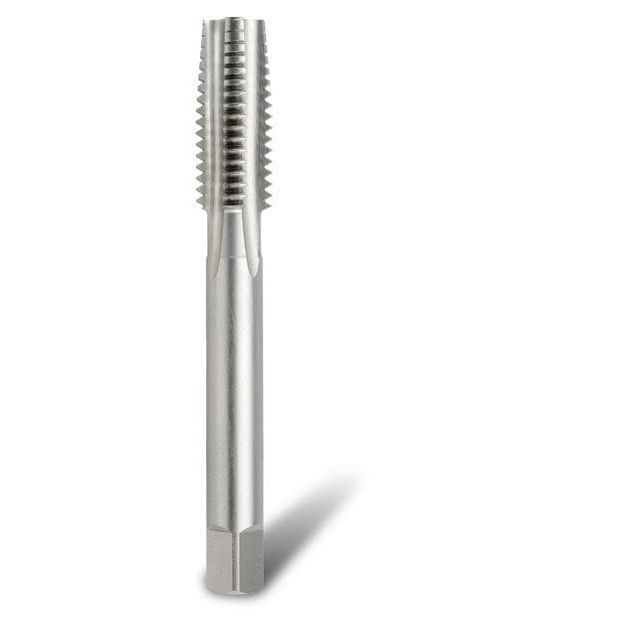

The Bordo 1-3/4″ × 5 BSW Bottoming HSS Tap is a precision-engineered British Standard Whitworth (BSW) bottoming hand and machine tap designed for producing full-depth internal threads with minimal thread run-out in blind holes. Built to classic BSW thread specifications, this bottoming tap delivers strong, accurate threads for workshop, fabrication, maintenance and general trade applications. The traditional Whitworth thread form dates back to Sir Joseph Whitworth’s original specification and is commonly used in vintage, industrial and heavy engineering applications.

Manufactured from durable High Speed Steel (HSS), this tap features the characteristic 55° BSW thread angle with rounded thread roots and crests, ensuring strong thread engagement and excellent structural integrity. Bottoming taps have a lead of two threads and are typically used after an initial taper or intermediate tap to complete threading to the bottom of a blind hole, making this tool ideal for precision threading with minimal run-out.

Bordo is a trusted industrial tooling brand in Australia, known for delivering dependable performance and quality manufacturing. Industrial Shed ensures fast access to trusted Bordo threading tools when you need them on site or in the workshop.

Product Type: Bottoming Tap
Brand: Bordo
Diameter: 1-3/4″ (inch)
Thread Pitch: 5 TPI (BSW)
Material: High Speed Steel (HSS)
Thread Form: British Standard Whitworth (BSW, 55°)
Flute Type: Straight bottoming
Part Number: 3028-1.3/4B
Drill Diameter (recommended): ~39 mm
Overall Length (approx): ~187 mm
Application: Precision bottoming threads in blind holes for hand and general machine use

► Key Features

‣ 1-3/4″ × 5 TPI BSW bottoming thread form for British Standard Whitworth applications
‣ High Speed Steel (HSS) construction for strength, durability and wear resistance
‣ Traditional 55° BSW thread angle with rounded roots and crests for strong engagement
‣ Bottoming lead (two threads) for minimal thread run-out in blind holes
‣ Designed for both hand and general machine tapping

► Why Tradies and Contractors Buy This

‣ Ideal for completing threads to the bottom of blind holes with minimal run-out
‣ Strong, clean threads for dependable assembly fit-ups
‣ Built for everyday workshop and on-site conditions
‣ Trusted Australian industrial tooling quality
‣ Backed by Industrial Shed’s fast dispatch and trade support

► Stock won’t last — get yours now at Industrial Shed!
