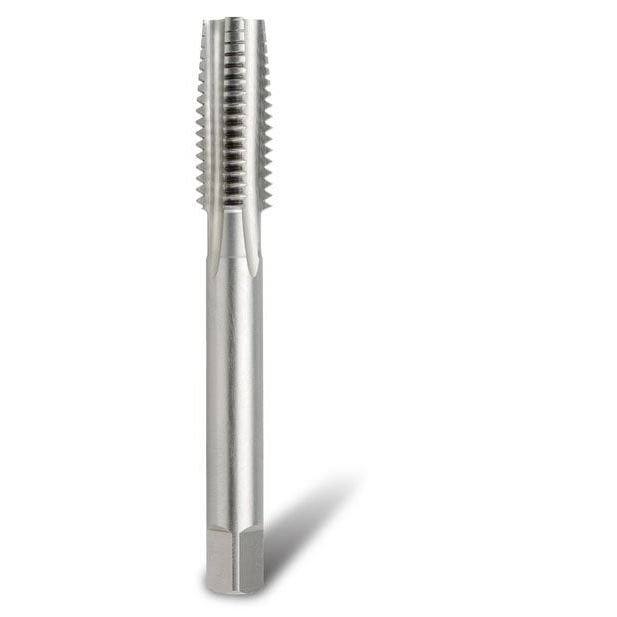

Bordo - 1-1/8" X 7 Bsw Bottoming HSS Tap | 3028-1.1/8B
2 customers are viewing this product

Bordo - 1-1/8" X 7 Bsw Bottoming HSS Tap | 3028-1.1/8B
Bordo – 1-1/8" x 7 BSW Bottoming HSS Tap | 3028-1.1/8B The Bordo 1-1/8" x 7 BSW Bottoming HSS Tap is a professional-grade British Standard Whitworth (BSW) bottoming hand and machine tap, engineered to cut full-depth internal threads... Read More
Vendor: Bordo
SKU: 3028-1.1/8B
Product type: Tap
$376.15
$0.00
$376.15
Subtotal: $376.15

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Bordo – 1-1/8" x 7 BSW Bottoming HSS Tap | 3028-1.1/8B

The Bordo 1-1/8" x 7 BSW Bottoming HSS Tap is a professional-grade British Standard Whitworth (BSW) bottoming hand and machine tap, engineered to cut full-depth internal threads right to the bottom of blind holes in medium tensile materials. Designed for reliable workshop and industrial use, this bottoming tap provides strong and accurate thread engagement with minimal thread run-out — ideal for mechanical, fabrication, restoration and precision maintenance tasks where BSW threading is required.

Manufactured from premium High Speed Steel (HSS), this 1-1/8" tap uses the classic BSW thread form, featuring a **55° thread angle with rounded roots and crests** — a traditional design developed by Sir Joseph Whitworth and specified under BS84:1956. Bottoming taps have a shortened lead and are typically used after a taper or intermediate tap to complete threads all the way to the base of the hole. Suitable for both hand tapping and general machine use, this HSS bottoming tap delivers dependable performance in a variety of workshop and on-site applications.

Bordo is known for producing high-quality, precision tooling that meets trade and industrial standards. Industrial Shed ensures you have fast access to this trusted BSW bottoming HSS tap when you need reliable threading performance on site or in the workshop.

Product Type: Bottoming Tap
Brand: Bordo
Diameter: 1-1/8"
Thread Form: British Standard Whitworth (BSW)
Pitch (Threads Per Inch): 7 TPI
Material: High Speed Steel (HSS)
Thread Angle: 55° (Whitworth)
Drill Diameter (Pilot): 25 mm
Lead: Bottoming (2 threads)
Overall Length: 138 mm
Pack Quantity: 1
Part Number: 3028-1.1/8B
Application: Bottoming internal BSW threads to full depth in medium tensile materials (hand & machine use)

► Key Features

‣ 1-1/8" x 7 BSW bottoming tap for full-depth threads in blind holes
‣ Manufactured from premium High Speed Steel for strength and durability
‣ Classic BSW 55° thread form with rounded roots and crests for traditional fastener compatibility
‣ Bottoming lead design minimises thread run-out and enhances thread engagement
‣ Suitable for both hand tapping and general machine use

► Why Tradies and Contractors Buy This

‣ Delivers clean, accurate BSW threading right to the bottom of blind holes
‣ Trusted HSS construction built for workshop and industrial use
‣ Ideal for fabrication, mechanical, restoration and engineering applications
‣ Designed to be paired with taper/intermediate taps for complete threading sequences
‣ Backed by Industrial Shed’s fast dispatch and trade support

► Stock won’t last — get yours now at Industrial Shed!
