Alemlube - Assembled Base (7 Section) | 3.DMx.07

Alemlube - Assembled Base (7 Section) | 3.DMx.07

$509.30
$0.00
$509.30
Vendor: Alemlube
SKU: 3.DMX.07

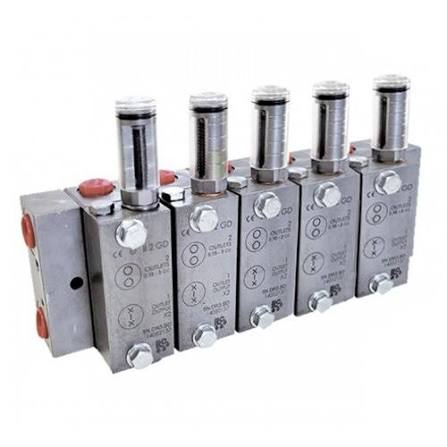

The Alemlube DMX 3.DMX.07 is a 7 section pre-assembled base designed for DMX progressive modular lubrication systems. It provides the foundation for installing DMX metering elements, allowing lubricant to be accurately distributed through automatic oil or grease systems.

Read moreRead less

Alemlube DMX Pre-Assembled Base – 7 Section | 3.DMX.07

The Alemlube DMX 3.DMX.07 is a 7 section pre-assembled base designed for DMX progressive modular lubrication systems. It provides the foundation for installing DMX metering elements, allowing lubricant to be accurately distributed through automatic oil or grease systems.

Key Features

  • Pre-assembled 7 section base for DMX modular divider systems
  • Designed to accept DMX metering elements in progressive lubrication circuits
  • Modular construction allows system configuration, servicing, and expansion
  • Can be installed and connected before metering elements are fitted
  • Final base includes air purge valves for system setup and servicing
  • Zinc-Nickel plated steel construction for corrosion resistance

Technical Specifications

  • Type: DMX Pre-Assembled Base
  • Number of Sections: 7
  • System Type: Progressive modular lubrication system
  • Working Pressure: Minimum 15 Bar / Maximum 5,800 PSI (400 Bar)
  • Lubricant Compatibility: Mineral oil minimum 15 cSt at working temperature; grease up to NLGI-2
  • Working Temperature: -40°C to +120°C
  • Inlet Thread: 1/4" BSP
  • Outlet Thread: 1/8" BSP
  • Gasket: Viton 90sh O-Ring
  • Protective Coating: Zinc-Nickel, 800 hour salt spray tested
  • Material: Steel, Zn-Ni plated free of Cr-V
  • Air Purge: 2 valves included in final base
  • Torque Tightening – Base: 8 Nm
  • Torque Tightening – Elements: 15 Nm
  • Brand: Alemlube
  • Part No.: 3.DMX.07

Why Tradies Buy This

Ideal for building a 7 section DMX lubrication manifold without starting from loose individual base parts. It saves setup time, supports accurate lubricant distribution, and gives maintenance teams a solid foundation for a dependable automatic lubrication system.

Why Choose Alemlube at Industrial Shed

  • Modular Flexibility: Build systems to suit specific machinery layouts
  • High Pressure Capability: Rated up to 5,800 PSI / 400 Bar
  • Service Friendly: Designed for easy element installation and replacement
  • Trusted Trade Brand: Proven in industrial lubrication systems

► Stock won’t last — get yours now at Industrial Shed!
