Alemlube - Assembled Base (4 Section) | 3.DMx.04
2 customers are viewing this product

Alemlube - Assembled Base (4 Section) | 3.DMx.04

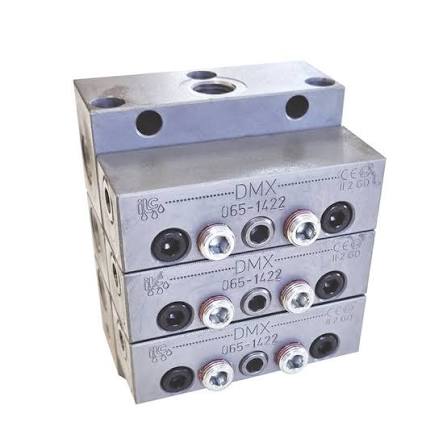

Alemlube DMX Pre-Assembled Base – 4 Section | 3.DMX.04 The Alemlube 3.DMX.04 DMX Pre-Assembled Base is a 4-section base assembly designed for DMX progressive modular divider systems. It forms the mounting and connection platform for DMX metering elements,... Read More
Vendor: Alemlube
SKU: 3.DMX.04
Product type: Assembled Base
$286.88
$0.00
$286.88
Subtotal: $286.88

On Time, Every Time

Reliable delivery guaranteed.

Secure Payments

Shop with confidence.

100% Happiness Guarantee

Only at Industrial Shed.
Description

Alemlube DMX Pre-Assembled Base – 4 Section | 3.DMX.04

The Alemlube 3.DMX.04 DMX Pre-Assembled Base is a 4-section base assembly designed for DMX progressive modular divider systems. It forms the mounting and connection platform for DMX metering elements, allowing oil or grease to be distributed accurately across multiple lubrication points.

Key Features

  • 4-section pre-assembled base for Alemlube DMX modular divider systems
  • Designed for progressive oil and grease lubrication distribution
  • Allows metering elements to be installed after base mounting and tube tracking
  • Modular design supports easier system servicing and component replacement
  • Suitable for automatic lubrication systems on plant, machinery, mobile equipment, and industrial applications

Technical Specifications

  • Type: DMX Pre-Assembled Base
  • Part No.: 3.DMX.04
  • System: Alemlube DMX Progressive Modular Distributor
  • Base Configuration: 4 Section
  • Working Pressure: Minimum 15 bar / Maximum 5,800psi (400 bar)
  • Lubricants: Mineral oil minimum 15 cSt at working temperature; grease up to NLGI-2 maximum
  • Working Temperature: -40°C to +120°C
  • Inlet: 1/4" BSP
  • Outlet: 1/8" BSP
  • Number of Elements: 3 to 20
  • Cycles: Maximum 500
  • Gasket: Viton 90sh O-ring
  • Material: Steel, Zn-Ni plated free of Cr-V, or SS316L
  • Protective Coating: Zinc-Nickel, 800 hour salt spray tested
  • Marking: ATEX II GD - CE
  • Base Tightening Torque: 8 Nm
  • Element Tightening Torque: 15 Nm
  • Brand: Alemlube

Why Tradies Buy This

This pre-assembled 4-section base gives technicians a reliable foundation for building a DMX lubrication divider setup. It saves time during installation, supports accurate tube tracking, and keeps the system modular for easier servicing down the track.

Why Choose Alemlube at Industrial Shed

  • Built for Automatic Lubrication: Designed for accurate oil and grease distribution
  • Modular Serviceability: Supports easier repairs, expansion, and replacement
  • Industrial Ready: High-pressure rated for demanding machinery applications
  • Trade Support: Backed by Industrial Shed for reliable supply and service

► Stock won’t last — get yours now at Industrial Shed!
